512 and 256 Channels Multi-Channel Lithium Ion Cylindrical Cell Battery Capacity Tester Machine 5V3A 6A 10A
This cylindrical cell battery tester has multi-channel for choice, like 512 channels and 256 channels, 5V3A, 5V6A and 5V10A are available.
Item No.: JT-BT512-256-Tester
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This cylindrical cell battery tester has multi-channel for choice, like 512 channels and 256 channels, 5V3A, 5V6A and 5V10A are available. Also the channels can be customized according to customer requirements, and the current and voltage are unified, this battery tester is suitable for mass production.
Features
1. Each channel can be started and stopped at a single point, and the response speed is fast.
2. The operation is simple, convenient and intuitive
3. Modular design, easy to maintain.
4. The digital current and voltage automatic calibration function
5. Using network connection and SQL database
6. The hardware technology is advanced, stable and durable.
Specification 1
*Voltage and current: 5V/2A; 5V/3A; 5V/5A; 5V/6A; 5V/10A etc
*Channels: 96,128,256,512,768 or others.
*Battery type: Cylindrical cell
*Support battery height: Adjustable within 10-100mm range
*Working power: Three-phase five-wire system AC380V±10%, 50HZ
*Voltage measuring range 0-5V, 1MV resolution
*Battery voltage range: Charge: 0-4.5V; Discharge: 4.5-2V
*Constant voltage range 2.5V-4.5V
Specification 2
| Working power | Three-phase five-wire system AC380V±10%, 50HZ |
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% |
| Heat-dissipating method | Take in the wind naturally and exhaust it upward |
| Channel Parameter | |
| Voltage measuring range | 0-5V, 1MV resolution |
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V |
| Constant voltage range | 2.5V-4.5V |
| voltage accuracy | ±(1‰ reading +1‰ full) |
| Current accuracy | ±(1‰ reading +1‰ full) |
| Software Function | |
| Control mode | Computer connection equipment work, FCL control |
| Communication mode | RS485 baud rate 57,600 |
| Process set | A maximum of 32 work steps and 256 cycles are set |
| Charging mode | Constant current, constant pressure |
| Charging cutoff condition | Voltage, current, time, capacity |
| Discharge | constant current |
| Discharge cut-off condition | Voltage, time, capacity |
| Defensive function | Overvoltage, Undervoltage, overcurrent, undercurrent, overcapacity, etc |
| Time range | Set it anywhere from 0 to 30,000 minutes |
| Time accuracy | ≤±1‰ |
| Sampling inspection period | ≤8S |
| Minimum frequency of data recording | ≤8S |
| Battery sorting | By capacity, time, discharge platform, etc |
| Data processing | Data, graphs, and loop diagrams |

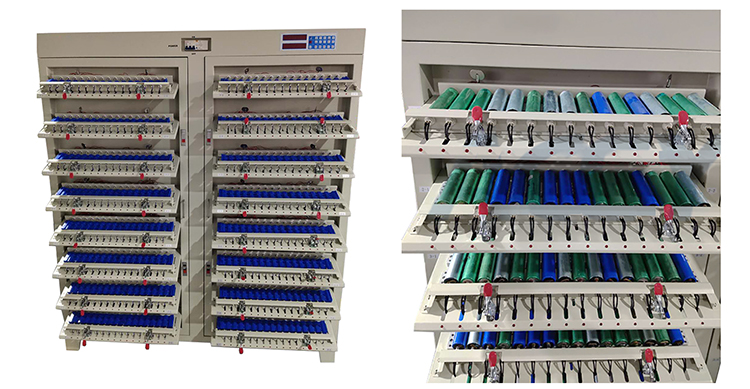

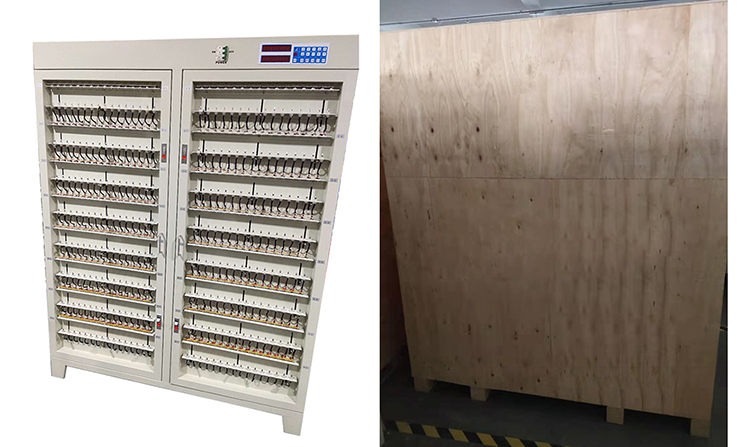

Product Image
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
This cylindrical cell battery tester has multi-channel for choice, like 512 channels and 256 channels, 5V3A, 5V6A and 5V10A are available.
Each device can carry out constant current and constant voltage charging and constant current discharge test on 512 batteries meeting the voltage range.
