Pouch Cell Assembly Machine Polymer Battery Lab Research Line
Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.
Item No.: Pouch Cell R&D Line
Brand: Jingtongsy
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Pouch Cell Lab Pilot Assembly Machine Line for Pouch Battery Preparation Battery Manufacturing Equipment

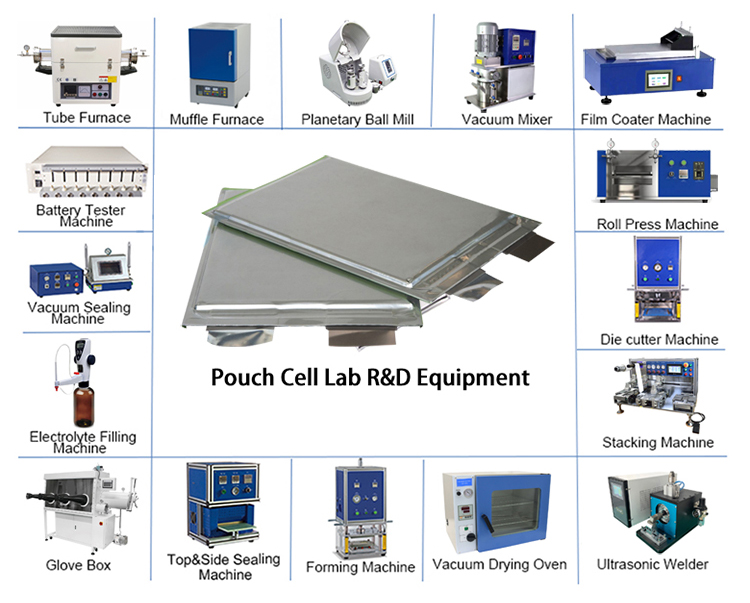

Jingtong Battery Equipments offers the full set of pouch cell battery-producing equipment from mixing to last testing equipment, Including the ball mill, vacuum mixer, electrode coating machine, rolling press machine, electrode die cutter, battery stacking machine, ultrasonic spot welder, pouch forming machine, top&side heat sealer, electrolyte diffusion chamber and filler, secondary vacuum heat sealer, edge cutting machine, edge folding machine, edge hotting machine and battery tester.
Description
(Click the product name to view more detail)
| Item | Processing | Product Name | Product Image |

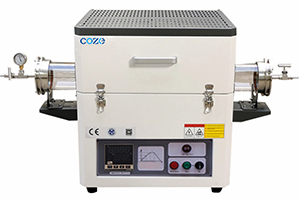

| 1 | Powder processing | Muffle Furnace/Tube Furnace |  |

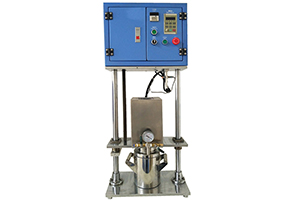

| 2 | Slurry vacuum mixing | Vacuum Mixer |  |

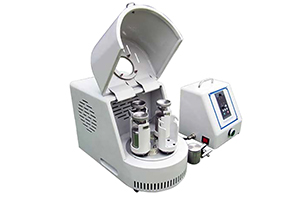

| 3 | Milling | Ball Mill |  |

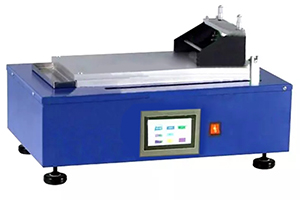

| 4 | Electrode Coating | Electrode Coating Machine |  |

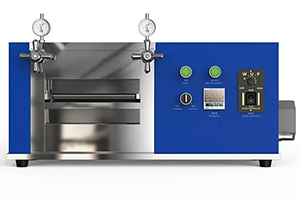

| 5 | Electrode Pressing | Roller Press Machine |  |
| 6 | Electrode Cutting | Electrode Die Cutter |  |
| 7 | Electrode Stacking | Electrode Stacking Machine |  |

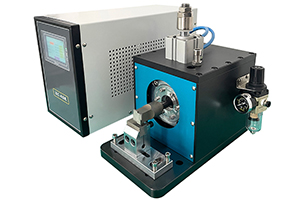

| 8 | Tab Welding | Ultrasonic Welding Machine |  |
| 9 | Case Forming | Pouch Cell Case/Cup Forming Machine |  |
| 10 | Top&side sealing | Heat Sealer for Top and Side Sealing |  |
| 11 | Electrolyte Injection | Electrolyte Filling Machine |  |
| 12 | Electrolyte Diffusion & Degassing | Electrolyte Diffusion & Degassing Chamber |  |
| 13 | Vacuum Sealing | Vacuum Sealing Machine |  |
| 14 | Battery Performance Testing | 8 Channel Battery Cell Tester |  |
We also provide the one-stop solution for coin cell and pouch cell laboratory R&D machines.
1. Coin Cell Assembly Equipment Battery Pilot Line

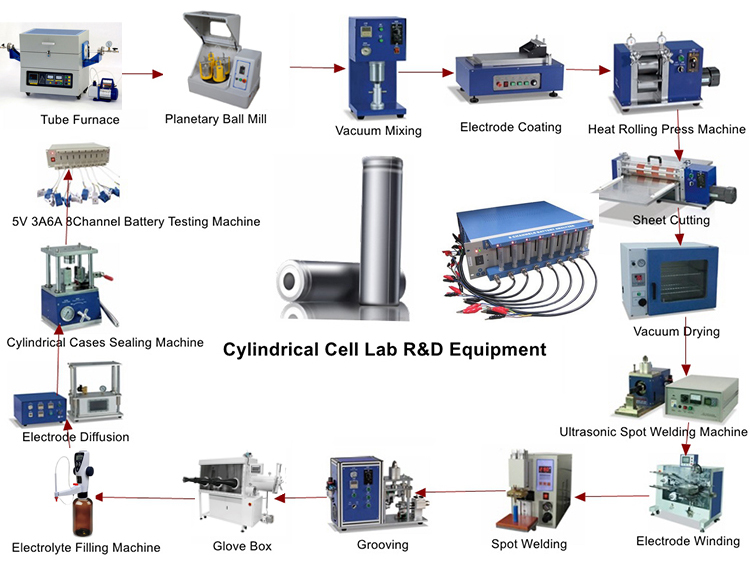

2. Cylindrical Battery Lab R&D Equipment
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.
Jingtong Battery Equipments offers the full set of pouch cell battery producing equipment from mixing to last testing equipment, Including the ball mill, vacuum mixer, electrode coating machine, rolling press machine, electrode die cutter, battery stacking machine, ultrasonic spot welder, pouch forming machine, top&side heat sealer, electrolyte diffusion chamber and filler, secondary vacuum heat sealer, edge cutting machine, edge folding machine, edge hotting machine and battery tester.

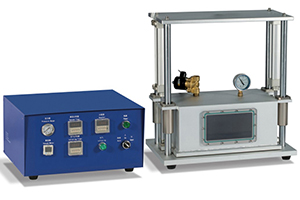

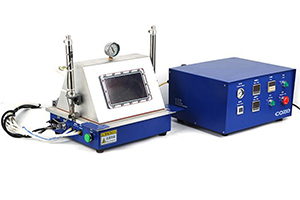

This Pouch Cell Benchtop Heating Vacuum Sealer is mainly used for vacuum hot sealing after electrolyte diffusion of pouch cell Li-ion batteries(medium, small size).

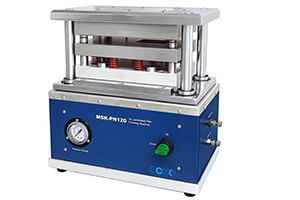

The JT-MSK-PN120 is a compact gas-driven aluminum laminated films pouch case forming machine for pouch cell fabrication laboratory, which fits the electrodes cut by MSK-180S electrode cutting machine.

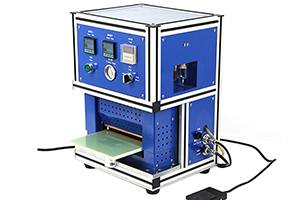

The Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
Jingtong Industry can provide custom pouch cell case-forming services according to your requirement.We also provide customer services according to your requirements to design the new pouch die, but you need to pay for the die sinking cost.

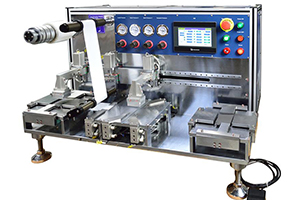

The MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking.

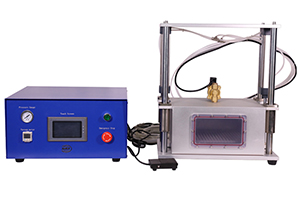

The lab pouch cell vacuum heat sealer is mainly suitable for vacuuming and hot-pressing pre-encapsulation of soft-packaged lithium batteries after liquid injection and standing.
This battery edge cutting machine is mainly used for lithium polymer battery aluminum laminated film trimming molding, and it can also be used for cutting off other soft materials.

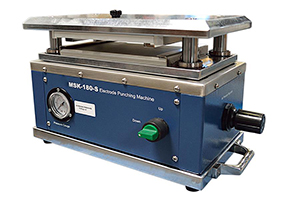

This die-cutting machine is suitable for die-cutting and forming of battery positive and negative plates. The single-piece die-cutting of the plate-type pole piece is pneumatically used, and it can be placed in a glove box for use.
Aluminum Laminated Film for Polymer Battery Case Thickness 122um
Aluminum Laminated Film for Pouch Cell Case is used as casing material for polymer Li-Ion batteries.
152um Aluminum Laminated Film for Power Polymer Lithium Ion Battery Pouch Cell Case
This battery edge cutting machine is mainly used for lithium polymer battery aluminum laminated film trimming molding, and it can also be used for cutting off other soft materials.

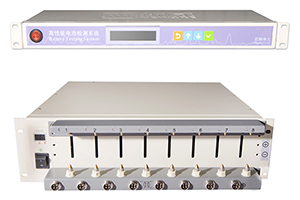

The 5V6A lithium battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 0.1 mA to 6000 mA, up to 5V.
