Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: ALF-113-A
Compliance: CE Certified
Order (MOQ): 1 Roll
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

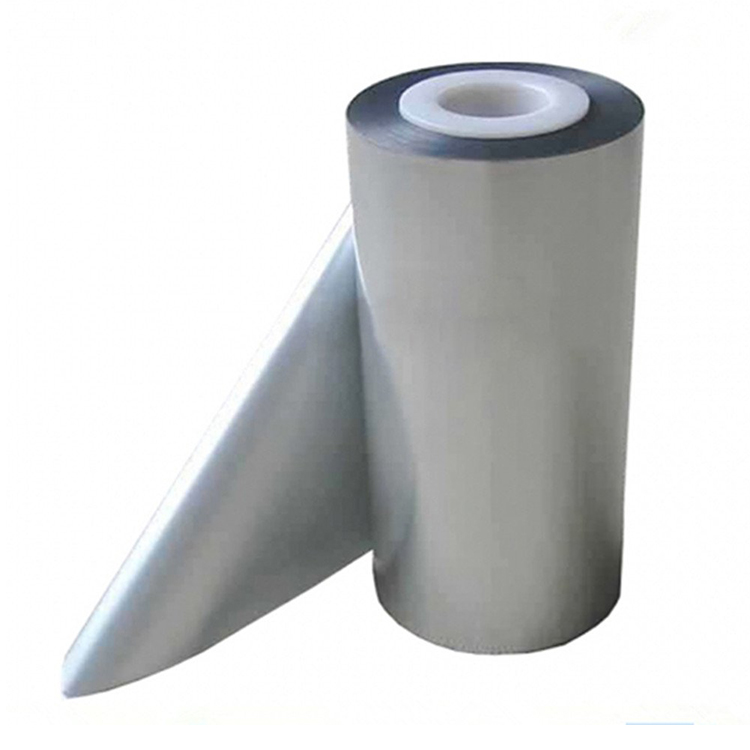

Thickness: 113 μm, Width: 400 mm, Length: 10 m.
Also, we can supply aluminum laminated cases in customized sizes.
Technical Properties
Layers from outside (Shiny) to the inside (Mat) | Polyamide (JIS Z1714): 0.025mm (+-0.0025mm) |
Thickness | 113 μm |
Width | 400 mm |
Length | 10 m |
Surface quality | Mat finish |
Pinholes | Subject to the applicable aluminum foil standard |
Impurity | 1 mm or less in diameter |
Fish Eye | 2 mm or less in diameter (clear),1 mm or less in diameter (colored) |
Molding Depth | ≥5.0 mm |
Electrical Insulating | Good |
Hot Sealing Condition | 180-190°C |
Moisture Vapor / O2 Transmission Rate | 200 ppm / 5 years |
Laminate Strength | Nylon/Al more than 2N/15mm Al/CPP more than 5N/15mm |
Heat Seal Strength | More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by TOB heat sealing |
Solvent Retention | Less than 5mg/m2 |
Appearance | Within the sample of the limit |
Slip Factor | CPP/CPP less than 1.0 |
Applications
Aluminum Laminated Film for Pouch Cell Case is used as casing material for polymer Li-Ion batteries.
