Item No.: JT-PPD
Compliance: CE Certified
Order (MOQ): 1
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

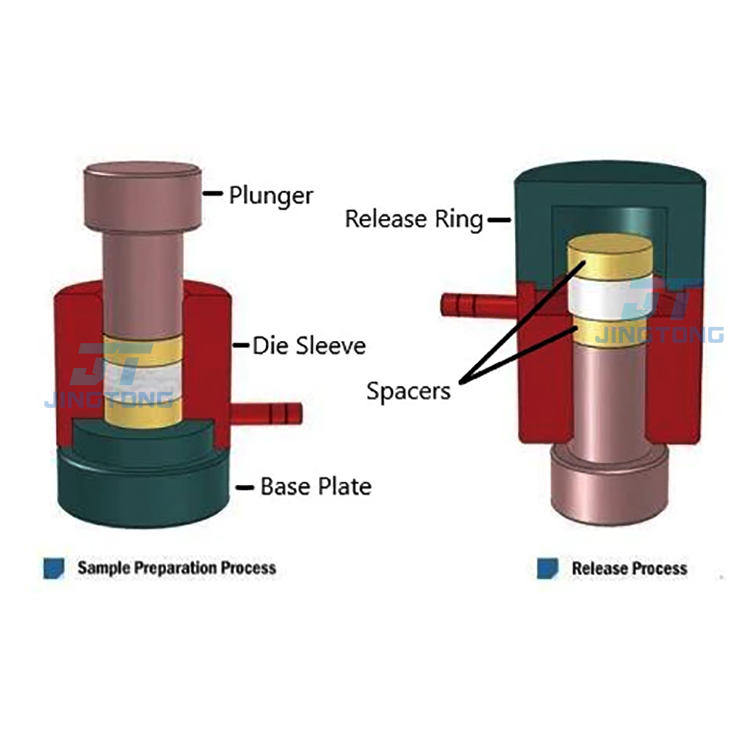

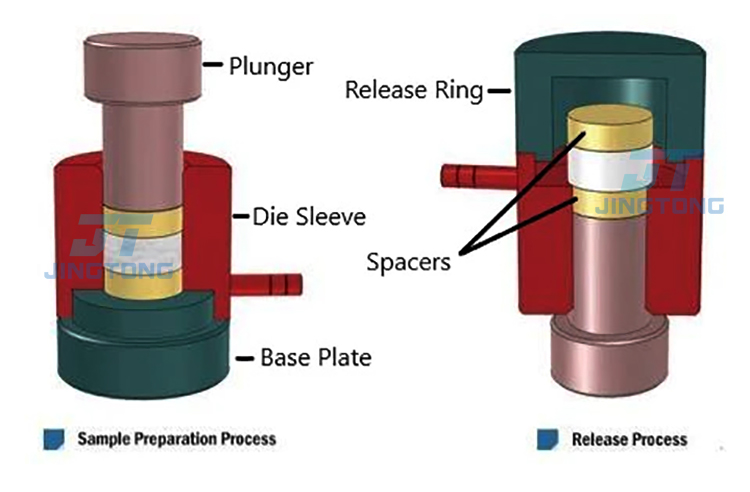

The dry pellet pressing die cylindrical mold is a common tablet-pressing mold in the laboratory powder sample pressure molding, which is suitable for the molding and testing of most powder samples in the laboratory.
The mold is exquisite in workmanship, reasonable in design and convenient in operation. With the use of a tablet press, powder sample materials can be pressed into shapes, such as circular sheets, cylinders, etc. The sample size depends on the mold size ordered by users.
The mold is widely used in batteries, superconductors, cement, ceramics, catalysis, silicate, powder metallurgy, sea mud analysis, biochemical analysis and new material sample preparation research and development. In addition, the product can also be used with calcium iron, infrared, X-ray fluorescence and other testing instruments.
Technical Properties
Actual drawing of molding sample |
| |||||||
Compressible sample shape | Circular sheet, cylinder, etc | |||||||

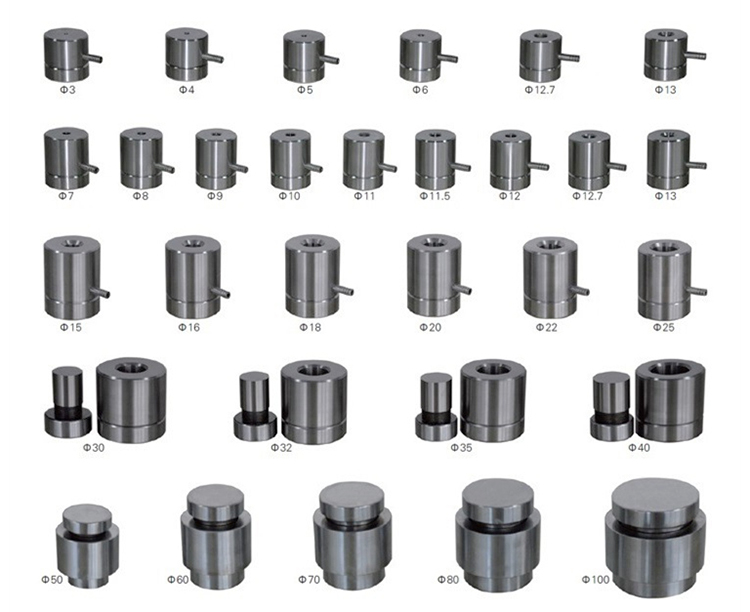

Common mold specifications | Φ3,Φ5,Φ6,Φ8,Φ10,Φ13,Φ15,Φ18,Φ20,Φ22,Φ25,Φ30,Φ32,Φ40mm | |||||||
Mold material | High-speed steel ASSAB+17 | Alloy tool steel:Cr12MoV | ||||||
Hardness of die indenter | HRC68-HRC70 | HRC60-HRC62 | ||||||
Sample size (≤) | φ6mm | φ13mm | φ25mm | φ40mm | φ50mm | φ60mm | φ70mm | φ80mm |
Mold cavity depth | 20mm | 30mm | 40mm | 45mm | 55mm | 60mm | 65mm | 65mm |
Mould dimensions | φ43×78mm | φ53×120mm | φ88×150mm | φ108×180mm | ||||
φ43×93mm | φ73×133mm | φ98×180mm | φ118×150mm | |||||
Mould weight | 0.55kg | 0.67kg | 1.34kg | 2.9kg | 5.1kg | 7.3kg | 9kg | 11.5kg |
Calculation formula of die pressure | Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! | |||||||
Mould remarks | Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold | |||||||
More Pellet Pressing Die Mold

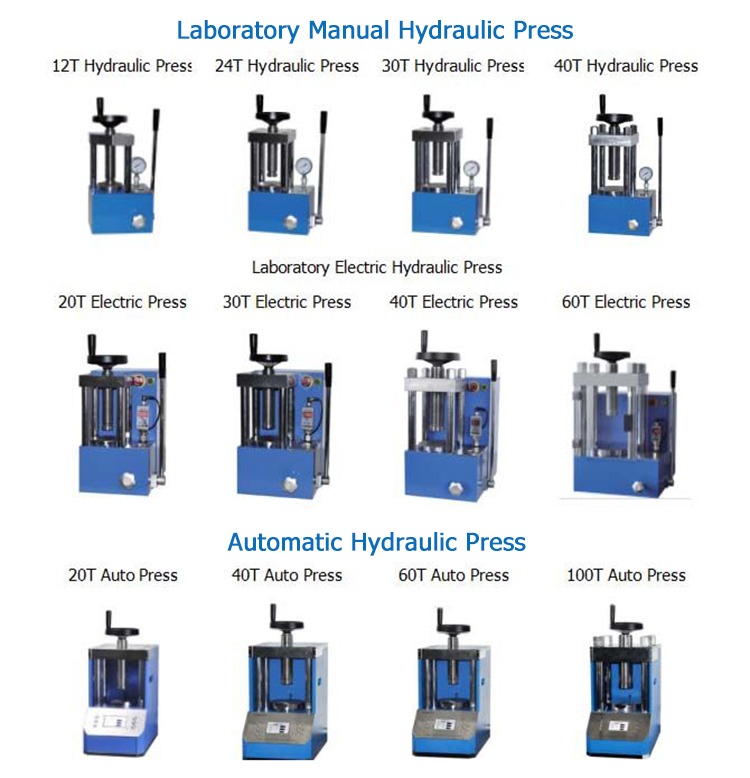

Manual and Automatic Hydraulic Press Machine
