Item No.: JT-HPM20
Compliance: CE Certified
Order (MOQ): 1
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Compared with manual hydraulic press, this bench-top automatic lab press machine offered by Jingtong Industry can set and automatically hold the designated pressure for up to 999m59s. The upper and lower pressure values can be programmed and automatically controlled by the press itself.
The pressure increase rate during pressing is also automatically controlled which will gradually reduce when approaching the designated pressure. With these features, this automatic lab press delivers better pressure control accuracy than the manual hydraulic press.
Automatic lab pellet presses are widely used to press powders for FTIR/XRF analysis, battery electrode materials, metallurgy, ceramic and catalysis applications.
Features
1. New type fully automatic, program pressurization, program pressure maintaining, automatic pressure relief, intuitive operation, beautiful appearance, etc., suitable for high-end laboratory use.
2. The automatic conversion display of mold pressure does not need manual conversion, so as to avoid the damage of mold due to operation error, and the operation is more humanized.
3. A limit protection switch is set to automatically relieve the pressure when the oil cylinder rises to the limit height, so as to avoid the damage of the machine and oil leakage caused by the over position of the oil cylinder.

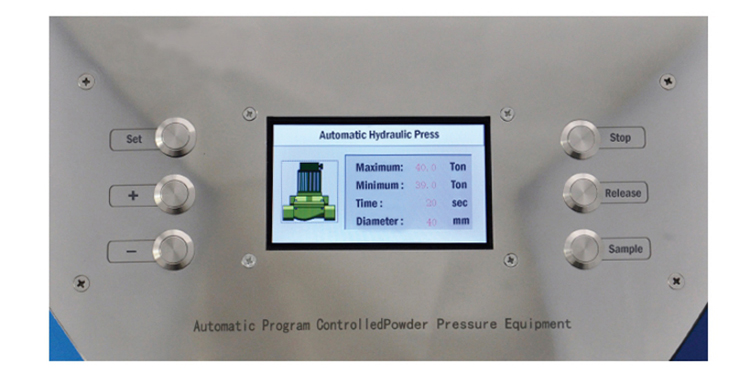

4. Large screen liquid crystal display, more intuitive operation, clearer display, convenient for user setting and operation.
Specification
Model | HPM-20TS | HPM-30TS | HPM-40TS | HPM-60TS | HPM-100TS |
Pressure range | 0-20T | 0-30T | 0-40T | 0-60T | 0-100T |
cylinder stroke | 40mm | 40mm | 50mm | 50mm | 50mm |
Display mode | 4.3-inch LCD | ||||
Pressurization process | Intelligent full-automatic, program slow pressure / pressure supplement - automatic pressure maintaining - timed pressure relief | ||||
Holding time | 0-999 seconds | ||||
Pressure conversion | Automatic conversion and display of die bearing pressure (MPA) program | ||||
Cylinder protection | When the oil cylinder rises to the limit height, the pressure will be released automatically, and the oil cylinder will be protected to prevent over position | ||||
Equipment protection | Steel plate protection, equipped with plexiglass protective door | ||||
Device power supply | 220V（50Hz/60Hz） | ||||
Workspace | 175×160mm | 175×160mm | 175×180mm | 185×220mm | 185×250mm |
Outline size | 280×460×530mm | 280×460×530mm | 280×460×550mm | 300×520×580mm | 330×580×620mm |
Machine weight | 140kg | 140kg | 150kg | 180kg | 240kg |

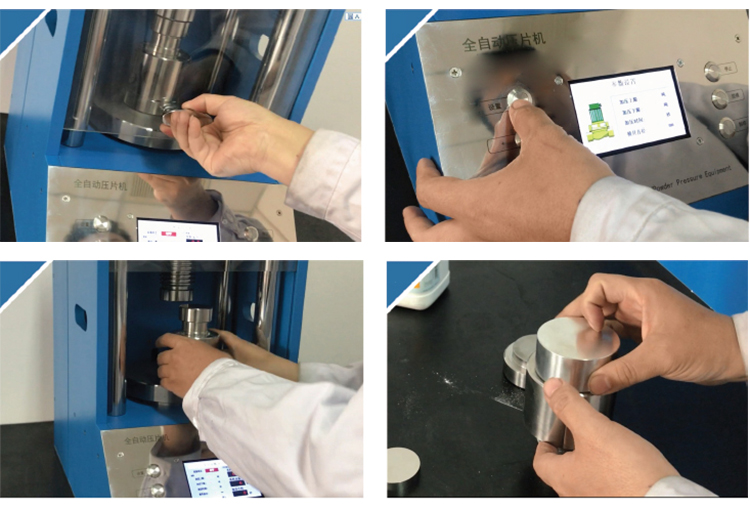

Detail

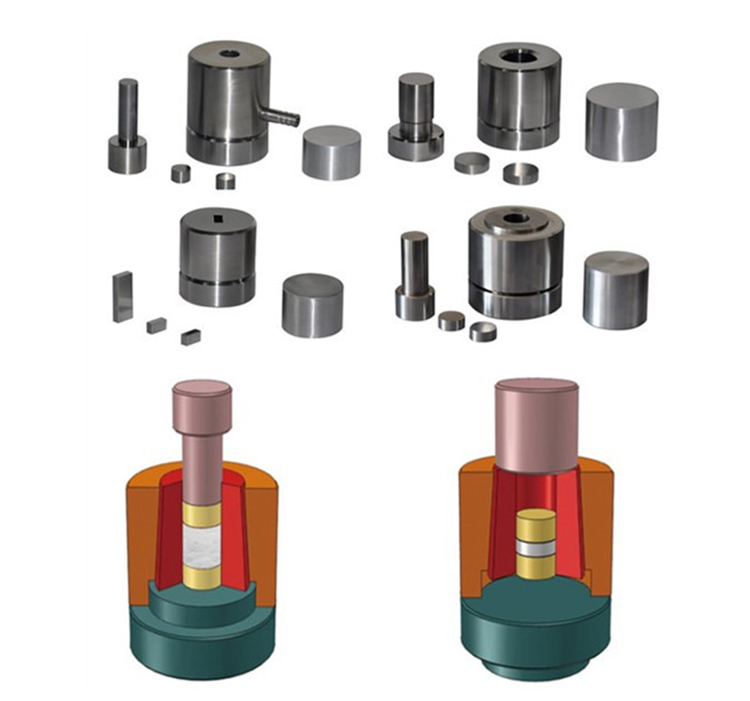

Pellet Pressing Die Mold
Package

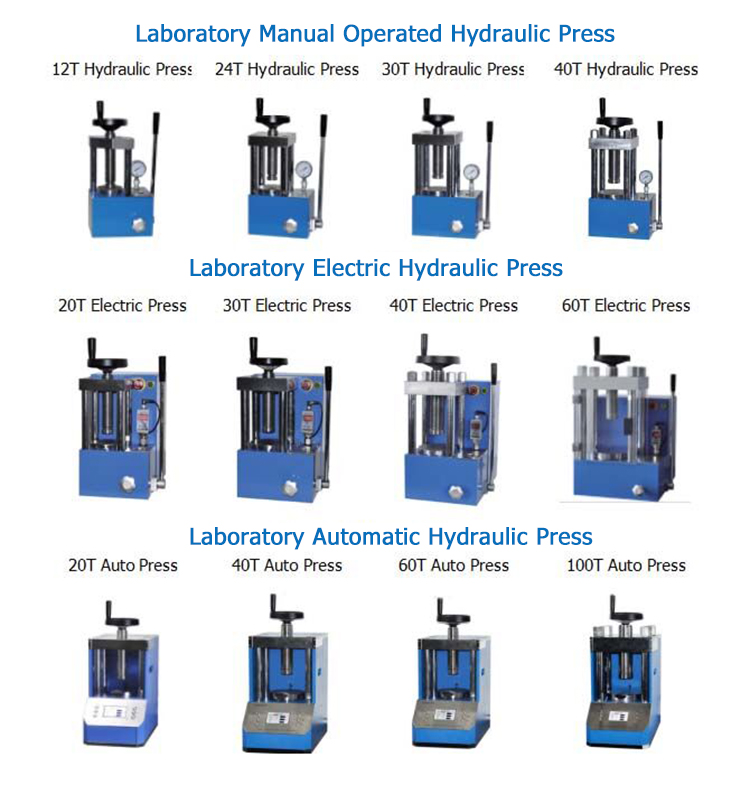

More Hydraulic Press Machine
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
Compared with manual hydraulic press, this bench-top automatic lab press machine offered by Jingtong Industry can set and automatically hold the designated pressure for up to 999m59s. The upper and lower pressure values can be programmed and automatically controlled by the press itself.
This lab coin cell crimper can be used for most kinds of button battery automatic crimping. Standard configuration is used for assembling and disassembling CR20XX series coin cell cases.
The cylindrical battery grooving machine is suitable for uniform and automatic rolling grooves of cylindrical steel shells (or capacitor aluminum shells) equipped with batteries.

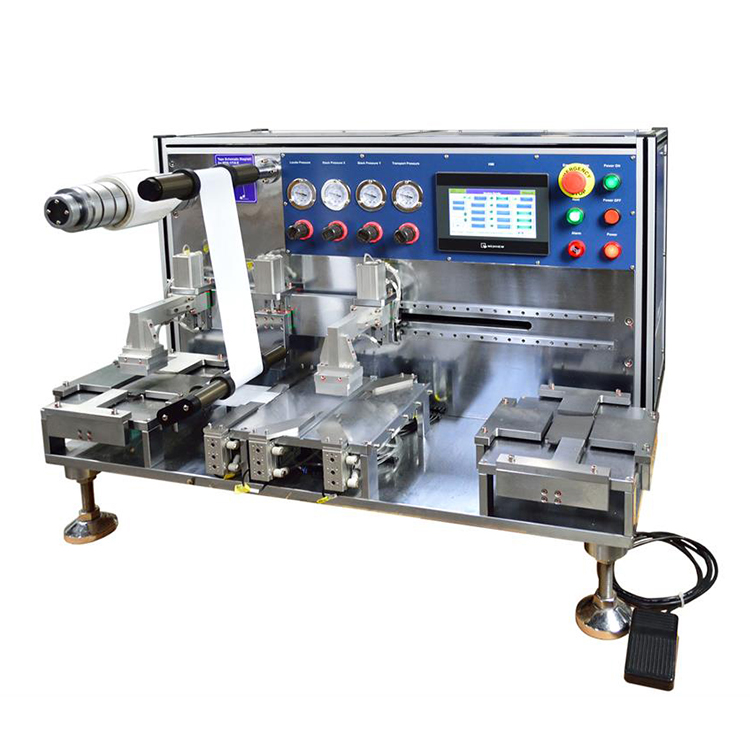

The MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking.
This digital electrolyte filler is the new generation bottle top burette & dispenser. It has a number of innovative features and upgrades for performing more accurate and convenient titrations.
The lab roll-to-roll electrode film coating machine is a compact Roll to Roll continuous coater, designed for the continuous coating process of the positive and negative electrodes of lithium-ion batteries.

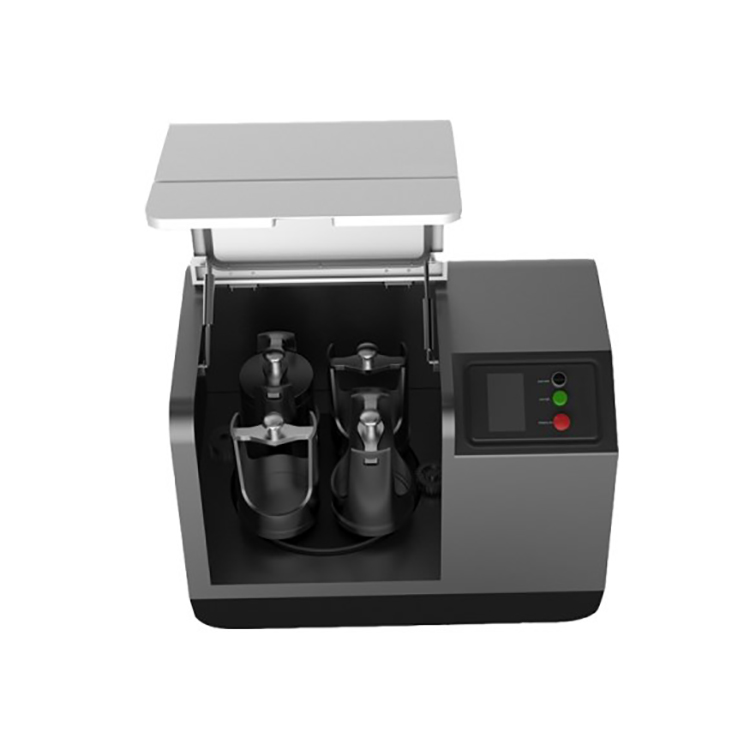

This laboratory 1L ball mill machine is the ideal equipment for R&D institutions, universities, enterprises' laboratories to get fine powder samples.

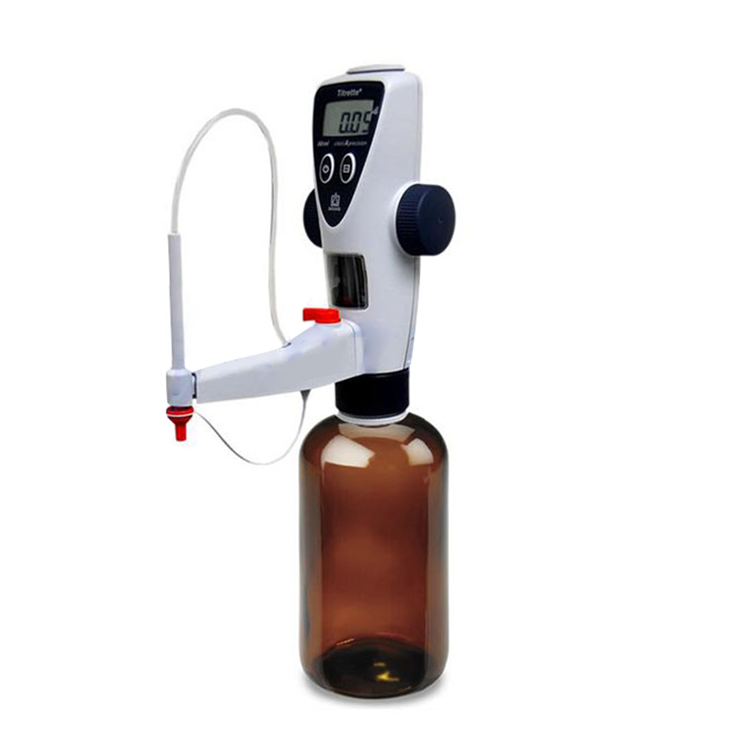

This Electrolyte Filling Machine is the new generation bottle top burette & dispenser. It has a number of innovative features and upgrades for performing more accurate and convenient titrations.

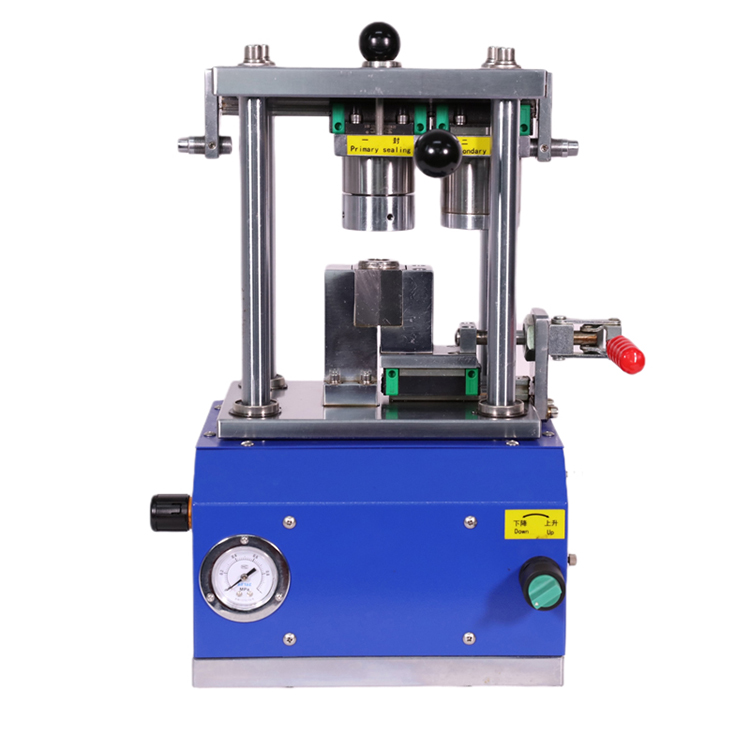

The JT-ACS-50 pneumatic cylindrical battery sealing machine is used for various sizes of cylinder cells and supercapacitor sealing processes.
The 18650 cylindrical cell electrode winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors.
The JT-112A-EA is a semi-automatic winding machine for accurate assembly of single cylindrical cell cores (also known as “jelly roll”) of 18650, 21700 or 32650 cells.
This 18650 slitting machine is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrodes of cylinder batteries in R&D laboratories.
The lithium battery electrode slitting machine is a semi-automatic slitting machine for preparing electrodes of cylinder batteries and prismatic batteries in R&D laboratories and production lines.
This is a semi-automatic slitting machine for cylindrical battery electrode preparation.The electric slitting machine can be applied to the precision slitting process of lithium-ion battery positive and negative plates.

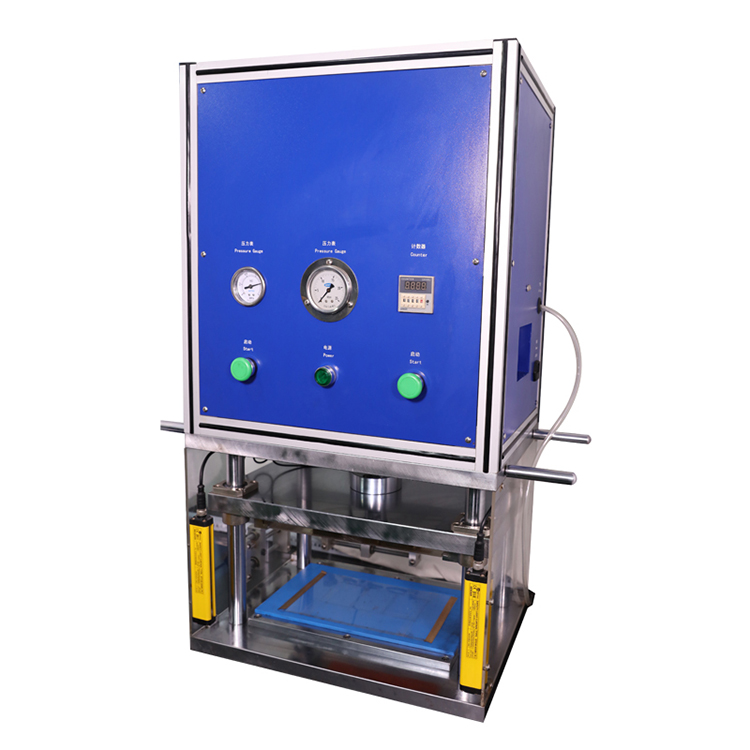

The Semi-automatic pouch cell die cutting machine is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery.
