Automatic Layer by Layer Battery Electrode Stacking Machine for Pouch Cell

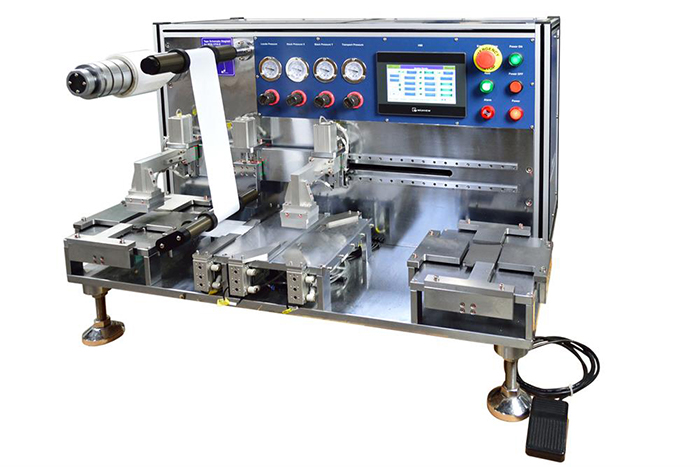

The MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking.
Item No.: JT-MSK-111A-E-1
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Automatic Layer by Layer Battery Electrode Stacking Machine for Pouch Cell
The MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking.
In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between.
Advanced Feature
1. PLC Touch Screen Control allows easy condition setting
2. Continuous "Z" fashion stacking with a separator
3. Auto electrode pick-up & stacking via vacuum suction manipulator
4. Adjustable mechanical fixture for accurate electrode positioning
5. Unreeling rotors for separator film feeding
6. Auto-tension control for separator film delivery
7. One set of 80x50mm stocking die fixtures are included for immediate use.
Specification
| Working Voltage | 208-240VAC, 50/60Hz, single phase. AC 110V version is available via a 2000W transformer. |
| Power | 1KW |
| Stackable Size | 200x150mm |
| Stackable Layers | Upto 500 layers |
| Max. Electrode Thickness | Piled up thickness < 30 mm |
| Aligning Accuracy | ±0.5 mm for stacked electrodes |
| Acceptable Separator Roll Size | I.D>3'' (76mm) O.D<9.8'' (250mm) |
| Stacking Fixture | One set of 200 x 150mm stacking die fixtures is included for immediate use. If you need different size electrode stacking, please inform us before ordering. We will make it for you at an extra cost. Allowable customization size: Max. 200mm x 200mm; Min. 80 mm x 50 mm |
| Vacuum Pump | An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator. |
| Suggested Air Pressure | 0.5 - 0.8 MPa (Air compressor is not included in the standard package. |
| Product Dimensions | Standard: 960 L x 680W x 690H (mm) The largest size: 1000L x 1000L x 690H (mm) |
| Weight | 500 kg |
| Compliance | CE Certified |
| Warranty | One-year limited warranty with lifetime support |
Product Image
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
The MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking.
This semi-auto stacker is suitable for the lamination process of battery cells. The positive and negative electrodes and the separator are laminated in a Z shape.
This semi-auto stacking machine is suitable for the lamination process of battery cells. The positive and negative electrodes and the separator are laminated in a Z shape.
This electrode battery stacking machine is suitable for the stacking process of pouch cells. Used for stacking battery cores that stack the anode/cathode and separator in a Z shape.
This electrode stacking machine is suitable for the stacking process of pouch cells. Used for stacking battery cores that stack the anode/cathode and separator in a Z shape. Stacking machine and control box integration, save space, easy to set parameters, easy to operate
The MSK-111A-E is a high-accuracy automatic battery stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking.
