Item No.: JT-ESM220B
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

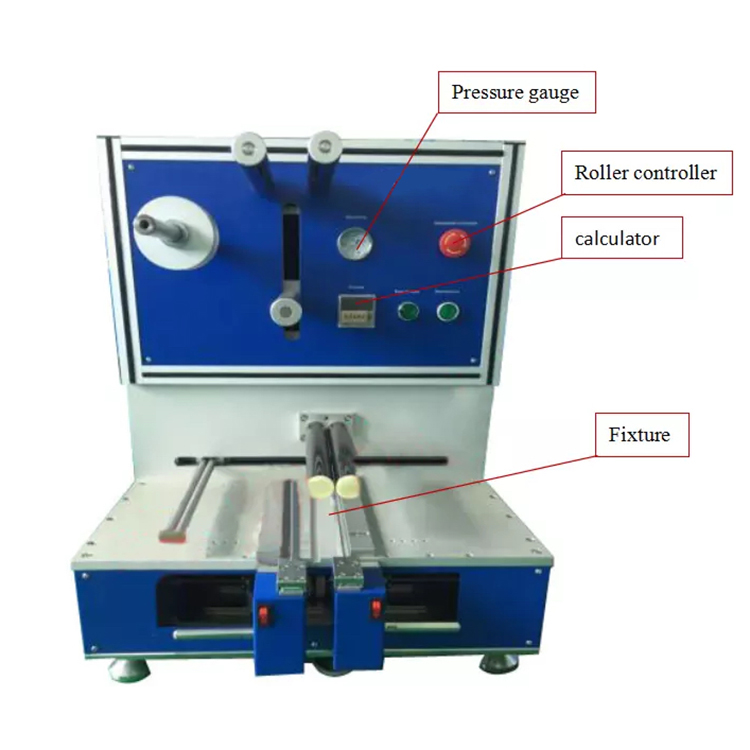

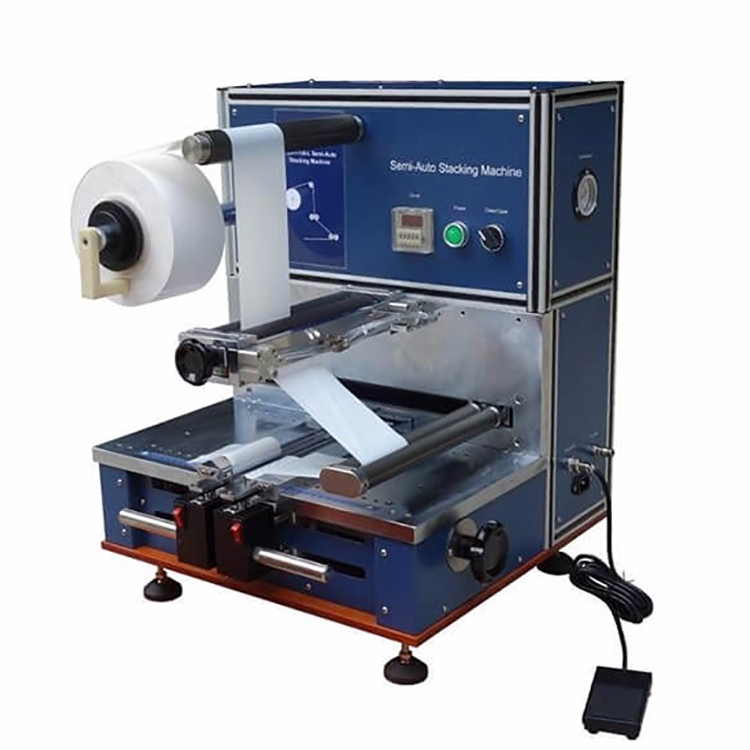

Semi-Automatic Battery Electrode Stacking Machine for Pouch Cell Stacker
This semi-auto stacker is suitable for the lamination process of battery cells. The positive and negative electrodes and the separator are laminated in a Z shape. It is a device that can be applied to the lamination process of lithium-ion battery pole pieces.
The electrode stacker adopts the isolation membrane automatic tension control system, the cylinder drives the diaphragm to move left and right to realize the zigzag lamination, and the cantilever design is easy to operate. Compared with the manual stacking machine, this equipment has the characteristics of high stacking efficiency, good stacking neatness, and a large range of applicable battery sizes. It is an ideal choice for R&D sample production and small batch trial production equipment.
Advanced Feature
1. The adjustment, operation and maintenance of the machine are simple and easy.
2. It can be used in a wide range of laminations.
3. Semi-automatic lamination and balance tension control system.
4. Automatic counting and zeroing function.
5. Automatically maintain the last parameter state function after power failure and non-use.
6. The whole machine is suitable for a wide range of battery sizes.
7. Use a foot switch to control cylinder action.
8. The adjustment, operation and maintenance of the machine are simple and easy.
9. High efficiency with digital timer.
10. Table type, can be placed on the ordinary desktop, exquisite and beautiful appearance.
Specification
| Item No | Semi-auto stacking machine JT-ESM220 |
Working Voltage | AC220V/110V 50/60Hz |
Power | 200W |
Applicable electrode size | 200mm x 150mm Max. 44mm x 44mm Min. Customizable to customer's request |
Max. battery core thickness | Piled up thickness<12mm |
Aligning accuracy | ±0.5mm |
Acceptable separator roll size | 220mm O.D Max. |
Slidable fixture | Two slidable fixtures ensure a compact, tight electrode stacking |
Electrode tongs | One electrode tongs are included for easy electrode pick-up |
Suggested Air Pressure | 0.4~0.6MPa (Air compressor is not included in the standard package) |
Product Dimensions | 480mm(L) x 560mm(W) x 650mm(H) |
Net Weight | About 50Kg |
Compliance | CE Certified |
Warranty | Two Years limited warranty with lifetime support |

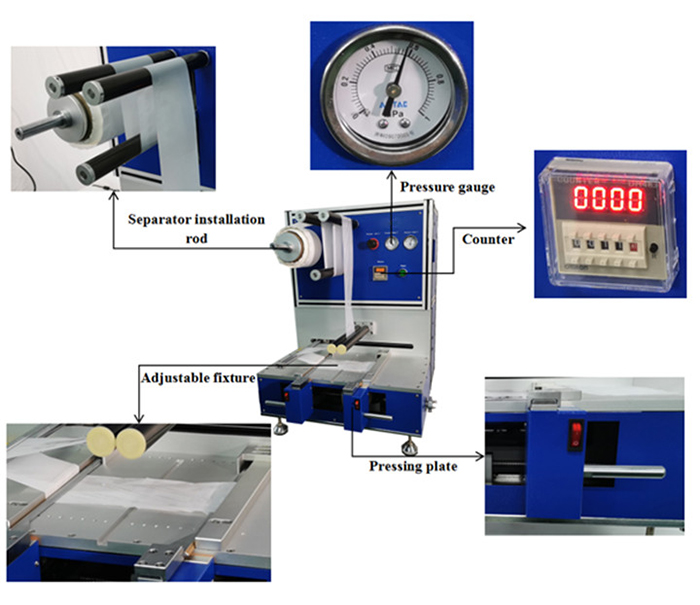

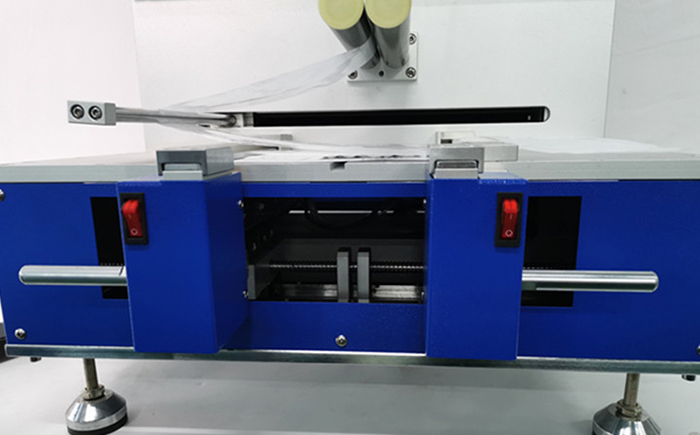

Product Image
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580

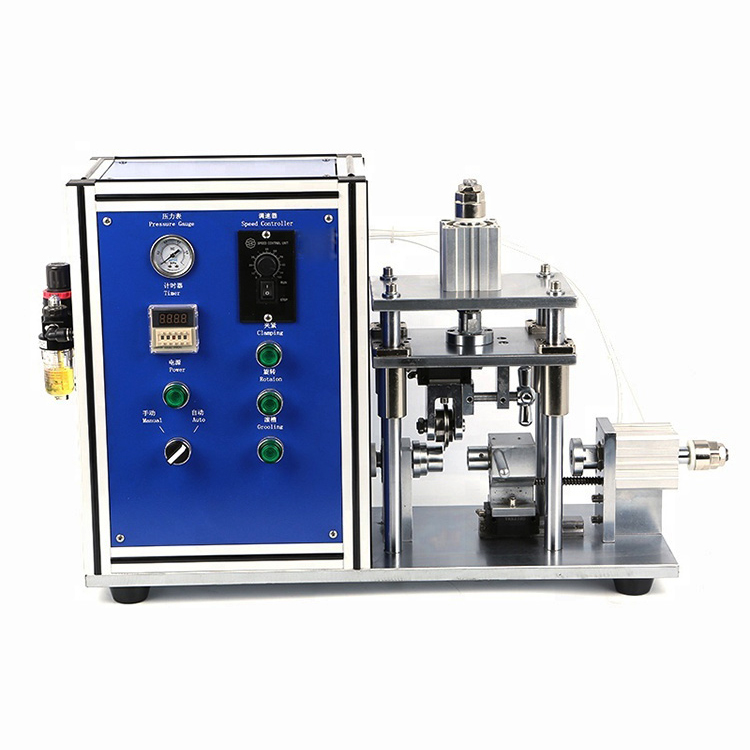

The cylindrical battery grooving machine is suitable for uniform and automatic rolling grooves of cylindrical steel shells (or capacitor aluminum shells) equipped with batteries.

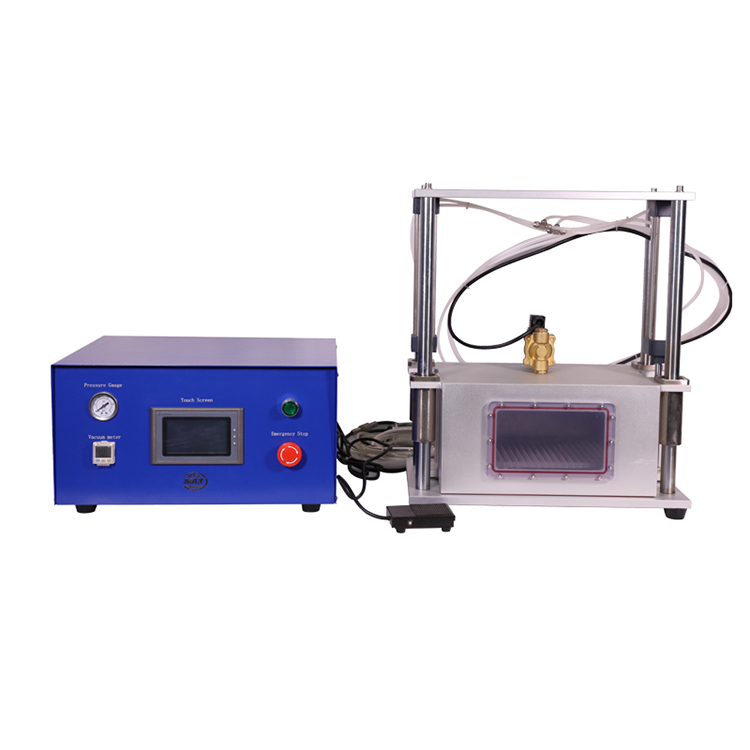

This battery electrolyte diffusion chamber vacuum standing box is specifically designed for professional Li-ion Battery Research.
The 18650 cylindrical cell electrode winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors.

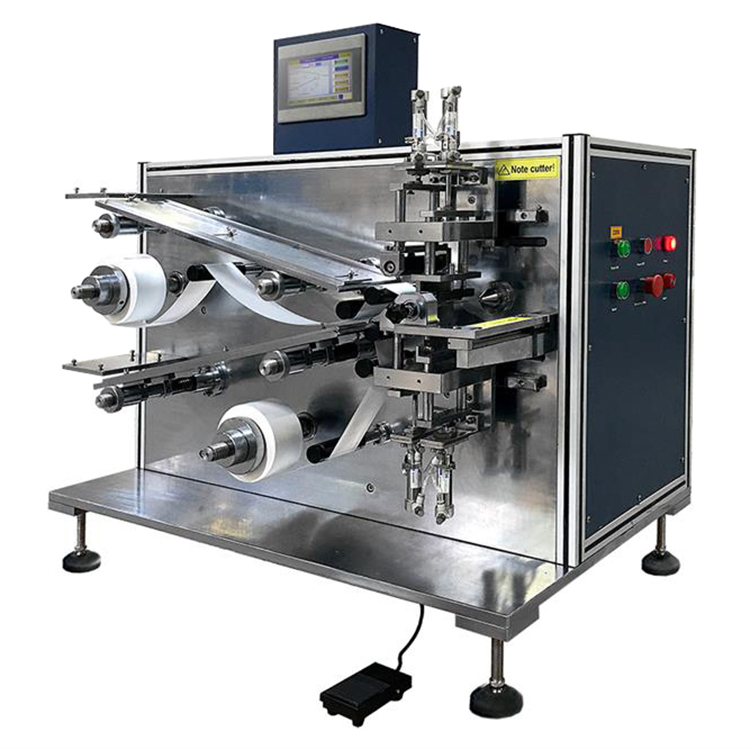

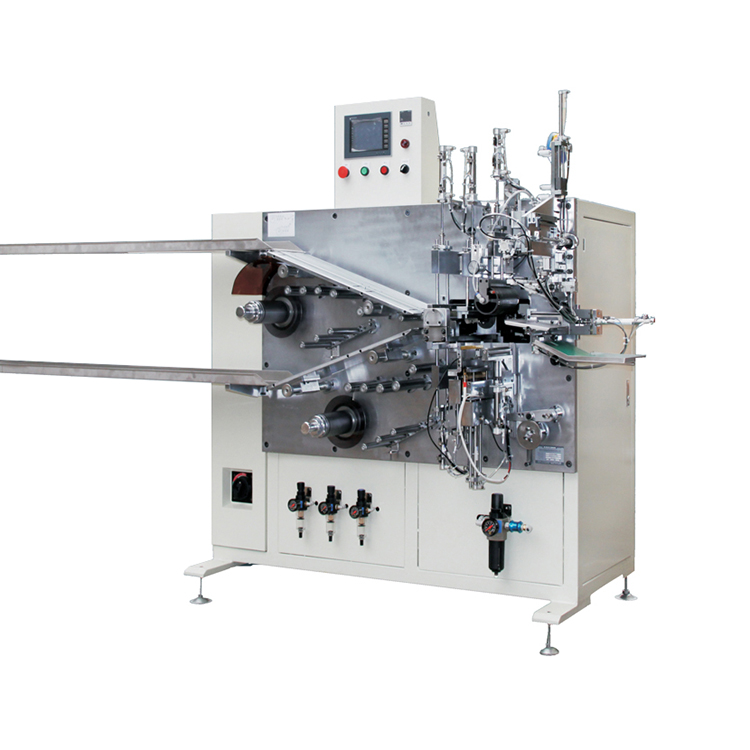

The JT-112A-EA is a semi-automatic winding machine for accurate assembly of single cylindrical cell cores (also known as “jelly roll”) of 18650, 21700 or 32650 cells.

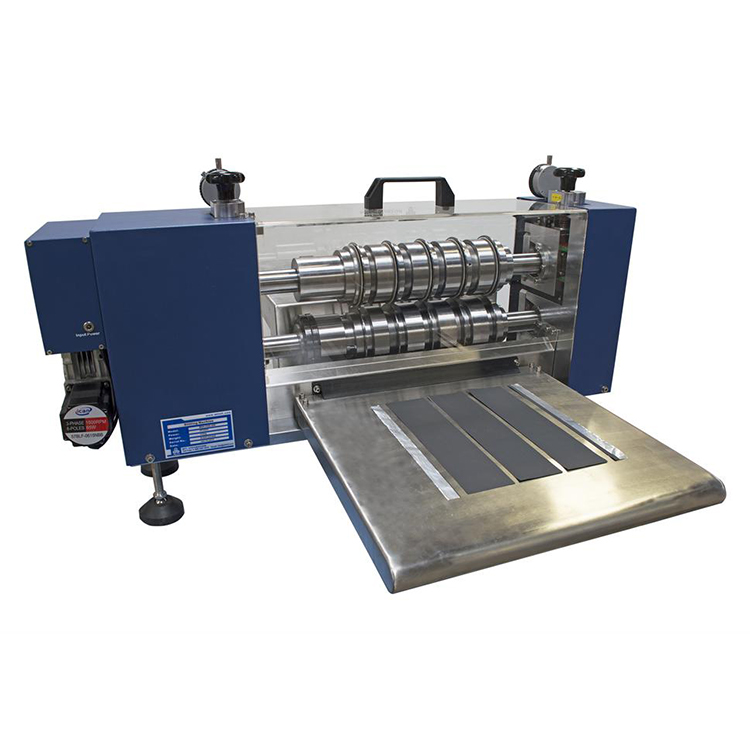

This 18650 slitting machine is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrodes of cylinder batteries in R&D laboratories.

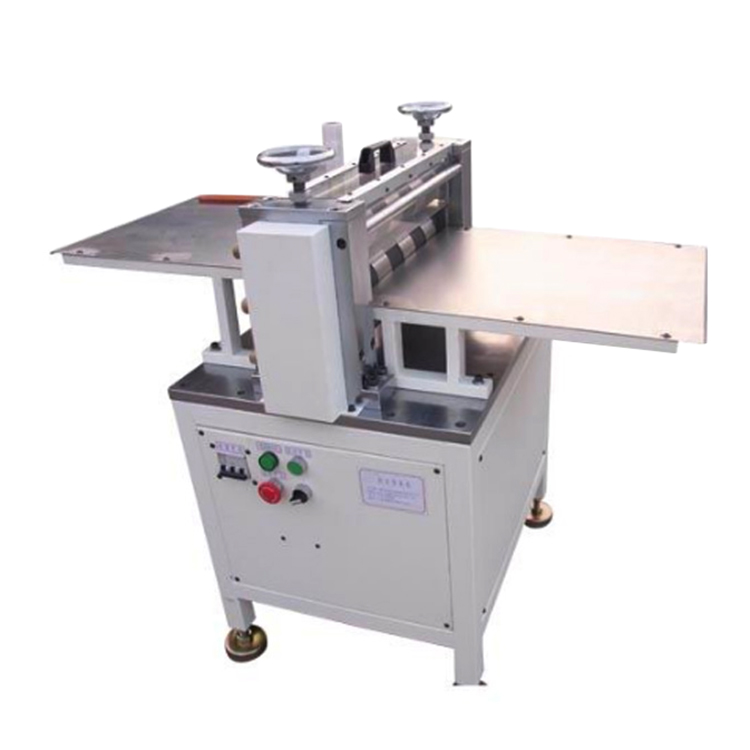

The lithium battery electrode slitting machine is a semi-automatic slitting machine for preparing electrodes of cylinder batteries and prismatic batteries in R&D laboratories and production lines.

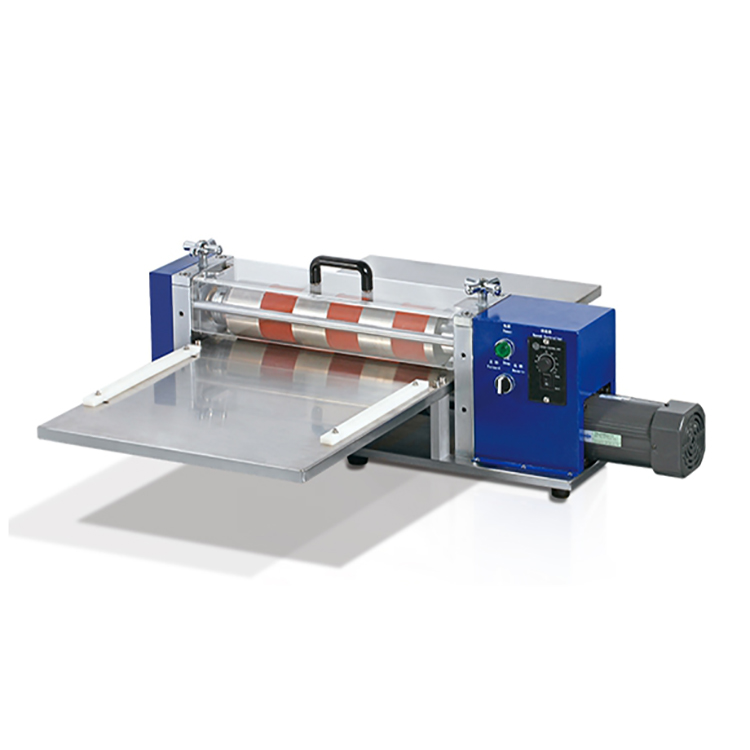

This is a semi-automatic slitting machine for cylindrical battery electrode preparation.The electric slitting machine can be applied to the precision slitting process of lithium-ion battery positive and negative plates.
This semi-auto stacker is suitable for the lamination process of battery cells. The positive and negative electrodes and the separator are laminated in a Z shape.

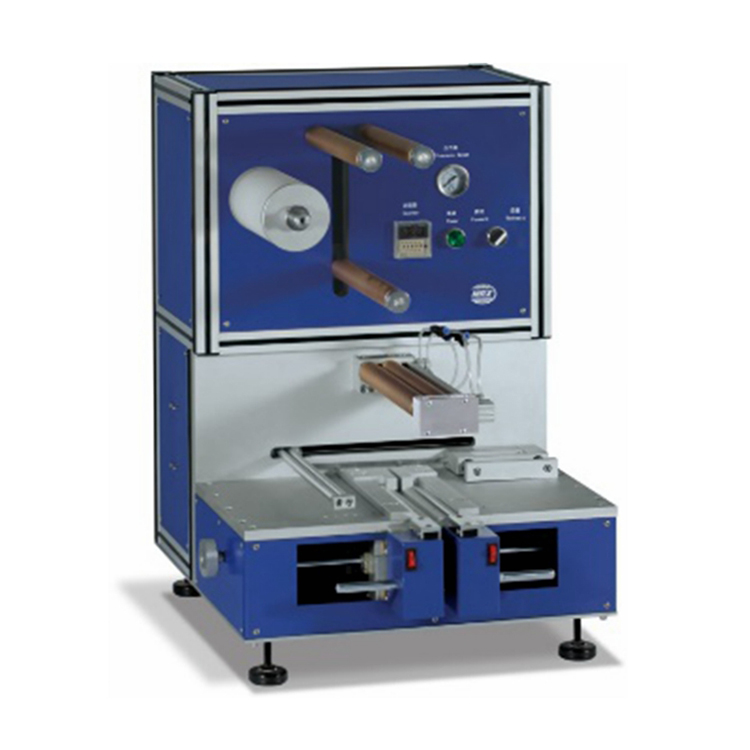

This semi-auto stacking machine is suitable for the lamination process of battery cells. The positive and negative electrodes and the separator are laminated in a Z shape.
