Vacuum Standing Box Electrolyte Filling Diffusion Machine for Lithium Battery Lab

Vacuum Standing Box Electrolyte Filling Diffusion Machine for Lithium Battery Lab

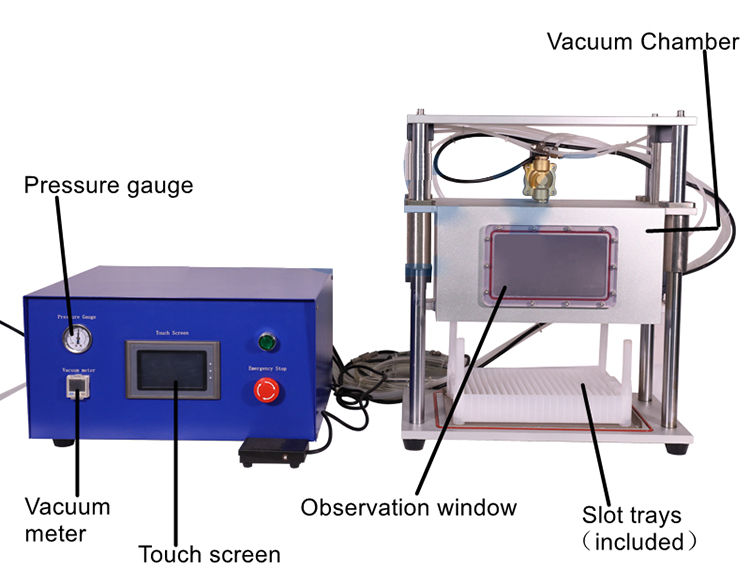

This vacuum standing box battery electrolyte diffusion chamber vacuum standing box is specifically designed for professional li-ion battery research.

It is mainly suitable for the equipment that absorbs the electrolyte when filling the soft pack battery and the cylindrical battery to make it more completely integrated with the electrode sheet in a vacuum environment.

The whole machine is made of high-quality electrical components and materials, suitable for batteries of various sizes, simple operation, and efficient production. It is also an ideal multifunctional experimental equipment for the laboratory.

Features
1. The vacuum remains stable. When holding, the vacuum is not much lower.
2. The product has a multi-stage cycle operation function. Helps the electrolyte to fuse more fully.
3. Through the perspective window, you can observe the changes in the cavity while working.
4. The upper cavity is driven by an air cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the product tightness requirements.
5. It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

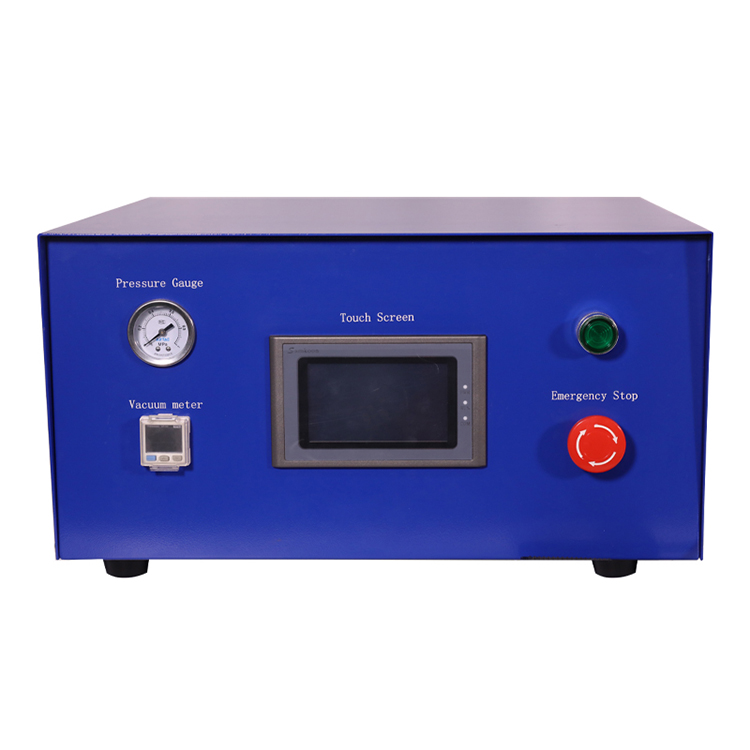

6. The main machine and the control box are separated design so that the machine can work in the glove box or on the assembly line.
7. Easy operation, beautiful appearance, small size and lightweight.
8. The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure;
9. Standing time can be set to 0-9999S, adjustable, and pressure adjustable;
10. Vacuum degree can reach above -95KPa (the buyer prepares the vacuum pump);
11. Good sealing performance, which can ensure that the air leakage in 1 minute does not exceed -1KPa

Specification

Product Image

Package
