Laboratory Electric Li-Ion Battery Electrode Roller Press Machine With Heating Function
The heating electric vertical roller press machine is mainly suitable for the electric rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum at a certain temperature. The rolling thickness is adjustable and the operation is simple.
This laboratory rolling press machine is especially suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials.
Features
1. Heating and rolling, the temperature is controlled by a thermostat, and the temperature is adjustable and displayed in numbers.
2. You can choose to work with or without heating.
3. The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
4. Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
5. High rolling precision, roller cylindricity ≤±2um.
6. Vertical design, convenient for feeding and rolling of strip material.
7. Adopt gear meshing rotation to realize the roller pressing.
8. appearance is exquisite and beautiful.
9. Electric rolling, forming automation, can be operation.
10. Small size, easy operation, flexible and quick to use.
Specification
Model No. | JT-HRP100 |
| Roller size | Diameter Φ96mmX100mm |
| Roller hardness | HRC62 |
| Roller finish | Ra 0.4 or more |
| Roll cylindricity ≤±2um | |
| Rolling thickness | 0～2mm, the gap can be adjusted |
| Heatable width | 100mm |
| Adjustable gap | 0～2mm |
| The thickness, speed and heating temperature can be adjusted. | |
| Roll placement | Vertical placement |
| Rolling temperature | Adjustable from room temperature to 130℃, digital display value |
| Temperature control accuracy | ±0.5℃ |
| Temperature resolution | 0.1℃ |
| Power source | voltage AC220V/50Hz, power 800W |
| Feeding speed | 0～40mm/s, speed can be adjusted |
Dimensions | L505mm*W225mm*H325mm |
| Equipment weight | 60KG |

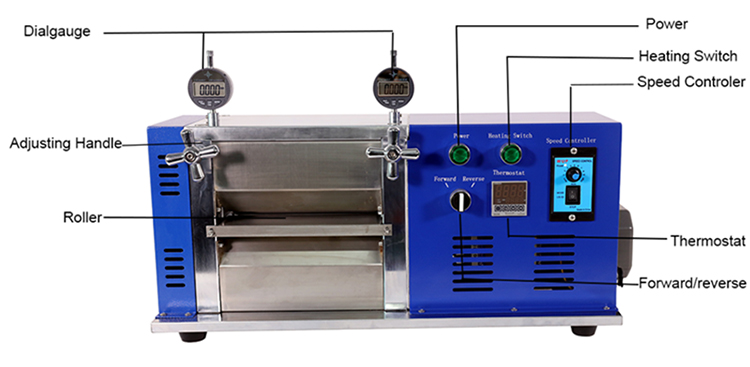

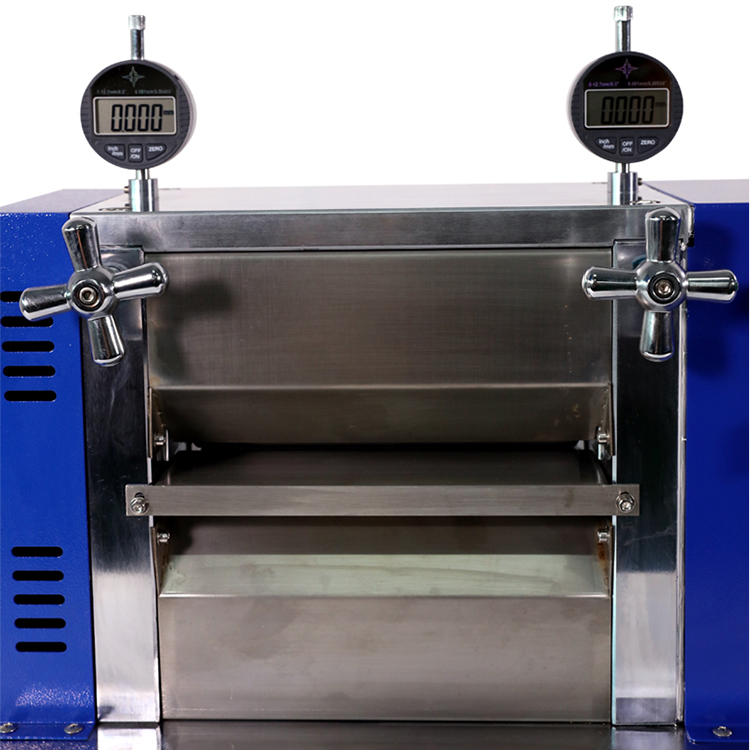

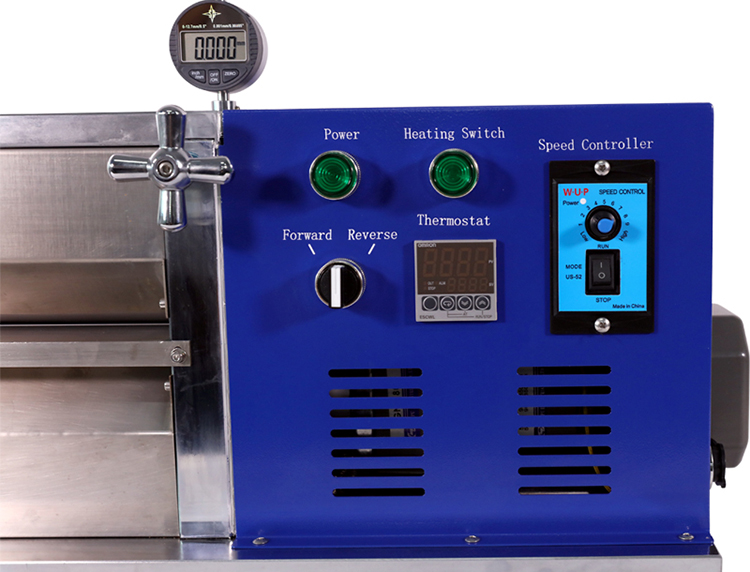

Detail Pictures
Accessories

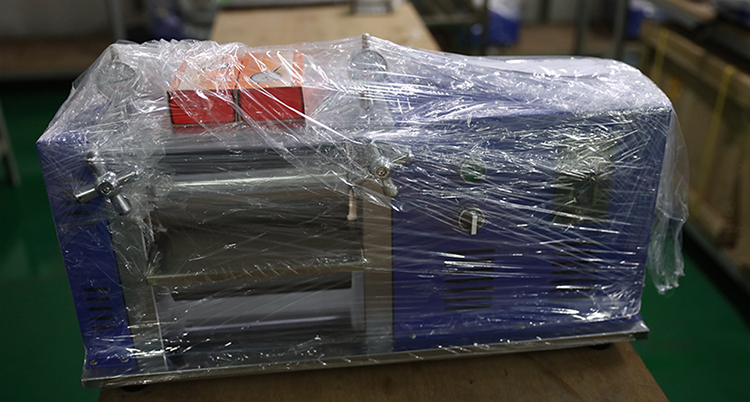

Packing
Other Type of Rolling Press Machine For Choose
 |  |
JT-ERP100L For 18650 Battery | JT-MRP100W Manual Horizontal Roller Press Machine For Cylindrical Battery |
 |  |
| JT-MRP100L Manual Rolling Press Machine | JT-HRP300 Electric Horizontal Rolling Press Machine |
