Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-SVS200-1
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This vacuum hot sealer machine is used for lithium pouch cell vacuuming and final heat sealing after the filling and electrolyte diffusion process. Hot compression packaging (medium and small size); simple battery final sealer.
Features
1. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;
2. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;

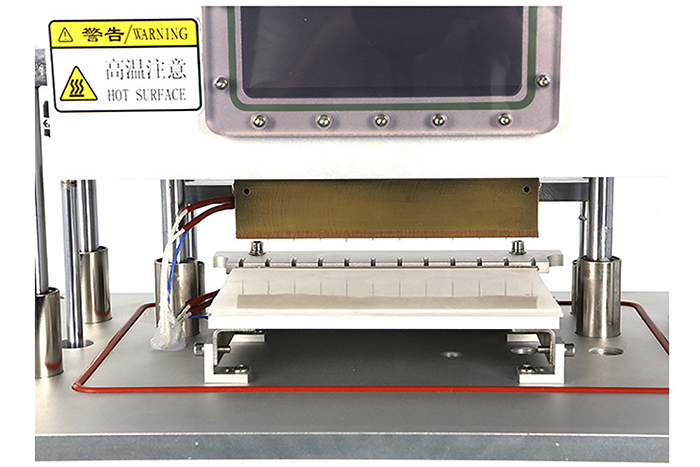

3. The lower and upper sealing heads are driven by cylinder through two linear-guide bushes that makes them move up and down flexibly and ensures the parallelism demand after sealing.
4. With automatic puncture function;
5. The cover cavity is driven by an air cylinder and guided by a linear guide sleeve, which can move up and down flexibly, and the guidance is accurate to ensure the product tightness requirements;
6. It can be applied to batteries of different specifications, and the adjustment is simple and convenient;
7. Simple operation, nice appearance, small size, lightweight.
Specification
Model | Vacuum Final Hot Sealing Machine for Pouch Cell |
Chamber material | The chamber is made from Aluminum alloy, non-corrosive |
Vacuum degree | ≤-95Kpa (Buyer prepares vacuum pump) |
Sealing head temp | RT-250℃, adjustable |
Temp accuracy | ±1.5℃ |
Heat sealing pressure | 0~7Kg/cm2 (adjustable) |
Heat sealing time | 0~99s adjustable |
Sealing width | 5mm, Can be customized |
Max sealing size | 200mm |
Sealing head flatness | Test by triple carbon carbonless paper set the head air pressure at 0.6MPa, the temperature at 200 degrees, and the extrusion of the seal evenly |
Air compressor working speed | ≥180 tims/h |
Power | 300W heating pipe, the power consumption is around 600W when heating. |
Power supply | AC220V/50Hz or Customized. |

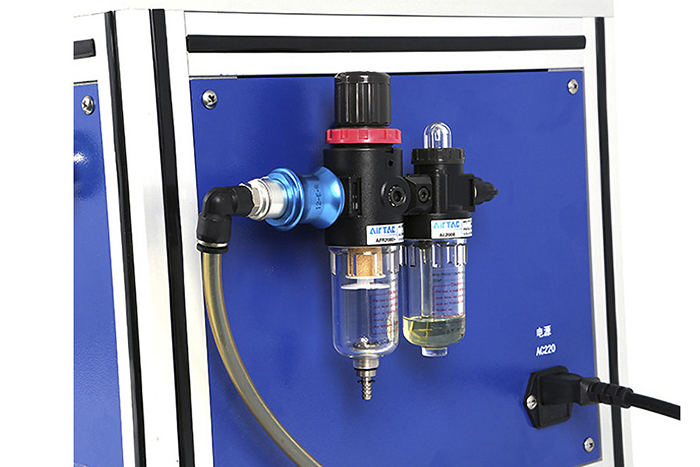

Compressed air | 0.5~0.7Mpa |
Max battery size | 200mm*180mm*15mm (Please contact us for large sizes) |
Dimension(L*W*H) | 515mm*350mm*505mm |
Weight | 56KG |
Detail
