Item No.: ALF-122-B
Compliance: CE Certified
Order (MOQ): 1 Roll
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Aluminum laminated film is one of the five major materials of lithium-ion batteries, and it is pouch lithium battery packaging material. The aluminum laminated film consists of an outer nylon layer/adhesive/intermediate aluminum foil/adhesive/internal heat seal layer.
Thickness: 113micron, 122micron, 153micron
Width: 400 mm
Length: 300 meters
Technical Properties
Layers from outside (Shiny) to the inside (Mat) | Polyamide (JIS Z1714): 0.025mm (+-0.0025mm) |
Thickness | 122μm |
Width | 400mm |
Length | 10m |
Surface quality | Mat finish |
Pinholes | Subject to the applicable aluminum foil standard |
Impurity | 1mm or less in diameter |
Fish Eye | 2mm or less in diameter (clear),1mm or less in diameter (colored) |
Molding Depth | ≥5.0mm |
Electrical Insulating | Good |
Hot Sealing Condition | 180-190°C |
Moisture Vapor / O2 Transmission Rate | 200ppm / 5 years |
Laminate Strength | Nylon/Al more than 2N/15mm Al/CPP more than 5N/15mm |
Heat Seal Strength | More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by TOB heat sealing |
Solvent Retention | Less than 5mg/m2 |
Appearance | Within the sample of the limit |
Slip Factor | CPP/CPP less than 1.0 |

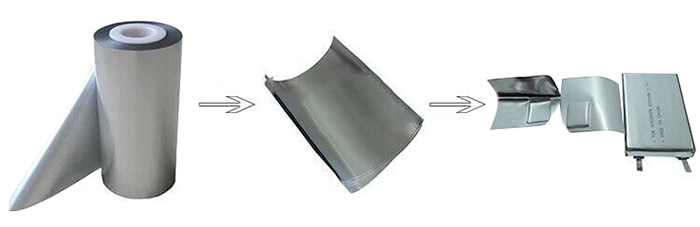

Application Notes | Click the picture below to see the finished polymer Li-ion battery made by heated sealer |
Applications
Aluminum Laminated Film for Pouch Cell Case is used as casing material for polymer Li-Ion batteries.

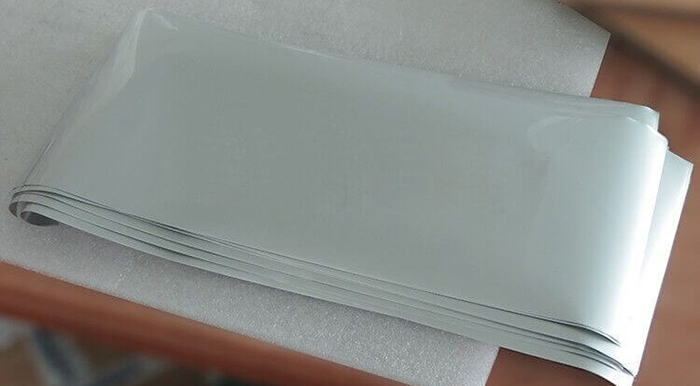

Detail
Package
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
The JT-MSK-PN120 is a compact gas-driven aluminum laminated films pouch case forming machine for pouch cell fabrication laboratory, which fits the electrodes cut by MSK-180S electrode cutting machine.
The Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
Jingtong Industry can provide custom pouch cell case-forming services according to your requirement.We also provide customer services according to your requirements to design the new pouch die, but you need to pay for the die sinking cost.
Aluminum laminated film is one of the five major materials of lithium-ion batteries, and it is pouch lithium battery packaging material.
Aluminum Laminated Film for Polymer Battery Case Thickness 122um
Aluminum Laminated Film for Pouch Cell Case is used as casing material for polymer Li-Ion batteries.

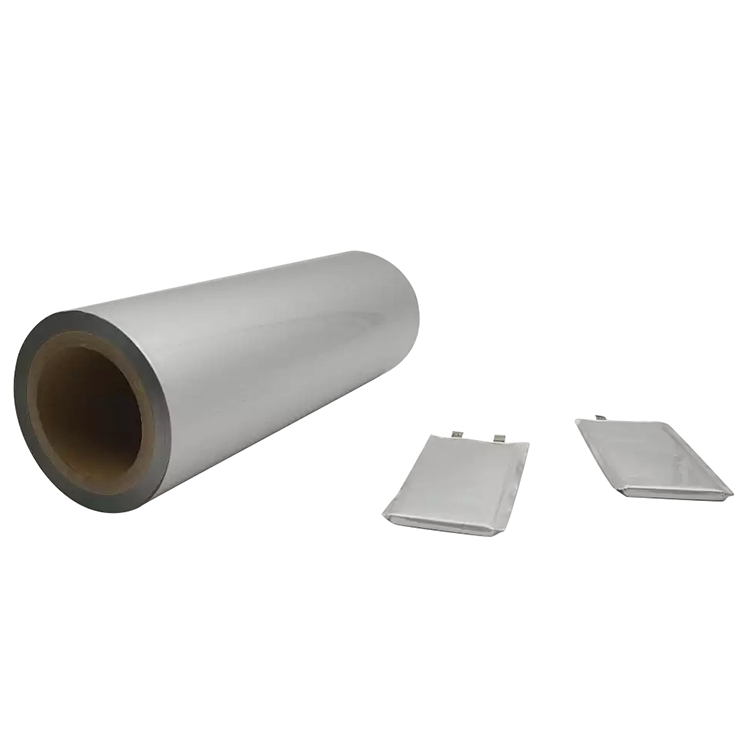

152um Aluminum Laminated Film for Power Polymer Lithium Ion Battery Pouch Cell Case
