Pouch Cell Assembly Machine Polymer Battery Lab Research Line
Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.
Item No.: JT-BFM200B
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This pouch cell case forming machine is used for lithium polymer battery/ pouch cell cup forming for making pouch cell batteries.
The machine is used to prepare polymer cases made of aluminum Laminated Films.
This lab aluminum laminated film pouch cell forming machine is designed with a simple Spring mold with a smaller size, which is more suitable for lab research.
Features

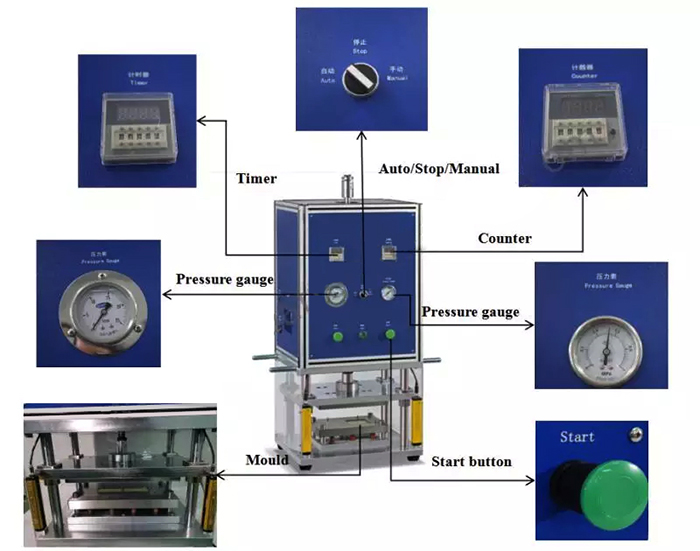

1. The temperature of the work surface can be adjusted through the button on the thermostat panel. The current value and the set value of the set temperature can be displayed on the LCD display.
2. The pressure of the upper and lower working table can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.
3. The machine adopts a single station structure, the upper and lower worktable panels are highly parallel, and the structure is stable and reliable.
4. The work surface is made of high-quality materials, with a good heat transfer effect.

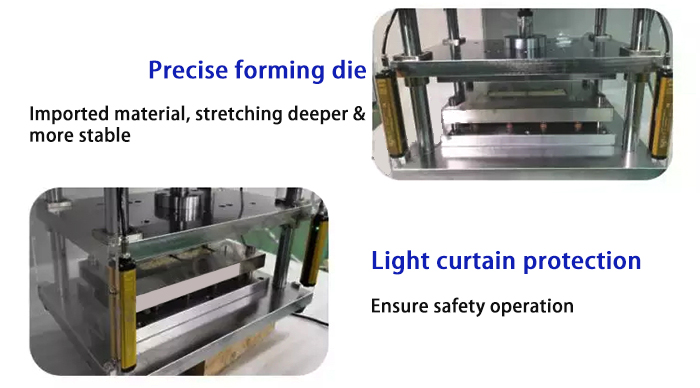

5. Use light curtain protection device, safe to use.
6. This machine has a temperature abnormal alarm function.
7. Heat pressing time, temperature and pressure can be adjusted.
8. This machine adopts automatic and semi-automatic control, easy to operate.
9. Electric control can be used for automatic operation during operation, and manual function can be used during debugging.
Specification
Model | Lab Polymer Battery Pouch Forming Machine JT-BFM200 |
Source voltage | AC 220V/110V, 50/60HZ |
Power | 100W |
Warranty | Two years limited warranty with lifetime support |
Advantages | 1. Structure of guide pin, slide up and down smoothly with high precision 2. Change mold, adjust tensile depth simply, quickly 3. Use screen and casing protection, guarantee safety 4. High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating |
Suitable aluminum film thickness | 0.1-0.2mm |
Suitable mold size | Customized as customer's request, with punching depth ≤24mm |
Max. Cup Depth | Single pit punching depth ≤24mm |
Output | 200-400EA/H |
Output pressure | 5T |
Air source | 0.5-0.7MPa |
Mold materials | SS136 Die steel |
Dimension (L*W*H) | 460*320*925mm |
Weight | About 130kg |

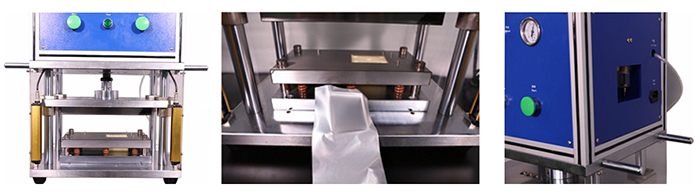

Detail
