500°C 30Ton Manual Hydraulic Benchtop Heated Lab Press With Double Heating Plate
The benchtop 30Ton manual hydraulic heated lab press is designed for the heated pressing of polymer, ceramic powder, and electrode/membrane films.
Item No.: JT-VSM-400A
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This pouch cell heating vacuum sealer is mainly used for vacuum hot sealing after electrolyte diffusion of pouch cell Li-ion batteries(medium, small size).
The vacuum sealing machine accurately controls the main vacuum pumping box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of the laminated- aluminum battery case.
Advantages
1. For pouch cell batteries lab
2. Easy to operate
3. One-year warranty, one-stop service, provide full solutions
Features

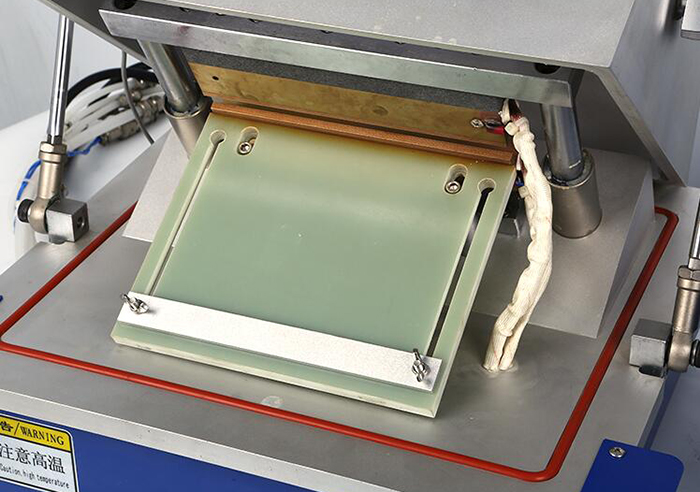

1. The sealing head is made of copper material so the heat transfer effect is good to save power consumption and improve work efficiency and more energy-saving than other similar products.
2. Pressure of upper and lower sealing heads can be regulated by a pressure regulating valve to meet different technological parameter demands.
3. The lower and upper sealing heads are driven by cylinder through two linear-guide bushes that make them move up and down flexibly and ensure the parallelism demand after being sealed by the right guidance.
4. Through the perspective window to observe the changes inside the chamber during work.
5. The cover chamber is driven by cylinder, guided by rotating guide bush to move up and down flexibly, the accurate guide can ensure the sealing demand.
6. This equipment is applicable for different sizes of batteries and is easy to regulate.
7. Split design of the main machine and control box makes the equipment can work either in the glove box or the production line.
Specification
Item | Pouch Cell Heating Vacuum Sealing Machine JT-VSM-400 |
Chamber material | The chamber is made of aluminum alloy that is corrosion resistant and the structure is firm. |
Vacuum degree | -95Kpa~0 (Vacuum pump should be self-supplied by the buyer) |
Sealing head temp | RT-250℃, adjustable |
Temp accuracy | ±2℃ |
Heat sealing pressure | 0~7Kg/cm2 (adjustable) |
Heat sealing time | 0~99s adjustable |
Sealing width | 5mm (3-10mm customized) |
Max sealing size | 200mm |
Air consumption | About 0.2L compressed air for sealing once |
Air compressor working speed | ≥180 tims/h |
Power | Power consumption for heating is 1KW when using the 500W heating tube |
Power supply | 220V/50Hz |
Control Box | About420mm * 325mm * 225mm |
Vacuum Box | Work Department: 470mm * 485mm * 435mm |
Detail
