500°C 30Ton Manual Hydraulic Benchtop Heated Lab Press With Double Heating Plate
The benchtop 30Ton manual hydraulic heated lab press is designed for the heated pressing of polymer, ceramic powder, and electrode/membrane films.
Item No.: JT-HLP30T
Compliance: CE Certified
Order (MOQ): 1
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
The benchtop 30Ton manual hydraulic heated lab press is designed for the heated pressing of polymer, ceramic powder, and electrode/membrane films. This benchtop heated lab press has two flat heating plates, which can be heated up to 500 °C.

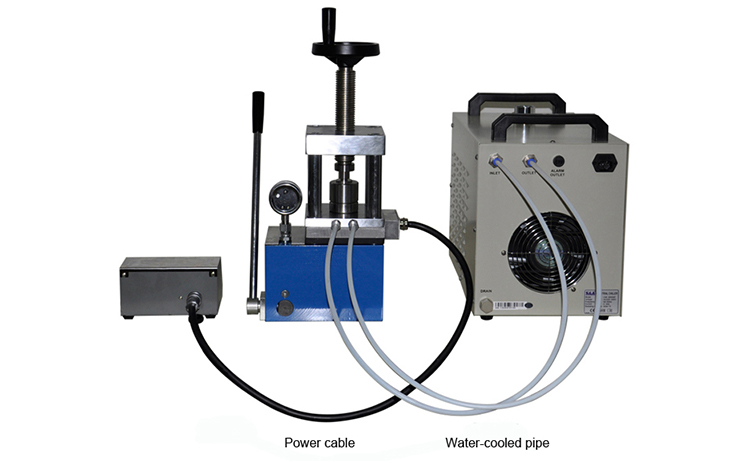

The heating plate temperatures are individually controlled by two digital temperature controllers, which ensures precise temperature control. The optional water cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling (The water chiller is optional for purchase with additional cost).
This benchtop heated lab press also can be used as small laminator for polymer films. Suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.
It is suitable for rubber, plastics, leather, the chemical industry, pigments, electronics, electrical appliances, textiles, hardware, and other fields. It is matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.
Specification
Product Name | Benchtop Lab Press Machine |
Module | JT-HLP30T |
Pressure range | 0-30T（0-34MPa） |
Piston diameter | φ150mm Chrome plating cylinder |
Standard pressure gauge type | Analog type, Ton and Mpa double-scale display |
Optional pressure gauge | Digital display 0.00-40.00 MPa, accuracy 0.01 MPa at extra fee |
Pressurization method | manually pressurization |
Temperature Controller Type | PLC Programmed Temperature Controller (Double Temperature Controller) |
Temperature Control Range | RT-600.0℃ |
Heating Temperature of Die | RT-500.0℃ |
Control accuracy | 0.1℃ |
Insulation mode | Imported insulation plate |
Cooling mode | Rapid cooling by water cooling (water cooler is optional) |
Overall structure | Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point |
Heating Die Size | Double Heating Plate 100 x 100mm |
Power supply power | 220V/1000W |

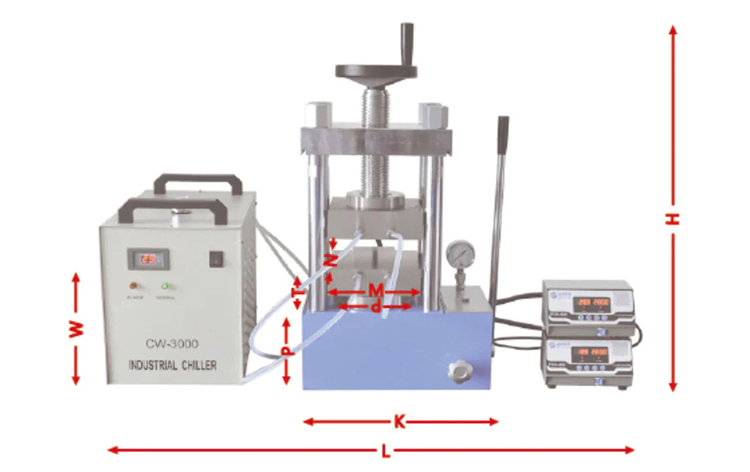

Main Machine Size | 405 x 260 x 525mm (excluding optional) |
Size of the whole machine | 1000×470×500mm |
Net Weight | 58kg without chiller 80kg with chiller |
Instrument description | Workspace can be increased, special hot press can be customized according to user needs |
Detail
Package
