Item No.: JT-MSK-PN120-1
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
The JT-MSK-PN120 is a compact gas-driven aluminum laminated films pouch case forming machine for pouch cell fabrication laboratory, which fits the electrodes cut by MSK-180S electrode cutting machine.
The adjustable depth allows the formed case to fit electrodes stacked at different heights.
Features
1. Pure pneumatic press with adjustable press speed and pressure. No electrical parts.
2. It adopts double start button, which is safe and reliable.
3. Four guide pillars are adopted to ensure smooth up and down sliding and high precision;
4. It is simple and quick to change the die and adjust the drawing depth;
5. Sheet aluminum plastic film molding, suitable for R & D and sample preparation applications;
6. Cylinder drove, no need for electricity, forming pressure and forming speed can be adjusted;
7. Compared with similar products, the same quality of the aluminum-plastic film is deeper and more stable;
8. Precise mold design, no crow's feet and collapse angle are found at all corners and around the products after molding;
9. The mold material imported from Japan and high-strength chromium steel is adopted, and the surface is treated by environmental protection electroplating and baking paint;
10. The appearance is exquisite, and the sheet metal adopts a solid geometry design, which is simple and beautiful;
11. It is easy to operate, safe and reliable with small volume.
Specification
| Forming Die Size | Customized according to customer’s request, max. punching size: L65mm*W50mm |
| Air Pressure Requirement | 0.5MPa Air Compressor is not included |
| Max. Cup Depth to Punch | < 6.0 mm Precision: ±0.05mm |
| Max. Punching Pressure | 1 metric ton |
| AL Laminated Film | The thickness of Aluminum Laminated Film: 0.10 - 0.20 mm acceptable |
| Warranty | Two Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty |

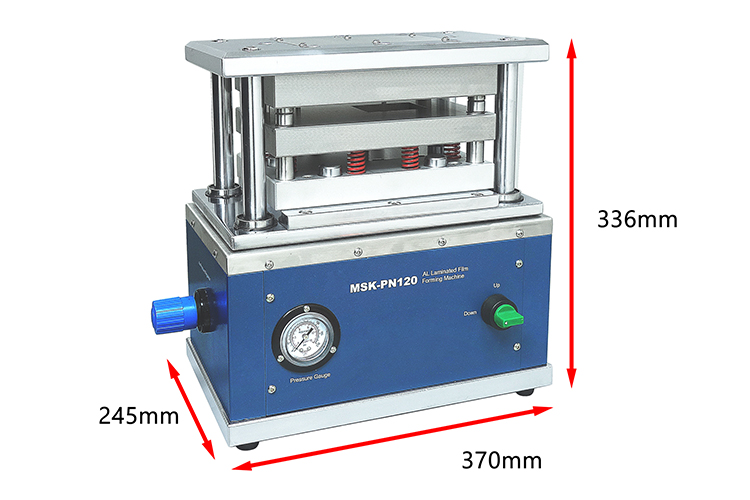

| Product Dimensions | L370mm*W245mm*H336mm； |
| Net Weight | 45kg |
Detail
