Pouch Cell Assembly Machine Polymer Battery Lab Research Line
Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.
Item No.: JT-HPS-200-2
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

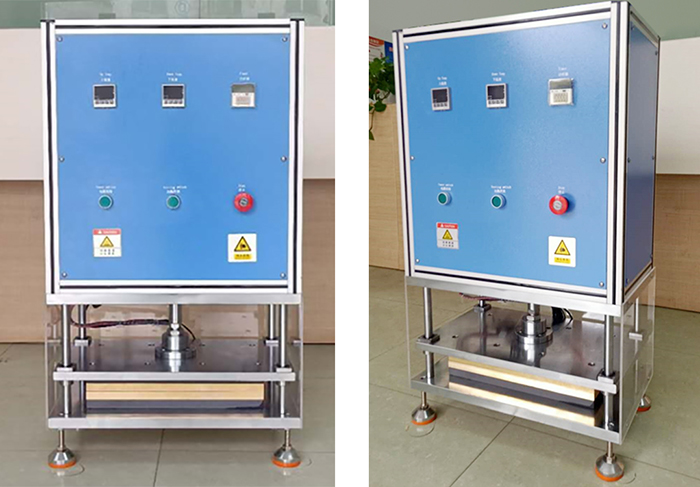

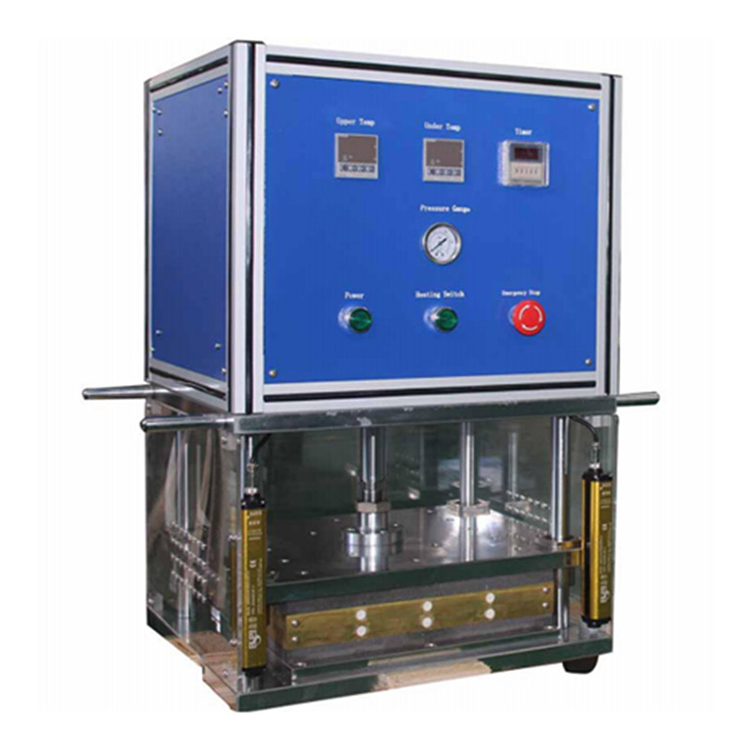

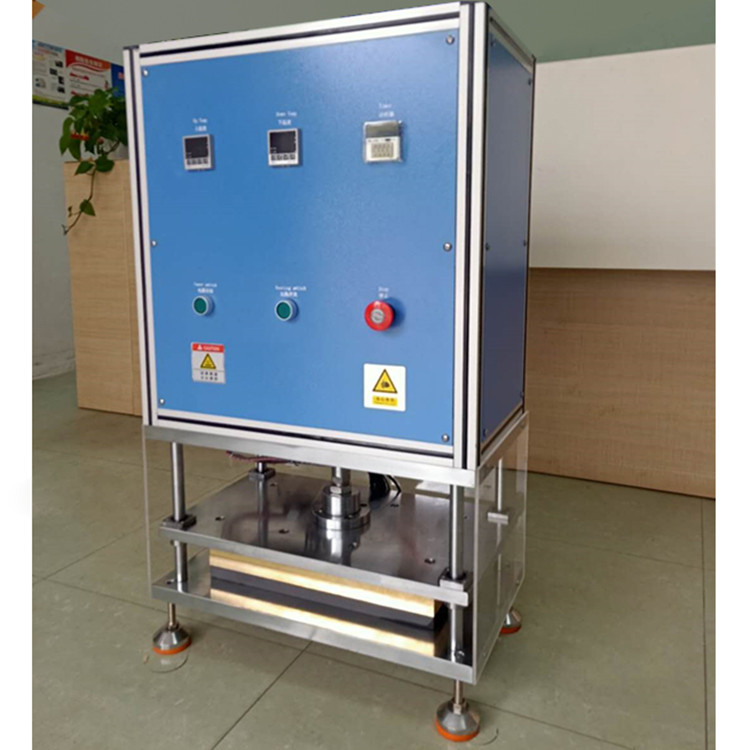

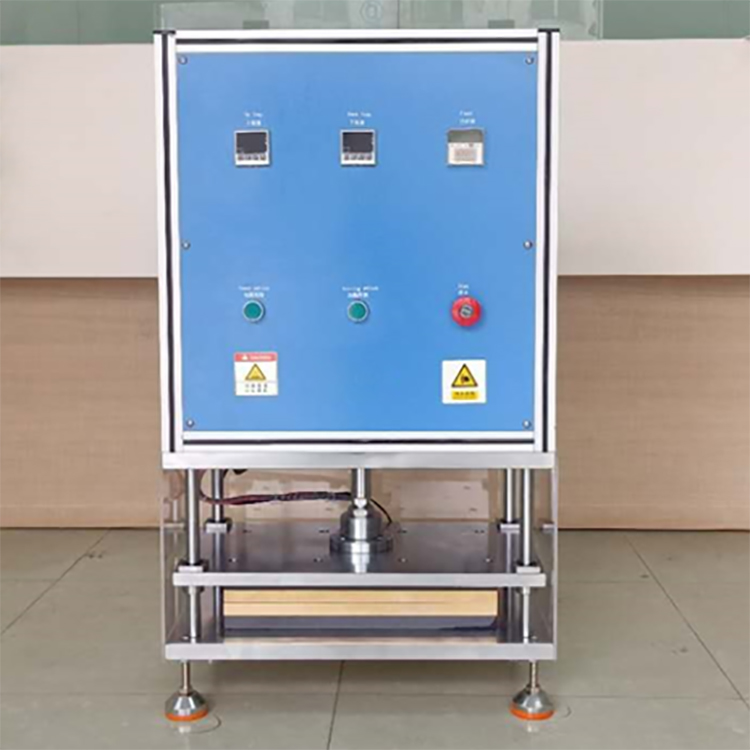

This pouch case forming machine is suitable for hot pressing and cold pressing of pouch cell lithium batteries.
The hot press machine is mainly used for battery core hot press shaping after winding process, easy for battery core into the pouch or shell.
Using the hot press shaping machine after battery Winding On the template by pressure and heat to reduce batteries thickness with finalized the design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries
Structure
1. The LCD display shows Temperature
2. Using light curtain protection device, guarantee security
3. With abnormal temperature alarm function
4. Hot-pressing time, temperature, pressure can be adjusted
5. Use automatic and semi-automatic control, easy to operate
Specification
| Product Name | Pouch Cell Hot/Cold Press Machine |
| Voltage | 110/220 V ± 10%, 50/60 Hz |
| Power | Max.1500W |
| Hot Press Area | 200*200mm(L*W), can be customized |
| Working speed | 500 times /H |
| Pressure range | 0 ~ 1T adjustable(can be customized up to 3ton) |
| Hot pressing temperature | + 20~150 °C |
| Heating devices | hot pressing upper and lower molds |
| Parallelism of upper and lower hot platens | <0.05mm |
| Weight | 89KG |
Detail
