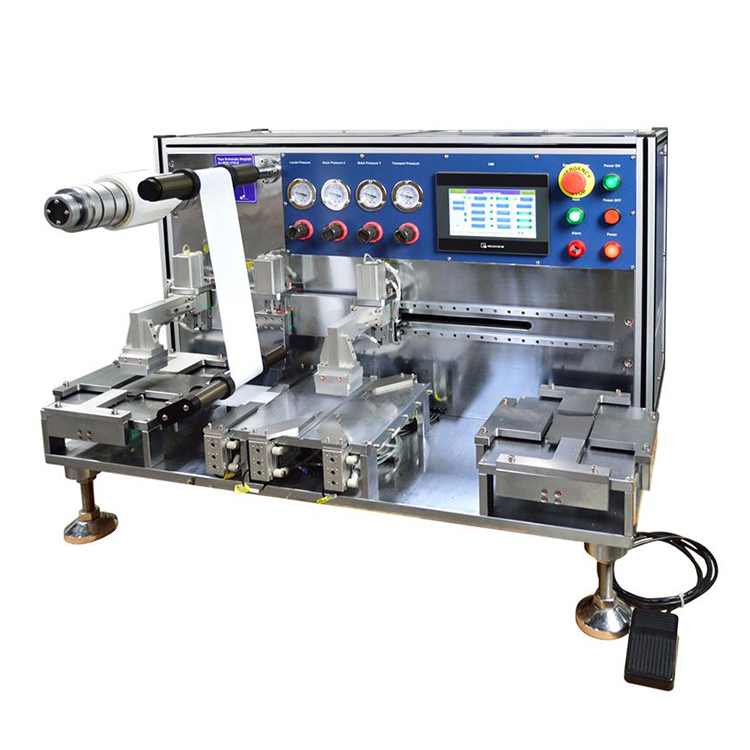

Auto Battery Electrodes Stacker Stacking Machine For Pouch Cell Making
The MSK-111A-E is a high-accuracy automatic battery stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking.
In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between.
Advanced Feature
1. PLC Touch Screen Control allows easy condition setting
2. Continuous "Z" fashion stacking with a separator
3. Auto electrode pick-up & stacking via vacuum suction manipulator
4. Adjustable mechanical fixture for accurate electrode positioning
5. Unreeling rotors for separator film feeding
6. Auto-tension control for separator film delivery
7. One set of 80x50mm stocking die fixtures are included for immediate use.
Specification
| Working Voltage | 208-240VAC, 50/60Hz, single phase. AC 110V version is available via a 2000W transformer. |
| Power | 1KW |
| Stackable Size | 200x150mm |
| Stackable Layers | Upto 500 layers |
| Max. Electrode Thickness | Piled up thickness < 30 mm |
| Aligning Accuracy | ±0.5 mm for stacked electrodes |
| Acceptable Separator Roll Size | I.D>3'' (76mm) O.D<9.8'' (250mm) |
| Stacking Fixture | One set of 200 x 150mm stacking die fixtures is included for immediate use. If you need different size electrode stacking, please inform us before ordering. We will make it for you at an extra cost. Allowable customization size: Max. 200mm x 200mm; Min. 80 mm x 50 mm |
| Vacuum Pump | An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator. |
| Suggested Air Pressure | 0.5 - 0.8 MPa (Air compressor is not included in the standard package. |

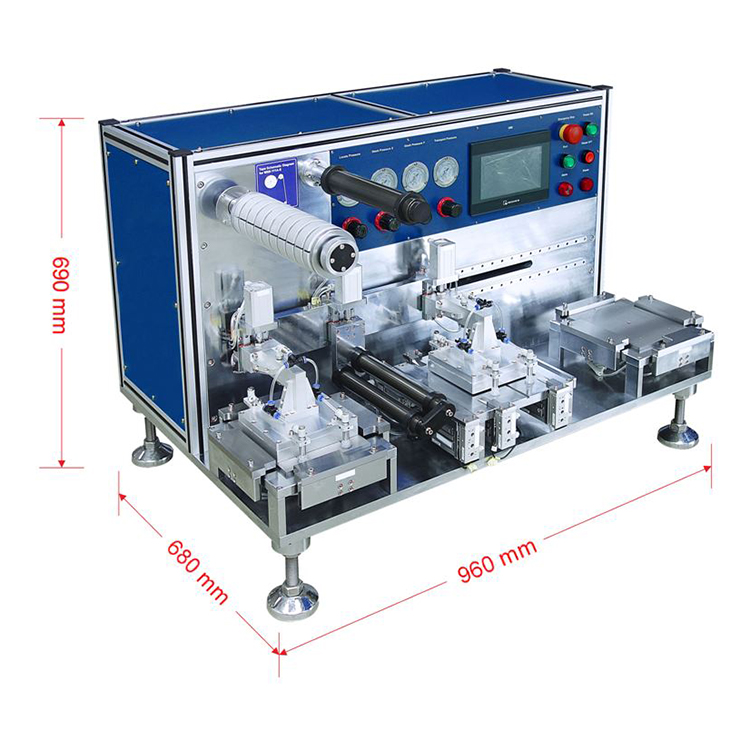

| Product Dimensions | Standard: 960 L x 680W x 690H (mm) The largest size: 1000L x 1000L x 690H (mm) |
| Weight | 500 kg |
| Compliance | CE Certified |
| Warranty | One-year limited warranty with lifetime support |
