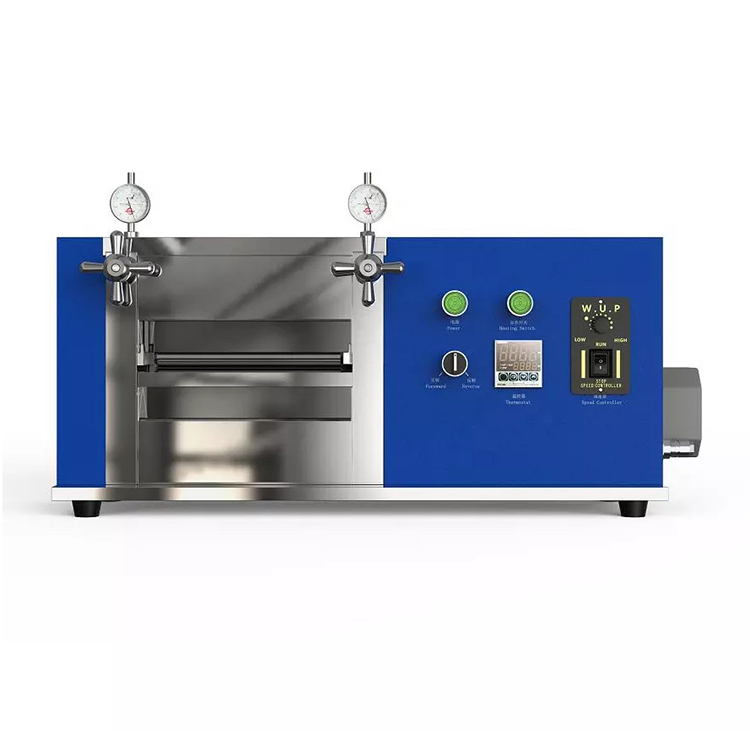

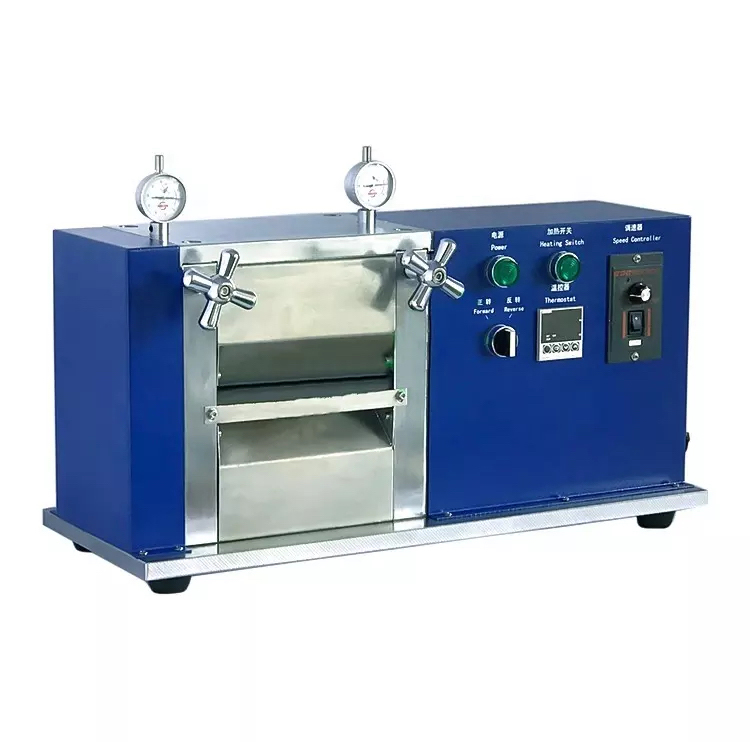

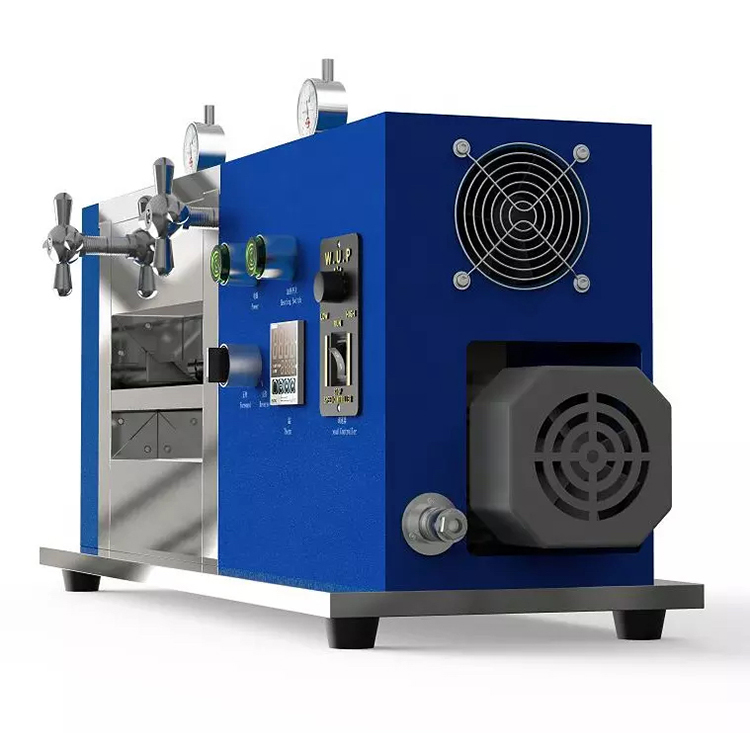

Lithium-ion Battery Hot Rolling Press Machine for Battery Electrodes Rolling
This rolling press machine is specially used for the electric rolling of small lithium electrode sheets, a small number of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials.
The machine adopts a gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meters to directly control the material pressing thickness.
This roller press machine is especially suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials.
Features
1. Pressing thickness and speed can be adjusted, easy to use;
2. The motor can be forward and reversed, and it is convenient to return the material when problems are found during operation;
3. Adopting gear rotation to realize the roller pressing;
4. Use outer cover and heat shield for protection;
5. The product meets the requirements of the OHSMS18000 standard occupational safety and health management system, and will not cause harm to the health of people contacting the product.
Specification
| Model | Rolling Press Machine JT-ERP100 |
| Working Power | 2400W |
| Voltage | 220V/110V selectable |
| Effective Calendering Width | 100-400mm selectable |
| Roller Size Optional | 100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W Or customized roller diameter and rolling width |
| Hardness of roll surface | HRC62 imported 9CR2MO steel roll material |
| Calendering Thickness (Effective clearance) | 0~3 mm adjustable |
| Dial Gauge Accuracy | 0.01mm |
| Rolling Speed | CVT, linear speed 0-8.5 m/min adjustable |
| Roller SurfaceFinish Degree | Hard chromium plating never rusts |
| Roll surface quenching depth | 5mm |
| Max. Pressure | 5Ton |
| Heating Temperature | - 150°C Max. (< 1hr) - 130°C Continuously - Recommended Heating Rate: 1.3°C/minute The heating temperature can be customized |
| Operation environment | Ar gas compatible |
| Temperature Control Accuracy | +/-1°C |
| Dimensions | L390*W250*H356mm |
| Weight | 55 Kg |

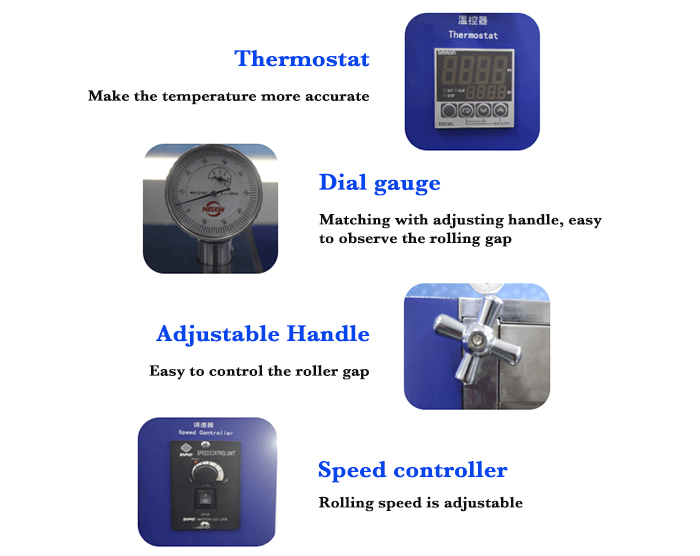

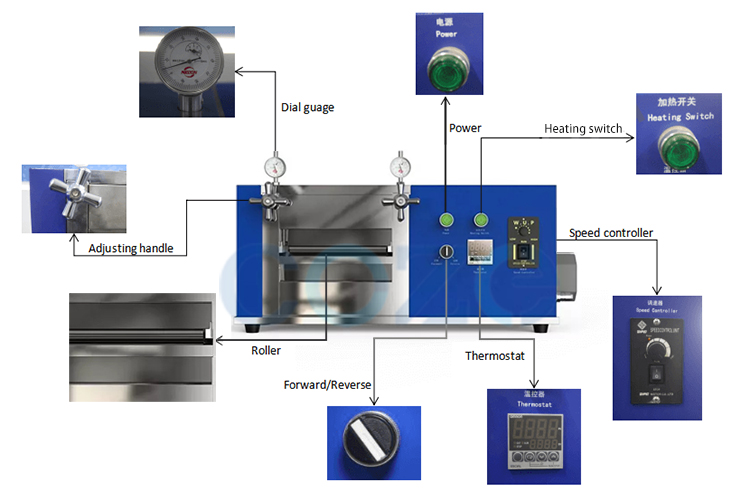

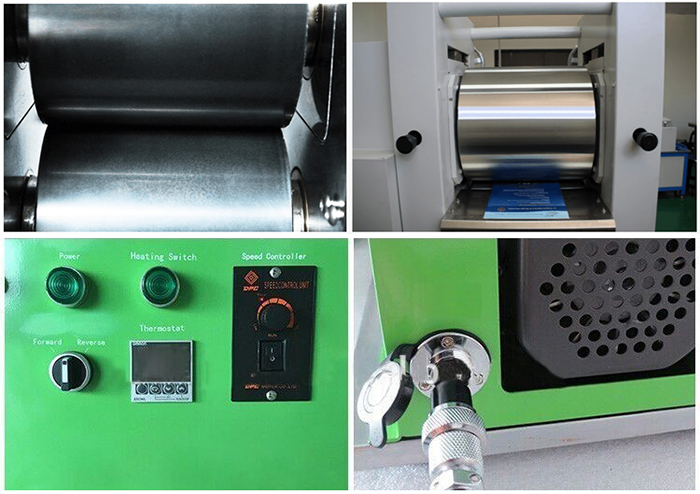

Detail Pictures
