Item No.: JT-HRP300
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

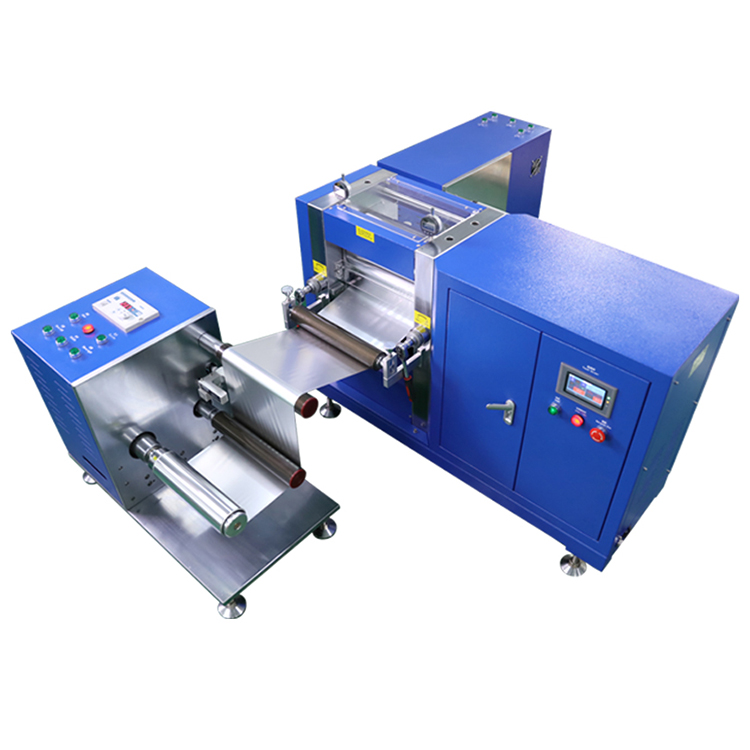

Adjustable Electric Horizontal Rolling Press Machine For Battery Electrode Calendering
The hydraulic balance electric pair horizontal rolling press machine is aimed at high-precision rolling of positive and negative plates in the battery industry.
The equipment has good horizontal and vertical rolling uniformity, and the appearance of the rolled product is high-quality. The equipment is provided by the hydraulic system to provide pressure for roll rolling. It is suitable for Where there is a higher requirement for the consistency of rolling force and rolling gap.
Features
1. Integral gantry frame, CNC precision machining to ensure high precision and high stability.
2. The roll is made of imported cold-rolled chromium-molybdenum material, and the surface is chromium-plated and cryogenically treated by heat treatment, with high internal and external hardness and good wear resistance.
3. The hydraulic system imported from the United States automatically controls the rolling pressure.
4. Patent design hydraulic balance rolling mechanism, stable pressure
5. Slanted block type roll gap adjustment device, display adjustment.
Specification
Model No. | JT-HRP300 |
| Rolling force | Max25t |
| Mechanical speed Max.6m/min | |
| Work roll | Diameter Ф200 mm |
| Material | 9Cr3Mo |
| Surface hardness HRC65~68, internal hardness HRC60-62, roughness Ra ≤0.4, round runout better than ±2μm | |
| Roller surface width | 330 mm |
| Press down type | hydraulic |
| Rolling accuracy | ±1.5μm |
| Rolling mill opening | 2 mm |
| Reducer and sub-gear box | combined |
| Rolling mill motor | AC variable frequency motor |
| The single reduction of the lithium electrode sheet is 20%~30% if it is thinner, it needs to be rolled several times (5μm/time) | |
Using environment: recommended environment temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference | |
| Overall installation dimensions | L1400mm * W500mm * H1300mm |
| Voltage | 220V 2KW |
| 0.5-0.8MPa compressed air | |
| Weight | About 600KG |

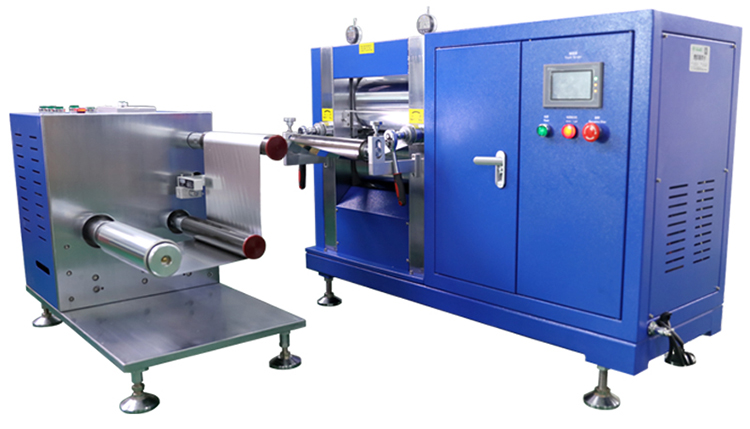

Detail Pictures
Accessories
Other Type of Rolling Press Machine For Choose
 |  |

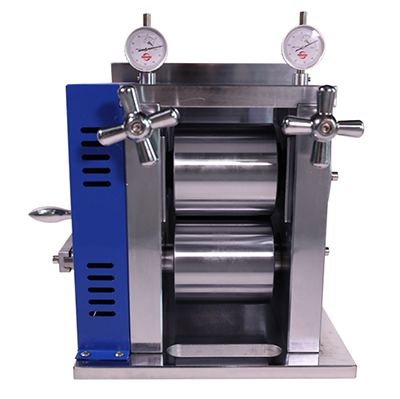

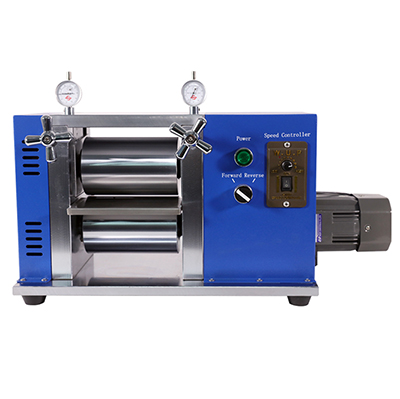

JT-ERP100L For 18650 Battery | JT-MRP100W Manual Horizontal Roller Press Machine For Cylindrical Battery |
 |  |

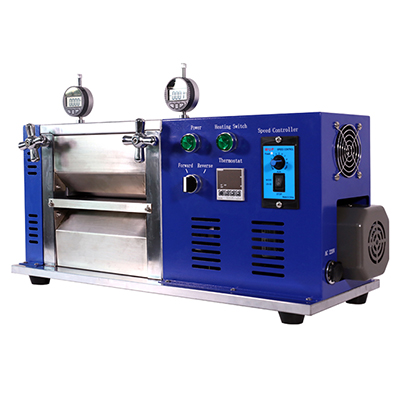

| JT-MRP100L Manual Rolling Press Machine For Lithium Battery | JT-HRP100 Electrode Roller Press Machine With Heating Function |
