Item No.: TF-1400C
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

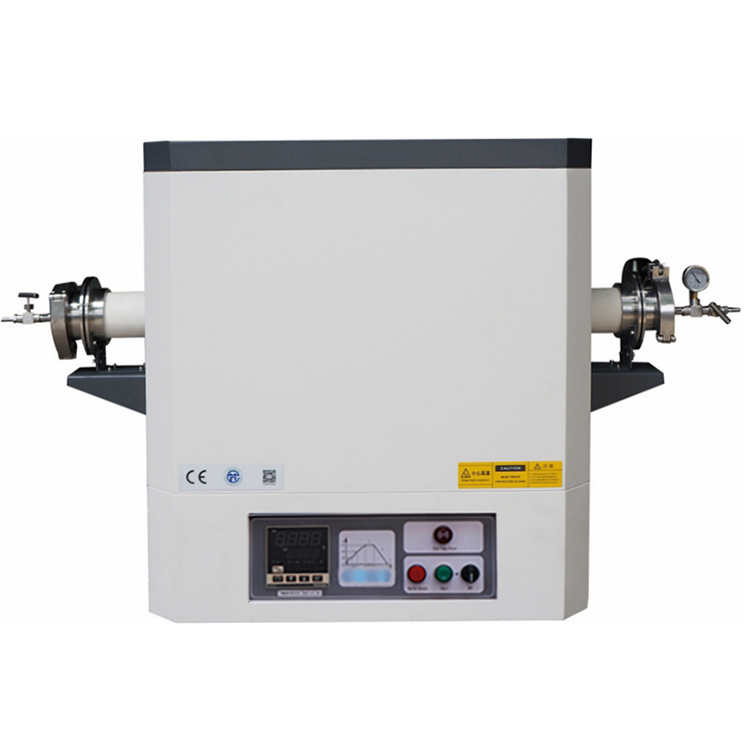

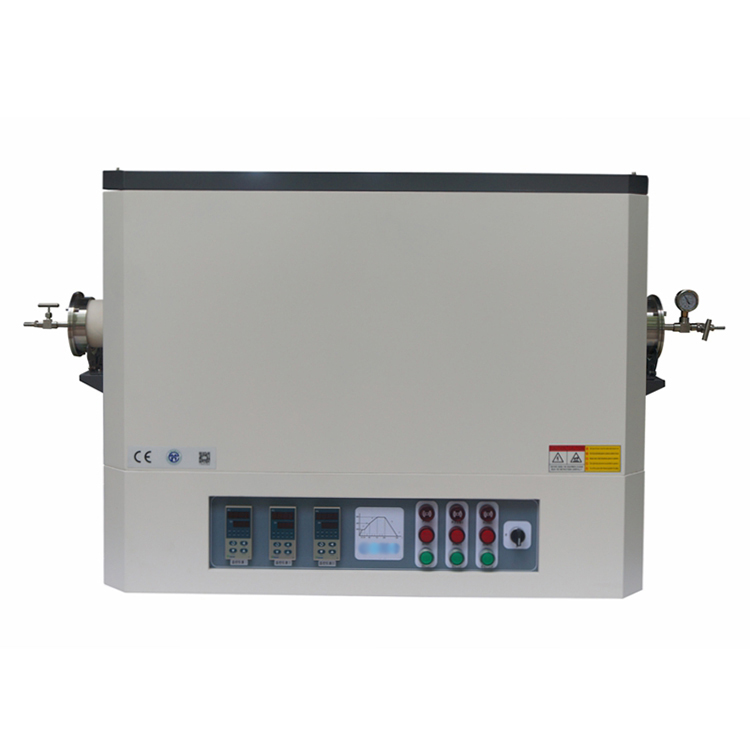

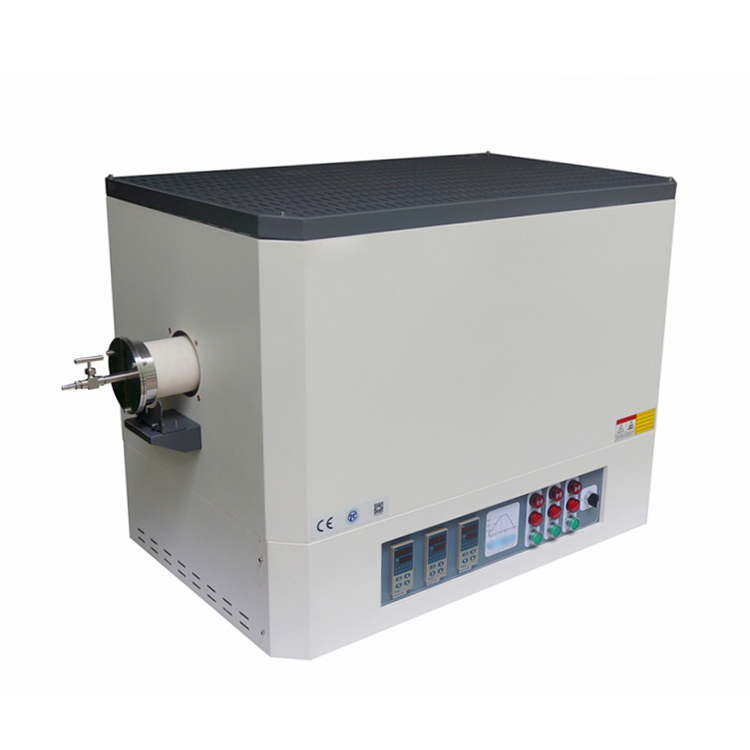

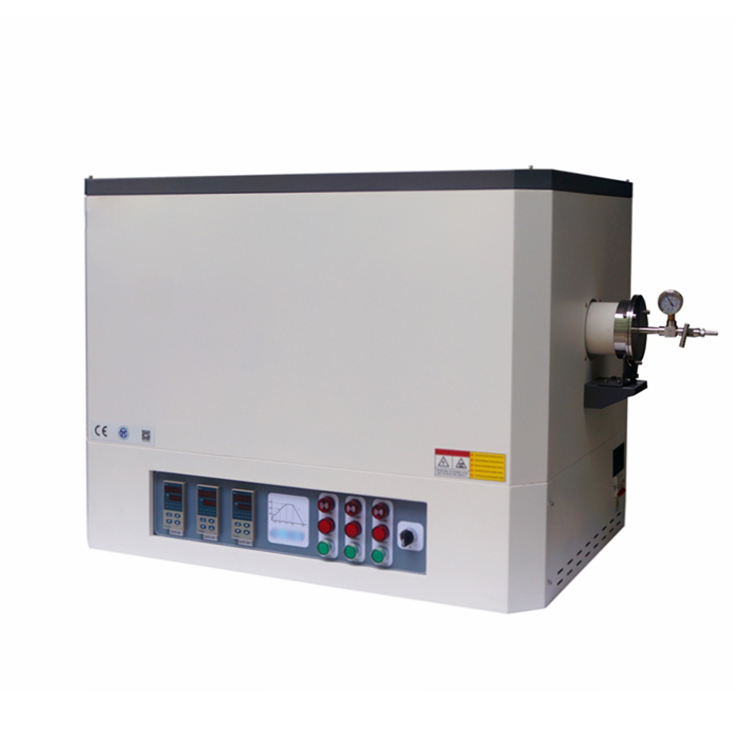

Electric Quartz 1400C Horizontal Vacuum Tube Furnace For Laboratory Material Drying
This horizontal tube furnace is made of carbon steel with powder coating on the surface, integrated with the furnace body and heating system and controller system in one.
The 1400C horizontal vacuum tube furnace is suitable for elemental analysis, measurement (including LOI) and small size steel hardening, annealing, tempering, heat treatment and heating in the laboratory, industrial and mining enterprises, scientific research units, can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating.
Specification
| Product Name | Laboratory Tube Furnace |
| Model No. | TF-1400C |
| Type | Bench-top; Vacuum Atmosphere |
| Furnace Structure | The furnace is made of carbon steel with powder coating on the surface, integrated the furnace body and heating system and controller system in one. |
| Diameter | Ф60 |
| Heating Zone | Single Heating Zone 300mm |
| Tube Size | Ф60x800mm length |
| Max. Working Temp. | 1400°C |
| Constant Working Temp. | 1300°C |
| Min. Working Temp. | Ambient |
| Heating Rate | Fast heat-up time due to the low thermal mass construction Suggest 5~20℃/min for longer life using of furnace |
| Temp. Homogeneity | Adopt the way of measuring the temperature at a 9-point Temperature homogeneity is +/-5 degree |
| Power Supply | AC220V; 3KW 50Hz, single phase |

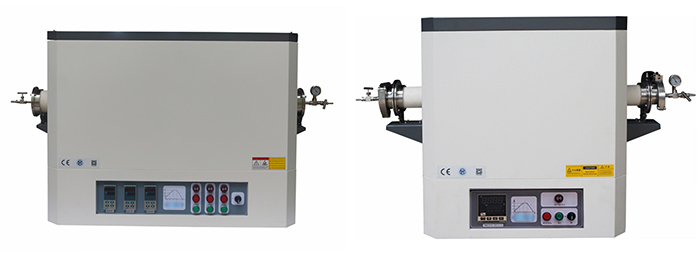

Product Image
