Item No.: MF-1600C
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Lab 1600C High-Temperature Electric Muffle Furnace with Programmable Controller and Venting Port
The JT-MF-1600C is a CE-certified muffle furnace that provides high purity fibrous alumina chamber, gas inlet and outlet ports and a 40-segment, programmable temperature controller, this muffle furnace is with UL certified electric components.
It is the ideal muffle furnace for preparing small-sized samples using temperatures up to 1600°C in material research and dental labs with maximum energy saving. In addition, the compact furnace can be placed into a glove box to sinter samples in a vacuumed or controlled atmosphere.
Specification
| Chamber Size | 200x200x200 mm, Capacity: 8 liter | 300x200x200 mm, Capacity: 12 liter | 300x250x250 mm, Capacity: 19 liter | 400x300x300 mm, Capacity: 36 liter |
| Power | 5 KW | 6KW | 7KW | 10KW |
| Furnace Construction | High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands. | |||
| Voltage | 220V or AC 380V 50/60 Hz | |||
| Operating Temperature | 1. 1500°C max continuously 2. 1600°C max for 1 hour | |||
| Max. Heating Rate | 30°C /min | |||
| Temperature Controller | 1. PID automatic control and auto-tune function. 2. 40 programmable segments for precise control. 3. Built-in protection for the over-heating and broken thermocouple. 4. Large digital control panel (48 x 96 mm) for easy operation. | |||
| Temperature Accuracy | +/- 1 °C | |||
| Heating Elements | Fe-Cr-Al Alloy doped by Mo | |||
| Thermocouple | K type | |||
| Net Weight | 8~ 30Kg | |||
| Warranty | One year limited warranty with lifetime support | |||
| Compliance | CE Certified | |||
| Application Notes | With the small footprint, low weight and low power requirement, it can be easily accommodated in a glove box and heat treat samples under protective gas. | |||
| Warnings | 1. Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put the furnace into the fume hood for better safety. 2. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. | |||

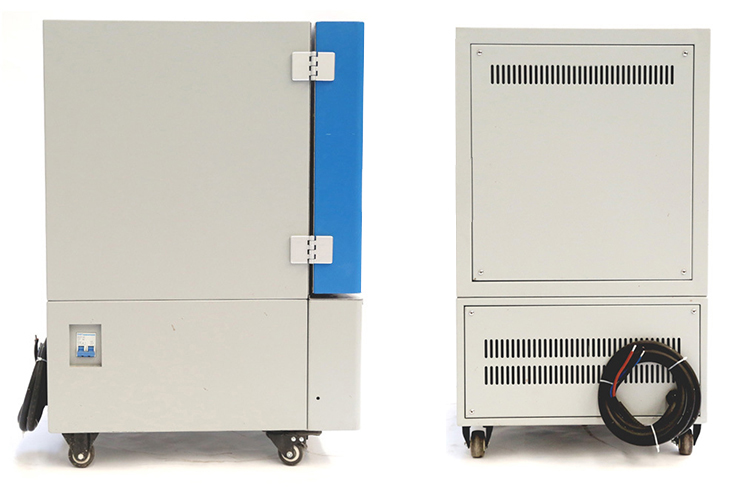

Product Image
