Item No.: MF-8-1700
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
8L 12L 20L 36L 1700C High-Temperature Electric Resistance Wire Laboratory Box Muffle Furnace
One-piece chamber and ecological insulation provide high thermal efficiency
The laboratory muffle furnace is suitable for elemental analysis, measurement, small-sized steel hardening, annealing, tempering, heat treatment and heating in the laboratory, industrial and mining enterprises, scientific research units, it can also be used for sintering of metal, stone, ceramic, dissolution analysis, gold melting of high-temperature heating, etc.
1700℃ series muffle furnace made with high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Specification
Model | MF-8-1700 | MF-12-1700 | MF-20-1700 | MF-36-1700 | Customized |
Chamber Size（WxDxH）mm | 200x200x200 | 200x300x200 | 250x320x250 | 300x400x300 | Any size |
Type | Benchtop | ||||
Furnace Structure | 1. The furnace is made of carbon steel with powder coating on the surface, consists of insulation material and heating elements and temperature control system, electric components and thermocouple 2. The furnace body and temperature controller were designed separately | ||||
| Inner Chamber Size | Chamber Capacity: Customized | ||||
Max Temperature | 1700℃ | ||||
Continue Operating Temp. | 1600℃ | ||||
Power Supply | 220V/5KW | 220V/6KW | 380V/7KW | 380V/13KW | Depends on size |
Heating Element | High-Quality Molybdenum Disilicide (MoSi2 ) heater | ||||
Chamber Material | High temperature 1800 Grade polycrystal alumina ceramic fiber material | ||||
Temperature Precision | ± 1℃ | ||||
Thermocouple | B type | ||||
Temperature Controller | Intelligent microcomputer PID controller can program 30 segments as standard or any other brand as optional | ||||
Heating Rate | ≤15℃/min ( suggest 10℃/min for longer life using of the furnace ) | ||||
| Temp. Homogeneity | Adopt the way of measuring temperature at 9-point; Temperature homogeneity is +/-5 degree | ||||
Safety Protection | Overheat and thermocouple-break alarm | ||||
Certification | ISO9001 CE SGS | ||||
Furnace Shell | high-quality cold-rolled steel sheets CNC processing | ||||
Insulation | High-quality thermal insulation material to ensure a good uniformity | ||||
Accessories | One pair of high-temperature furnace gloves One pair of crucible stongs | ||||
Optional | Stainless steel exhaust chimney Alumina crucible | ||||

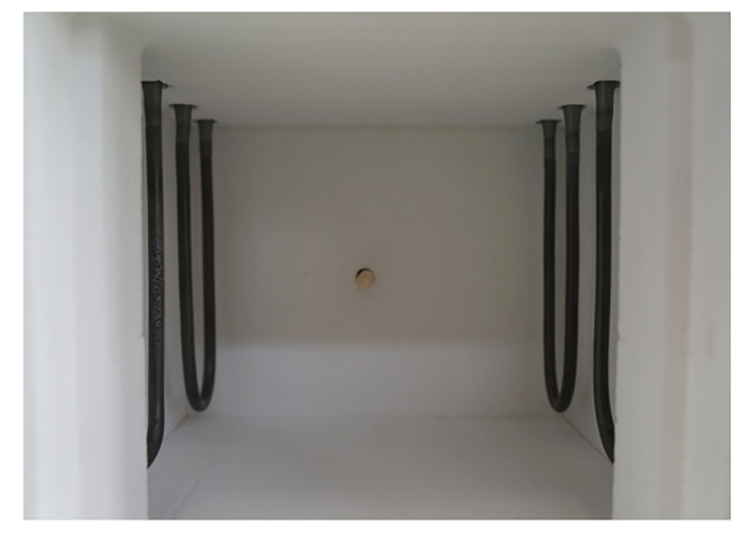

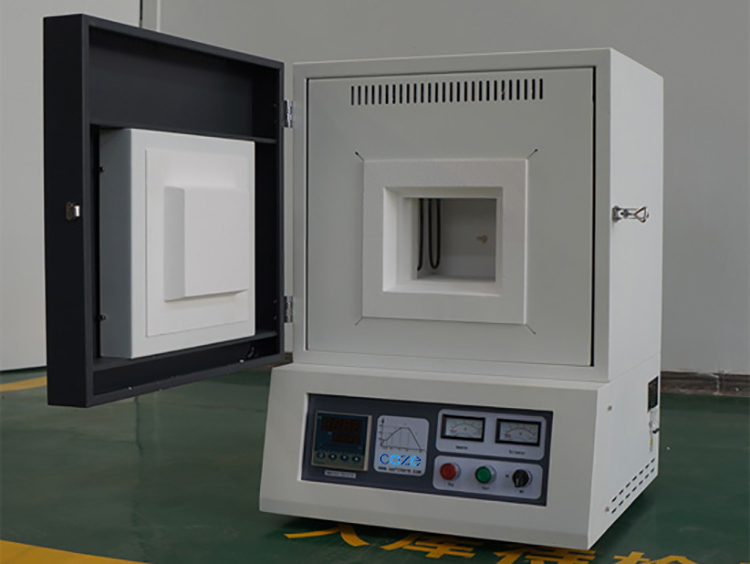

Product Image
Application
1700℃ muffle furnace (box-type resistance furnace) mainly provides high-temperature heat treatment environment for industrial colleges, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nanomaterials, and semiconductor materials.
