1400C 3L 8L 12L 36L High-Quality Electric Resistance Wire Laboratory Box Muffle Furnace
This muffle furnace with high tensile strength and no miscellaneous ball, this furnace is much more energy-saving than the furnace using common fiber materials.
Item No.: MF-8-1400
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
1400C 3L 8L 12L 36L High-Quality Electric Resistance Wire Laboratory Box Muffle Furnace
This muffle furnace with high tensile strength and no miscellaneous ball, this furnace is much more energy-saving than the furnace using common fiber materials.
The 1400C muffle furnace is made of carbon steel with powder coating on the surface, consists of insulation material and heating elements and temperature control system, electric components and thermocouple
The furnace body and temperature controller were designed separately
Specification
Model | MF-3-1400 | MF-8-1400 | MF-12-1400 | MF-18-1400 | MF-36-1400 | MF-45-1400 | Customized |
Chamber Size（WxLxH）mm | 150x150x150 | 200x200x200 | 200x300x200 | 250x300x250 | 300x400x300 | 300x500x300 | Any size |
Type | Benchtop | ||||||
Furnace Structure | Alumina Ceramic Chamber, Temperature control system, heating element, furnace shell, main electric parts and other relative accessories | ||||||
Max Temperature | 1400℃ | ||||||
Continue Operating Temp. | 1300℃ | ||||||
Power Supply | 220V/3KW | 220V/5KW | 220V/5KW | 220V/6KW | 380V/12KW | 380V/14KW | Depends on size |

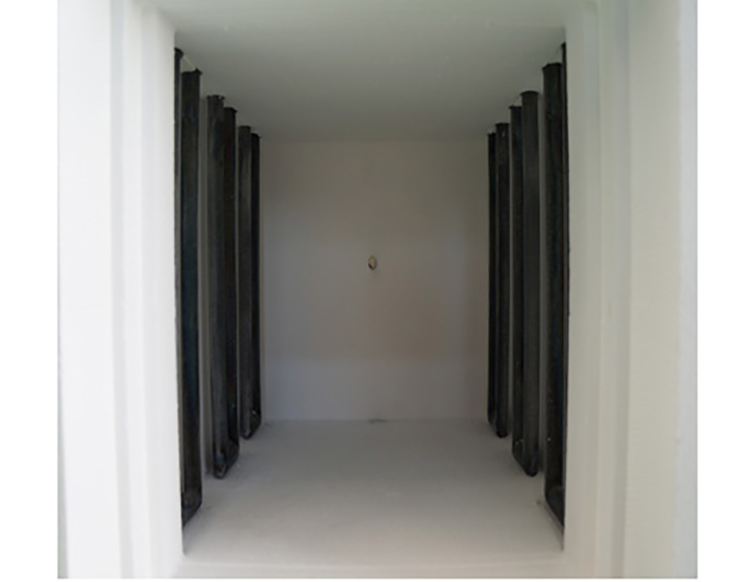

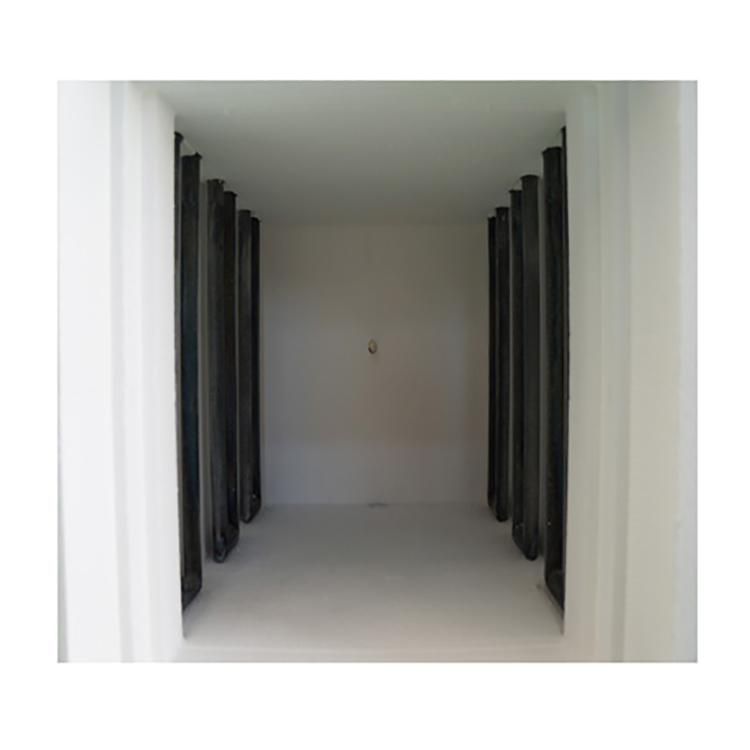

Heating Element | Quality Silicon Carbide Rod (SIC) heater | ||||||
Chamber Material | High temperature 1500 Type polycrystal alumina ceramic fiber material | ||||||
Temperature Precision | ±1℃ | ||||||
Thermocouple | S type | ||||||
Temperature Controller | Intelligent microcomputer PID controller can program 4 groups 32 segments | ||||||
Electronic Component | SCHNEIDER (France) electronics brand | ||||||
Heating Rate | ≤ 25℃/min ( suggest 15℃/min for longer life using of the furnace ) | ||||||
| Temp. Homogeneity | Adopt the way of measuring the temperature at 9-point; Temperature homogeneity is +/-5 degree | ||||||
Safety Protection | Overheat and thermocouple-break alarm | ||||||
Certification | ISO9001/ CE/ SGS | ||||||
Furnace Shell | High-quality cold-rolled steel sheets CNC processing | ||||||
Insulation | High-quality thermal insulation material to ensure a good uniformity | ||||||
Accessories | One pair of high-temperature furnace gloves One pair of crucible stongs One catalog and operation manual | ||||||
Optional | Stainless steel exhaust chimney Quartz/ Alumina crucible | ||||||

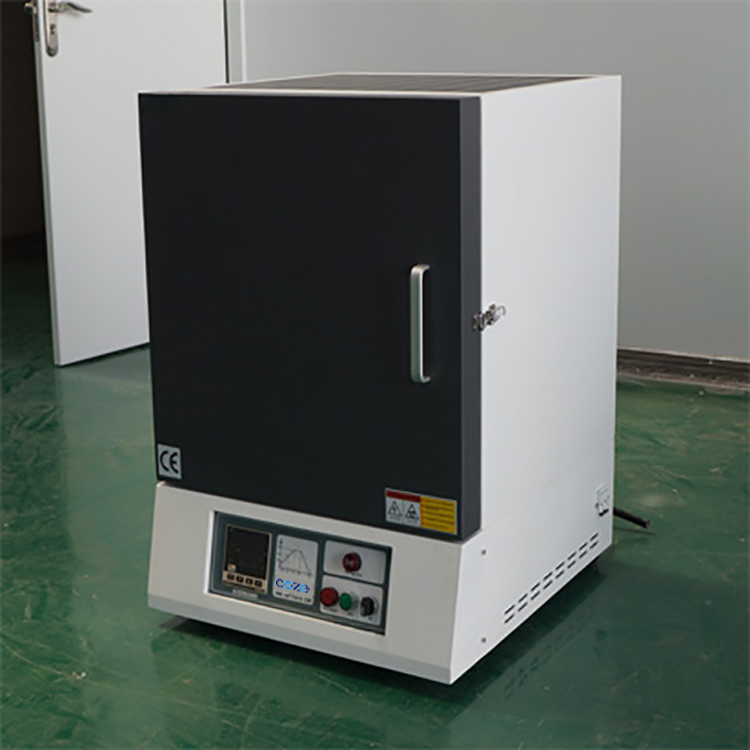

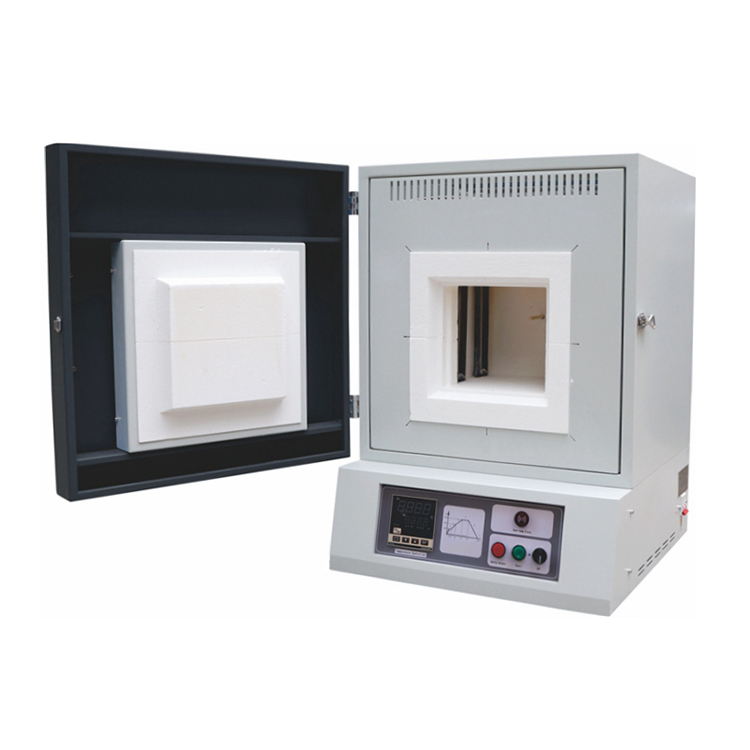

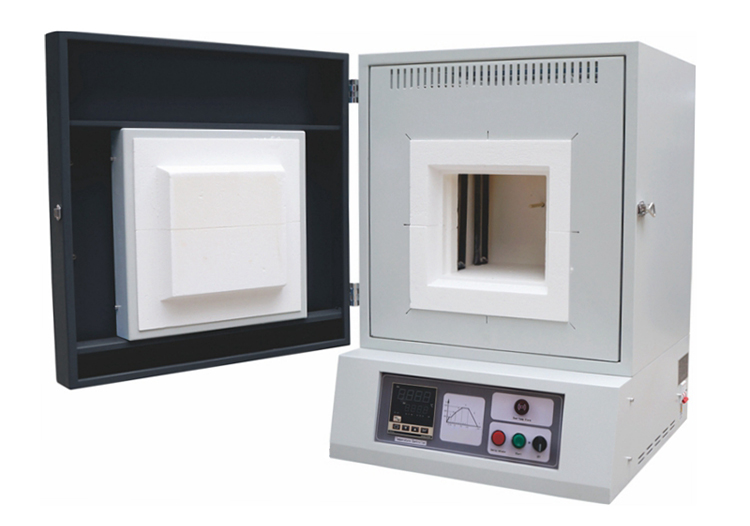

Product Image
Application
1700°C muffle furnace (box-type resistance furnace) mainly provides high-temperature heat treatment environment for industrial colleges, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nanomaterials, and semiconductor materials.
