Item No.: JT-VM-1L
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
High-Efficiency Electric Helical Blade Vacuum Mixer with Timing Function
This vacuum mixer is high-efficiency equipment integrating vacuum mixing and dispersion. It is suitable for the positive and negative slurry mixing process in the battery experiment process, as well as the mixing of powdered materials and various ceramics; it is set by the programming controller Time, speed, and direction of rotation.
The double-dispersion blade design makes the material toss up and down and around, so that the slurry can be mixed quickly and evenly.
Specification
| Model No. | JT-VM-1L |
| Power supply voltage | AC220V |
| Rated power | 0.7KW |
| Stirring speed | 0-1400 rpm; speed regulation by frequency converter |
Vacuum | -98KPa (without vacuum pump) |
| Effective volume | 150ml ~ 250ml stainless steel vacuum stirring tank, can be made according to customer requirements |
| The opening and closing method of the barrel | the cylinder drives the upper cover to rise |
| Overall size | 705mm X 605mm X 305mm (height X length X width) |
With the timing function, the time can be set arbitrarily from 0-99 (H) set time | |
| To automatically stop running and keep the vacuum state | |

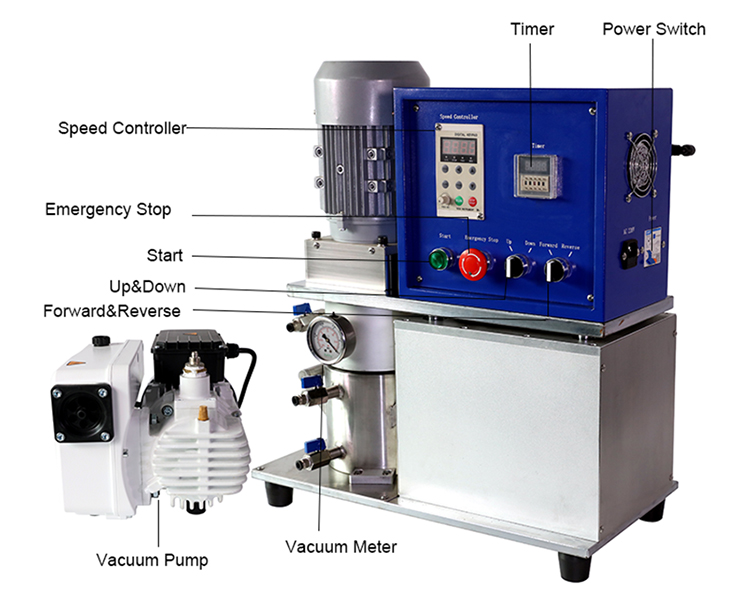

The lid is equipped with | vacuum gauge, vacuum port, etc |
Overall weight | about 90kg |
Product Detail
Package
