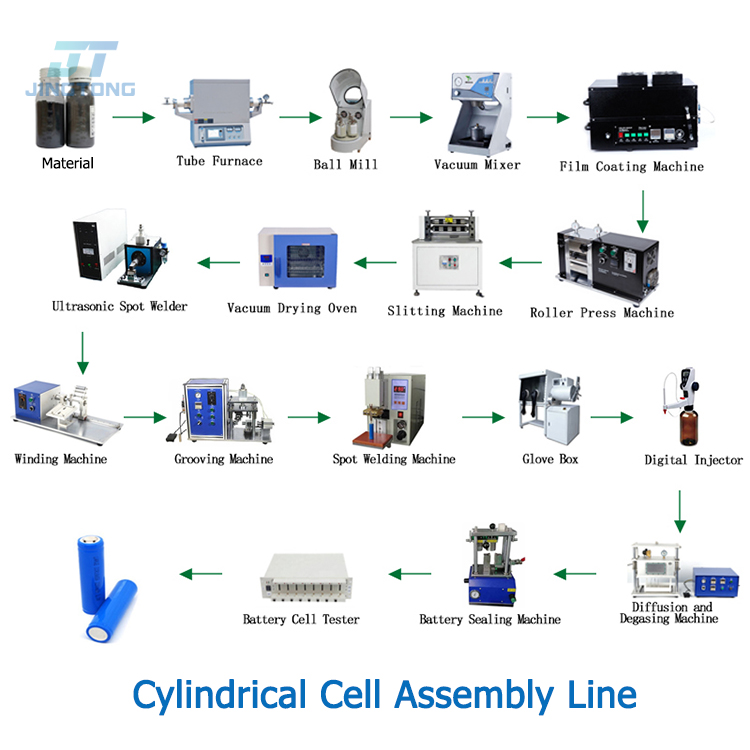

Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-PVM-5L-A
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

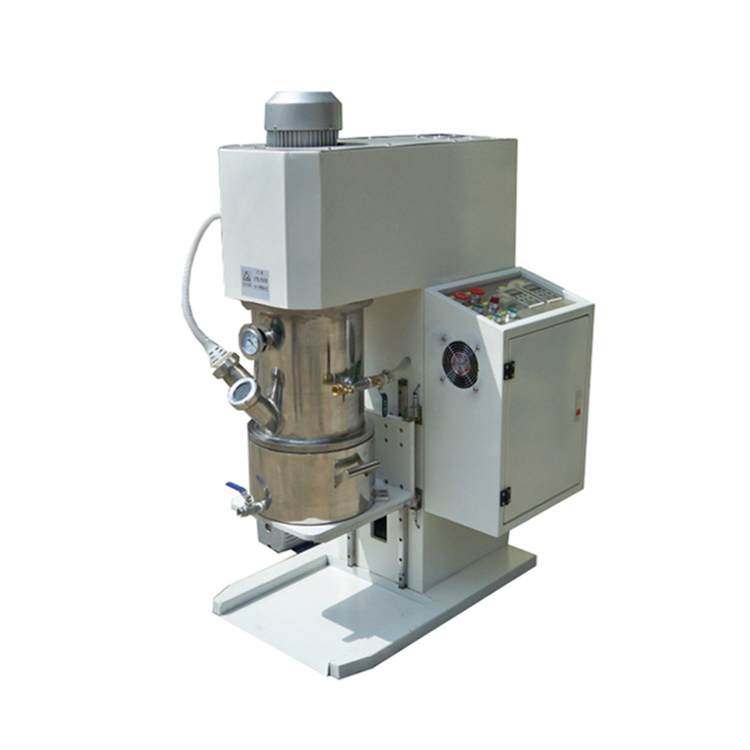

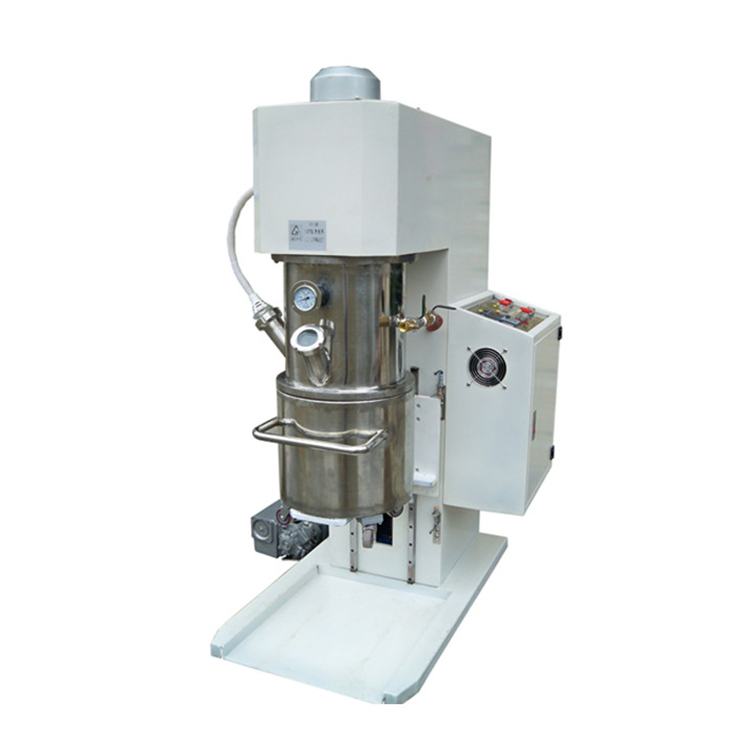

This Planetary Vacuum Mixer with 5-liter containers and complete accessories for immediate use. The Slurry vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping of the walls to make slurry gas bubble-free and with extreme uniformity under vacuum.
A temperature-controlled water circulator is included to make the container work at the temperature range from 50ºC to 35ºC directly and water cold stainless steel tank can promise high efficiency in mixing. GN-SFM-9 is excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.
This machine is high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process. Also, it is widely used in solder paste, silica gel, chemical industry, etc.
Features
1. Using industry-leading soft-sealing technology, can maintain a -0.098Mpa state for more than 24 hours;
2. Supported by double-precision guide columns, the cylinder pushes the mixing tank to open and close, humanized design, precise and efficient;
3. The tank body is made of high-quality 304 stainless steel, after being processed by a large horizontal lathe, and then polished by a precision automatic polishing machine to ensure high precision;
4. The double-dispersed blade design makes the material tumble up and down and around, so that the slurry is mixed quickly and evenly;
5. The stirring motor adopts gearbox frequency conversion adjustment, and different speeds and torques can be selected according to different processes and different viscosities.
Specification
| Power Supply | Single-phase, AC 208 - 240V 50/60Hz, single phase Total power: 4kW 220V AC Power plug is not included. Please click here to order the plug) |
| Revolution Speed | Mian shaft speed: 0 - 70 rpm Stirring speed: 0 - 112 rpm, motor: 2.2KW Dispersing speed: 0 - 6100 rpm, motor: 1.5KW |
| Vacuum | The vacuum pump: 0.37kW built in The vacuum degree: <= -0.098MPa |
| Lift Motor | Lifting Motor is built in ( 370W) |
| Bucket | Dimensions: Dia.240mm * H.180mm Capacity: 5 Liter Water cooling jacket Temperature monitor and over-temperature alarm |
| Beater | Tolerance of beater and bottom: 2-4 mm Tolerance of beater and bucker wall: 2-5mm Tolerance of two beaters: 3-8mm Made of SS 304 |
| Shipping Dimension & Weight | Two Pallets: 53" x 43" x 93" 800 lbs 40" x 26" x 27" 100 lbs |
| Overall Dimension | 1000mm(L) x 800mm(W) x 1930mm(H) |
| Control Panel | Digital Touch Screen for efficient adjustments |
| Net Weight | 400kg |
| Warranty | One-year limited warranty with lifetime technical support Rust and damage due to improper storage conditions or lack of maintenance are not covered by warranty |
Product Image
__________________________________
Email: [email protected]
Tel./WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.

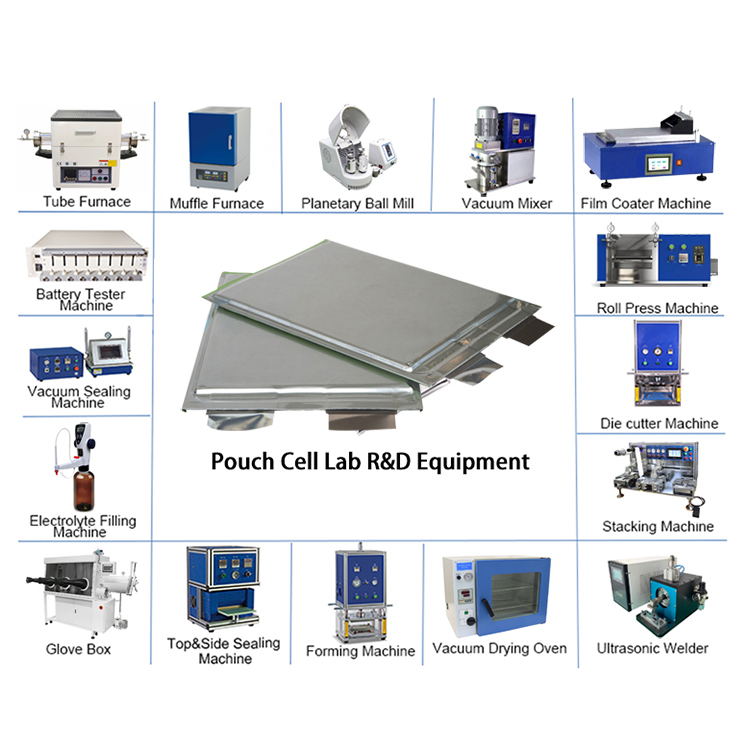

Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.

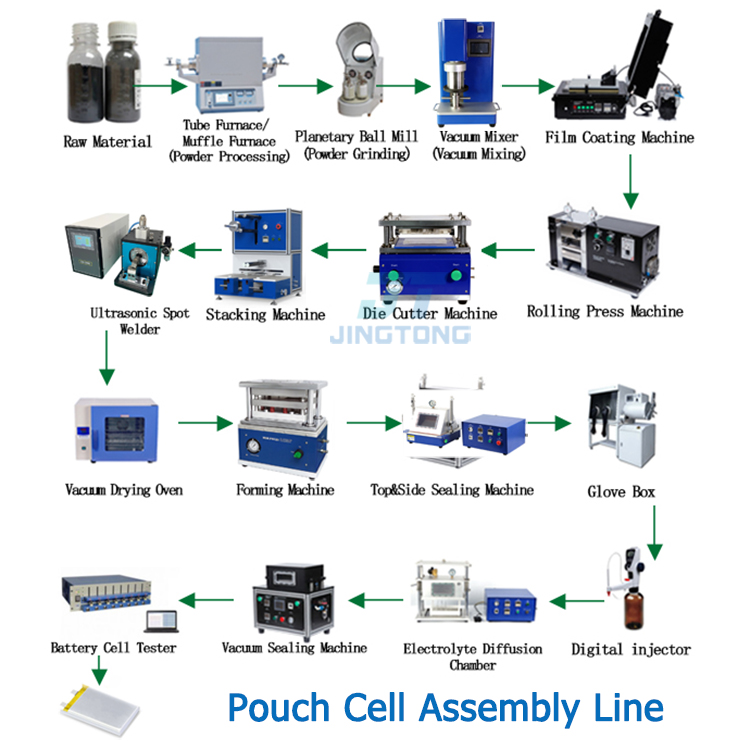

Jingtong Battery Equipments offers the full set of pouch cell battery producing equipment from mixing to last testing equipment, Including the ball mill, vacuum mixer, electrode coating machine, rolling press machine, electrode die cutter, battery stacking machine, ultrasonic spot welder, pouch forming machine, top&side heat sealer, electrolyte diffusion chamber and filler, secondary vacuum heat sealer, edge cutting machine, edge folding machine, edge hotting machine and battery tester.

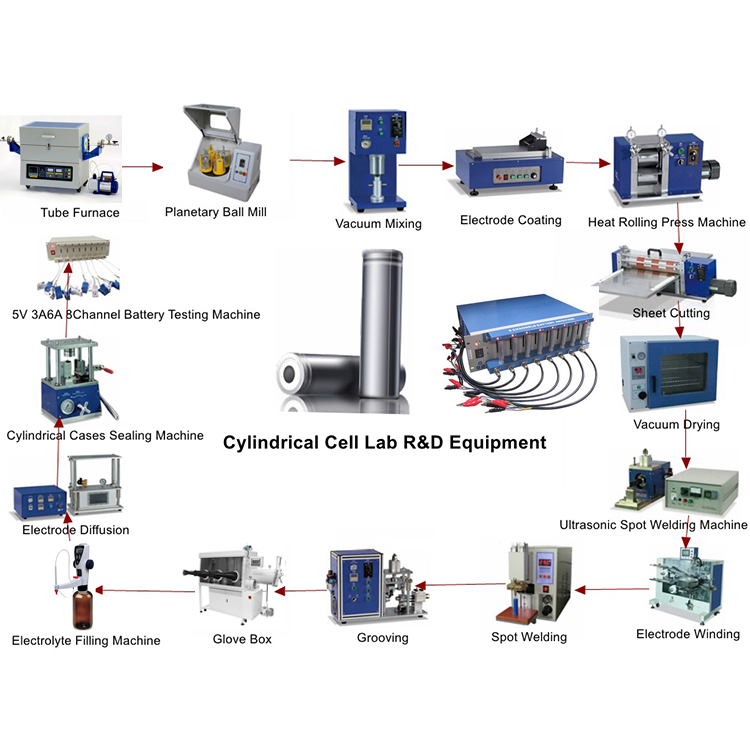

Jingtong Battery Equipments provides a full set of cylindrical battery-producing machines/equipment from mixing to the last testing process.

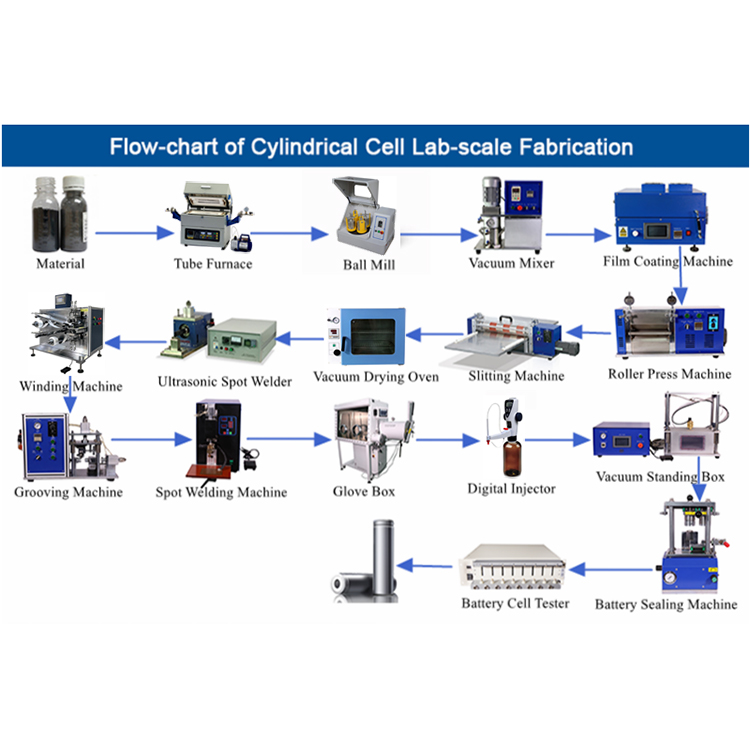

Jingtong Battery Equipments provides a full set of cylindrical cell battery-producing equipment from mixing to last testing equipment, including the tub furnace, ball mill, vacuum mixer, electrode coating machine, electrode rolling press machine.

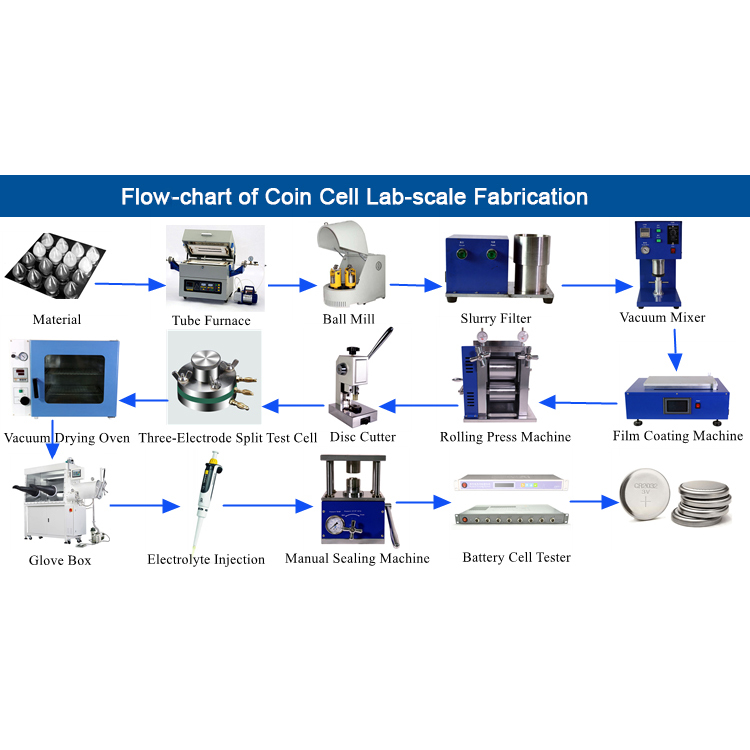

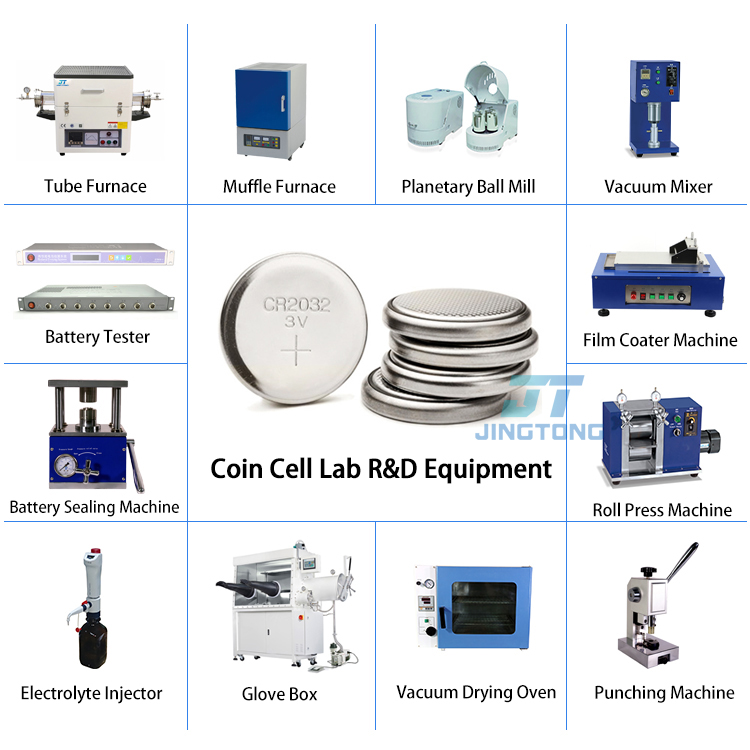

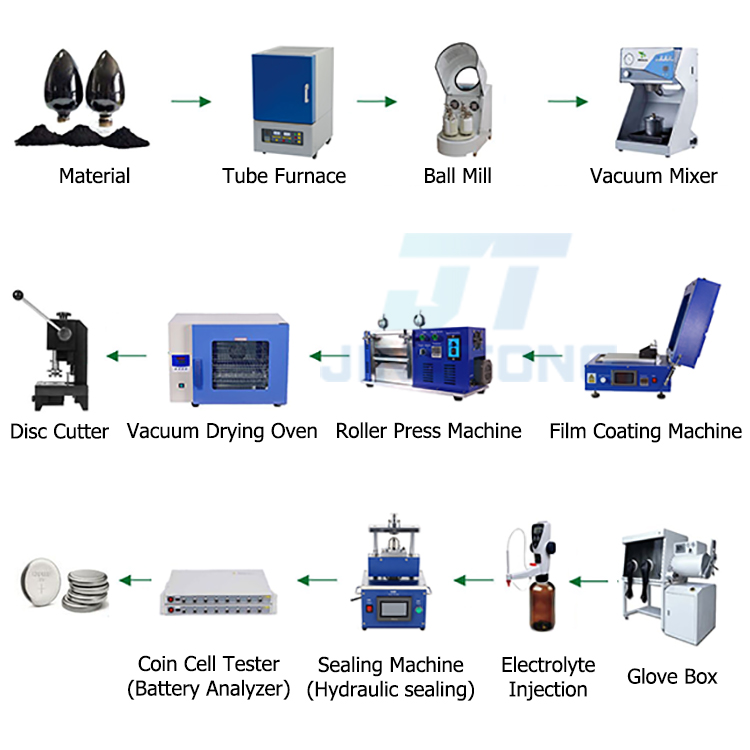

Jingtong Battery Equipments provides a full set of coin cell battery-producing machines/equipment from mixing to the last testing process.

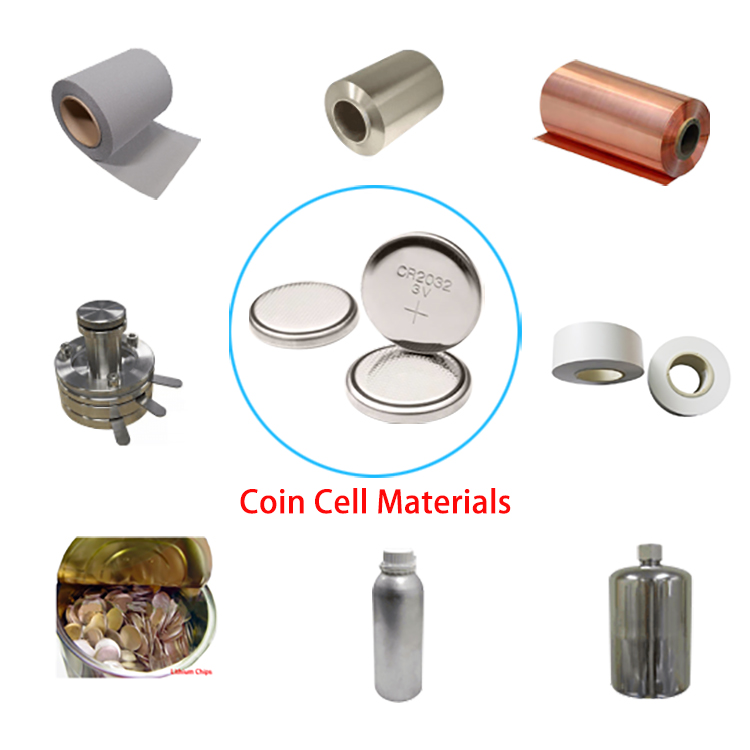

Jingtong Battery Equipments provides metal and chemical materials that are used to make coin cells, if you want more details about the materials, please contact us without hesitation.

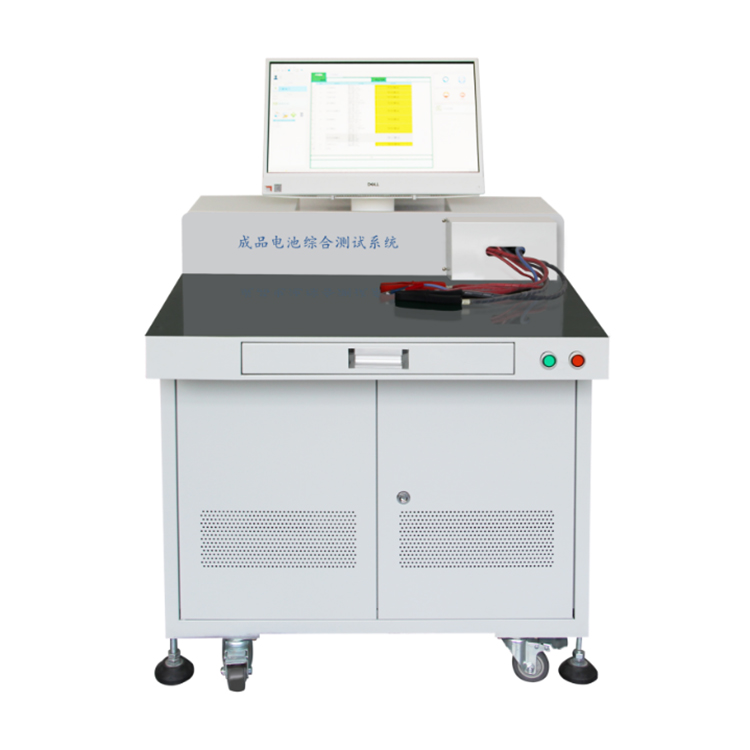

The finished battery pack comprehensive general testing machine is used to quickly and accurately test the performance of the finished battery pack. The main test items are open circuit voltage, AC internal resistance. etc.
The desktop battery BMS Tester is for finished batteries is fast and accurate equipment for testing the performance of finished batteries.

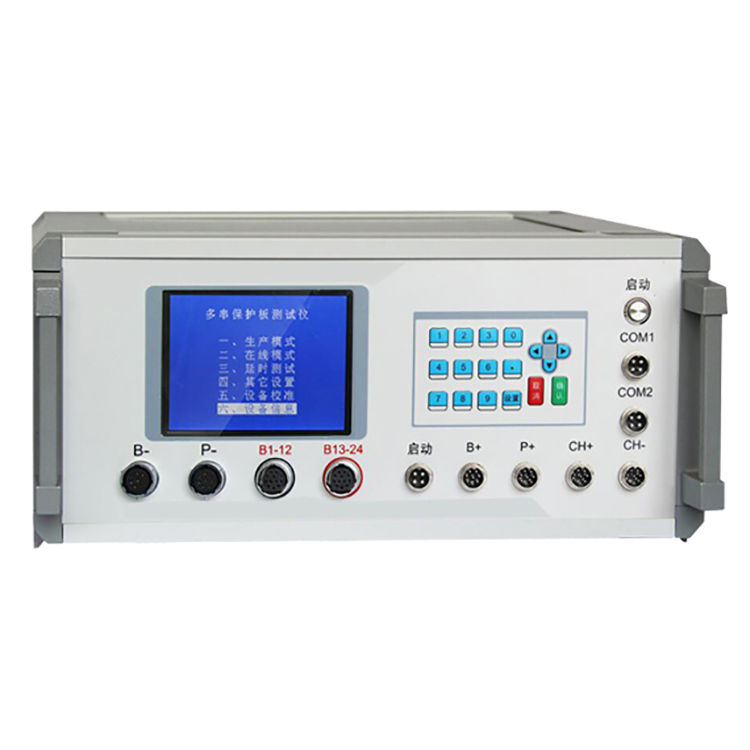

This lithium battery pack BMS tester is mainly used to detect whether the functional indexes of the power battery protection board are within the parameter range, so as to provide a set of detection standards for staff.
The Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
Jingtong Industry can provide custom pouch cell case-forming services according to your requirement.We also provide customer services according to your requirements to design the new pouch die, but you need to pay for the die sinking cost.

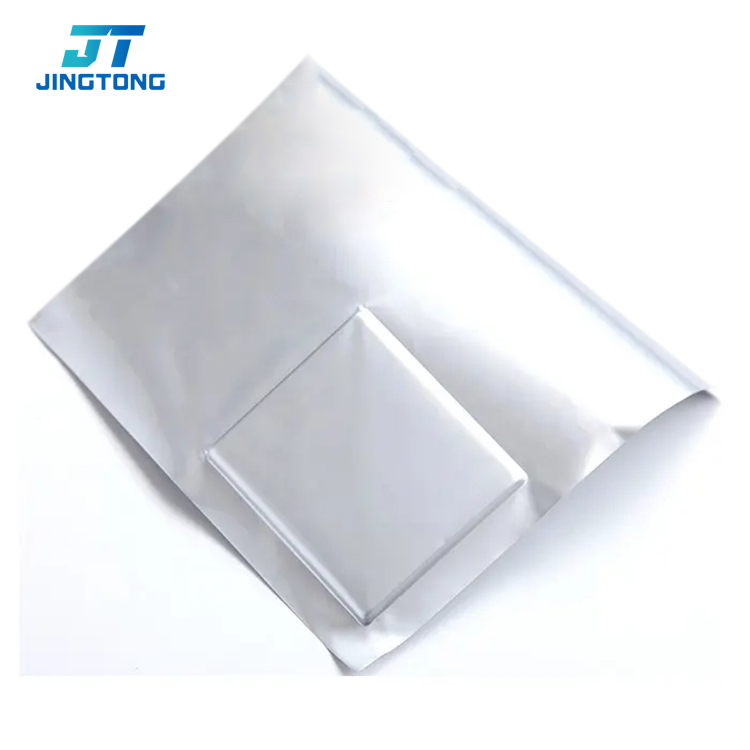

Aluminum laminated film is one of the five major materials of lithium-ion batteries, and it is pouch lithium battery packaging material.

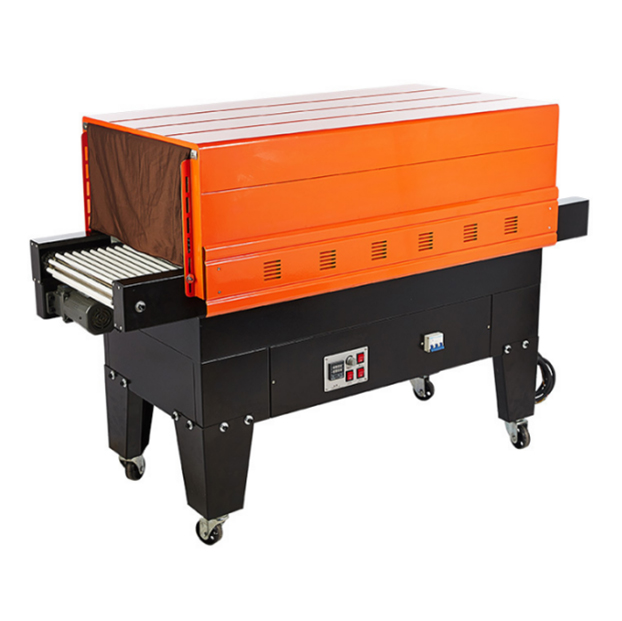

The PVC/POF Heat Shrinking Machine is very suitable for automatic unmanned packaging of products with an automatic packaging line, and suitable for single item packaging or packaging of items with bottom support.

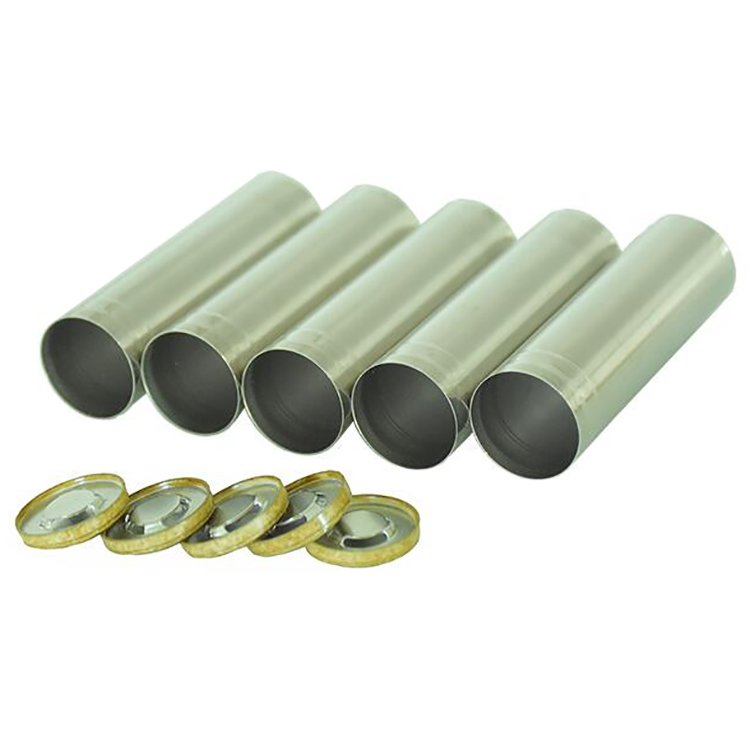

32650 Cylindrical Battery Cases with Caps used for 32650 battery research, producing, especially for powerful 32650 battery making.
