25L Laboratory Digital Vacuum Ovens With High Temperature Controller & Inner Chamber
This 25L digital vacuum oven is suitable for the drying, sterilization and heat treatment of articles in the laboratories of industrial and mining enterprises
Item No.: JT-FT02A
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

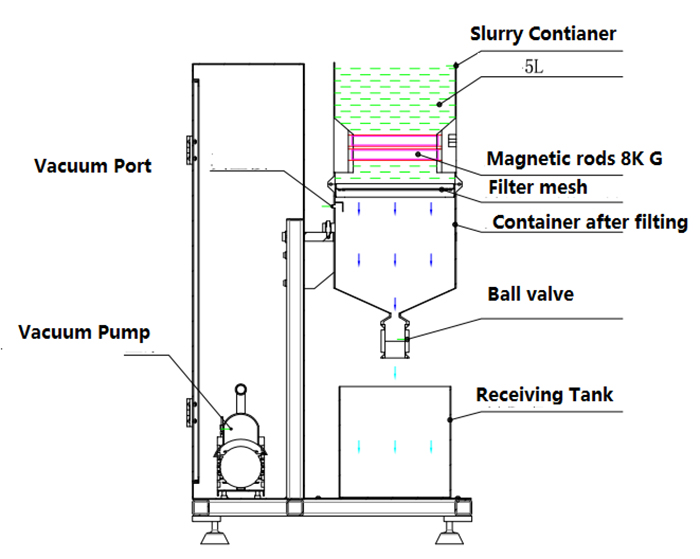

This is a CE Certified magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
Specification
Model | Magnetic de-ironing filtration system JT-FT02 |
Voltage supply | 110Vac - 240Vac universal power |
Power | 50W |
Working Temperature | <=40°C |
Process Capacity | 5L |
Magnetic Field Strength | 8000 G |
Filter | 3 mesh filters: 80, 100, 120 |
Structure | Containers made of stainless steel 304 |
Slurry Viscidity | <=15000CP |
Humidity | 0-90%RH |
Deironing Function | 8000-10000 GC |

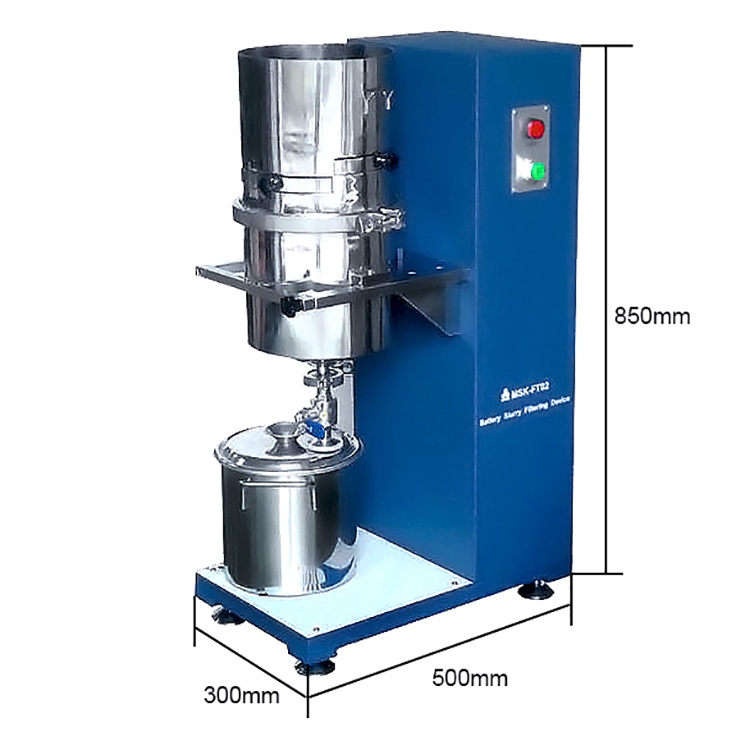

Overall Dimensions | 500mm(L) x 300mm(W) x 850mm(H) |
Shipping Weight & Dimension | 130 lbs, 48"x40"x43" |
Compliance | CE Certified The machine is safe 24VDC input, which can be used without any safety certification |
Warranty | One year limited with lifetime support |
STANDARD PACKAGE LIST
Item | Qty |
Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry | 1 set |
Receiving tank for Battery Electrode Slurry | 1 pcs |
Slurry Container | 1 pcs |
80,100,120 Filter Mesh | 3 pcs |
English Operating Manual | 1 copy |
Product Image
