Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-SF-500ML
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This battery vacuum slurry filter is mainly applied to a special filter designed for laboratory samples to filter out various hard particles with a particle size of not less than 124 microns in the slurry. The whole machine has a beautiful design and is flexible and convenient to use.
Features
1. High filtration accuracy, up to 124 microns, equipped with two types of particle filters to filter positive and negative.
2. All 304 stainless steel design, good corrosion resistance, easy to clean.
3. The filter screen with a larger filter area makes the pressure loss very low and the equipment is durable.
4. Small size and convenient operation.
5. Beautiful appearance, easy maintenance, molding and other advantages.
Specification
| Filter dimensions | 145mm X 150mm X 200mm |
| Overall dimensions of air generator | 140mm X 70mm X 150mm |
| Weight | 4Kg |
| Power adapter | AC 220V±10% 50HZ |
| Absolute vacuum | 65KPa |
| Air pump flow | 3L/Min |
| With filter | 80, 100, 150 mesh filter |
| Optional filter | below 1000 mesh |
| Capacity | 500ml |

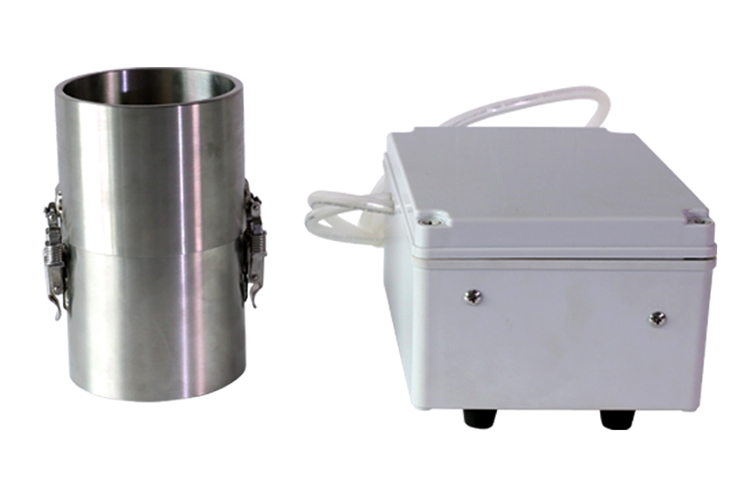

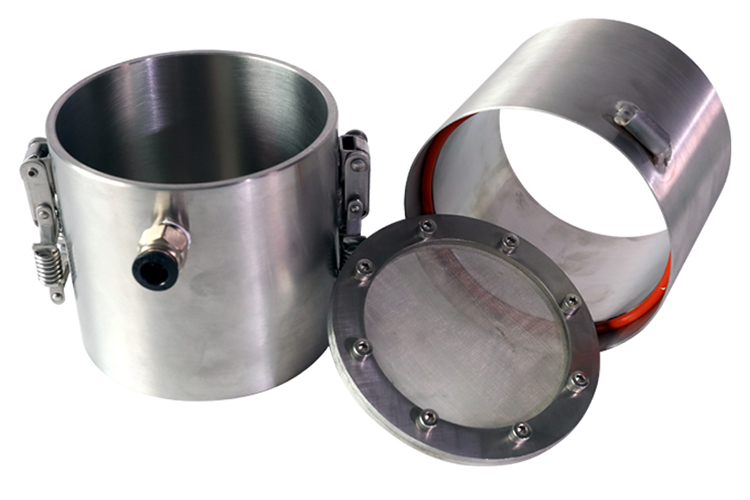

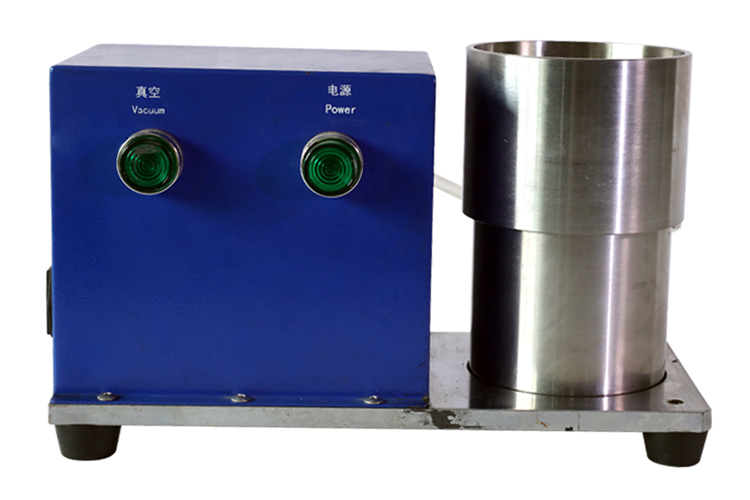

Product Image
