Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-TSS-200-1
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
The Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
The battery heat sealing machine adopts soft sealing bar, The sealing is copper on the bottom and aluminum and Silicone rubber piece on top. So mainly used in heating type sealing equipment on the top and side of soft packaging lithium-ion batteries. The device uses resistance heating to seal the head so that the aluminum-plastic film can be melted under a set pressure.
It can prepare the pouch cell for the injection of an electrolyte by sealing the side and top of the pouch cell with the tab.
Features
1. Unique safety protection and anti-scalding design, the temperature of the upper and lower irons can be adjusted through the button on the thermostat panel.
2. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products.
3. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.
4. The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately to ensure the parallelism requirements of the product after edge sealing.
5. It can be applied to the product batteries of different specifications, and the adjustment is simple and convenient, without adjustment and replacement of the seal head.
6. The frame is made of aluminum profile, which has a beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.
7. Small size, smooth and even seal marks, beautiful appearance of the edge seal; soft package heat sealing machine equipment.
Specification
Model No. | JT-TSS-200 |
| The longest seal length | 200mm |
| Air bag side width | 15~90mm |
| Seal width | standard 5mm±0.4 (3～10mm optional), the sealing knife can be replaced to seal other widths. |
| Side sealing thickness | 60～300um (depending on the thickness of aluminum plastic film). |
| The sealing thickness of the top pole ear | 200～700um (depending on the thickness of the aluminum plastic film). |
| Heat sealing temperature | room temperature ~ 250℃ (temperature can be set freely). |
| Temperature control accuracy | ± 2℃ |
| Main body to heat sealing edge | 1~5±0.4mm adjustable |
| Packing time | standard 2S-3S (0-99s adjustable) |
| Seal thickness accuracy (mm) | package thickness difference between any two points<15um |
| The equipment has automatic and manual operation functions | |
| Compressed air | 5～8kg/cm2 |
| Pneumatic working speed | ≥400 times/hour |
| Power | AC220V/50Hz Power: 0.5KW |
| Dimensions | L435x W335x H485mm |
| Equipment weight | 35Kg |
Working Principle
It is transmitted to the head (copper) through the resistance heating tube, and acts on the sealing material (aluminum laminated film) of lithium battery by using the heat conduction effect. Under a certain pressure, it is heated to become soft and close to the melting state to complete the compression fusion joint. The top seal and side seal can be realized without changing the mold.

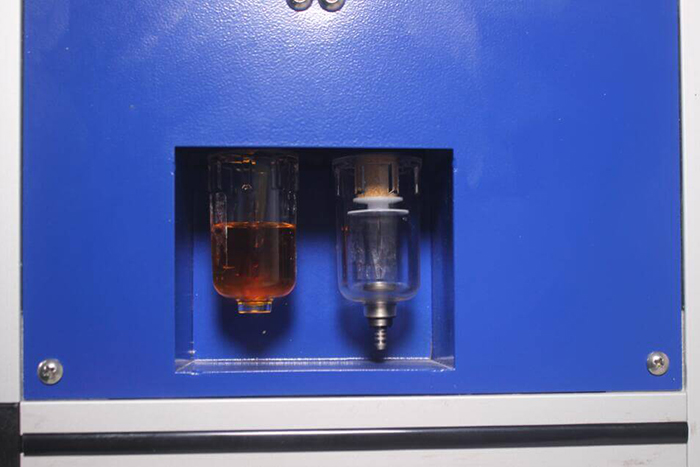

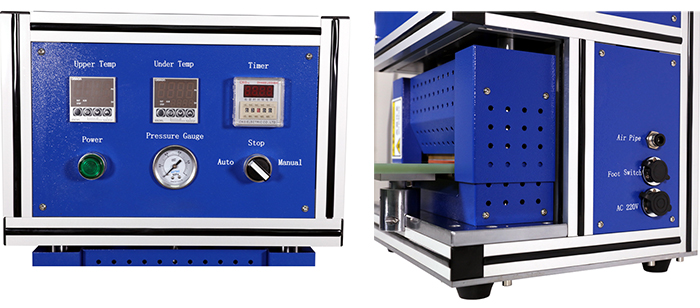

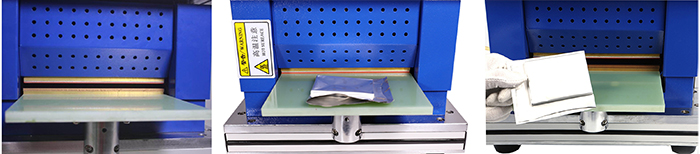

Detail
