Item No.: JT-SFM-6E-1
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
The vacuum mixing machine is designed for making large batches of the chemical compound via blending and mixing in a single container under vacuum driven by electricity only.
The vacuum mixing machine is programmable in speed, time, and rotating direction, and the water cold stainless steel tank promises high efficiency in mixing.
This vacuum mixing machine is excellent for preparing lithium battery materials LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubbles. And the processed material results in better dispersion and uniformity.
Specification
Model | Vacuum mixing machine JT-SFM-6E |
| Mixing Tank | The standard configuration is the 2L tank. 1L and 3L can be customized.(a 5L tank is also available, but stirring performance is not very good) |
Features | 2 liter 304 stainless steel container with double layer water cooling jacket. Advanced T-type sealing to keep vacuum pressure up to 12 hours. Double Step Rotary Vane Vacuum Pump, is included for immediate operation The container is opened or closed by an electric motor (no air pump is required anymore) Programmable controller to set time, speed, and rotation direction. |
Voltage | 110-240V AC single Phase, 50/60Hz (build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz) |
Rate Power | 750 W |
Rotor Rod Speed | 0 -1400 RPM variable |
Lifting | Electric motor ( no compress are pump required anymore) |
Water Requirement | 8 L/min water flow required to cool mixing tank Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket) Suggest you order recirculating water chiller by clicking the picture left to save water (water chiller is not included) |

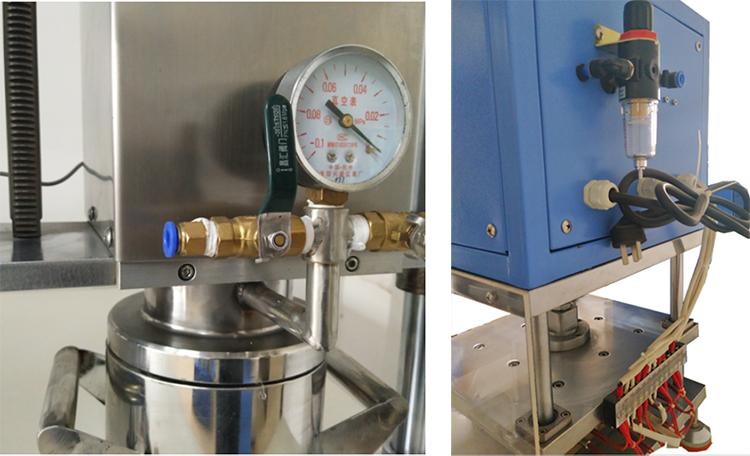

Vacuum Pump | Double Step Rotary Vane Vacuum Pump, is included The vacuum gauge is built in with a minimum vacuum level of -0.1 MPa |
304SS Container Size | 270mm O.D. x 210mm I.D. x 230mm H |

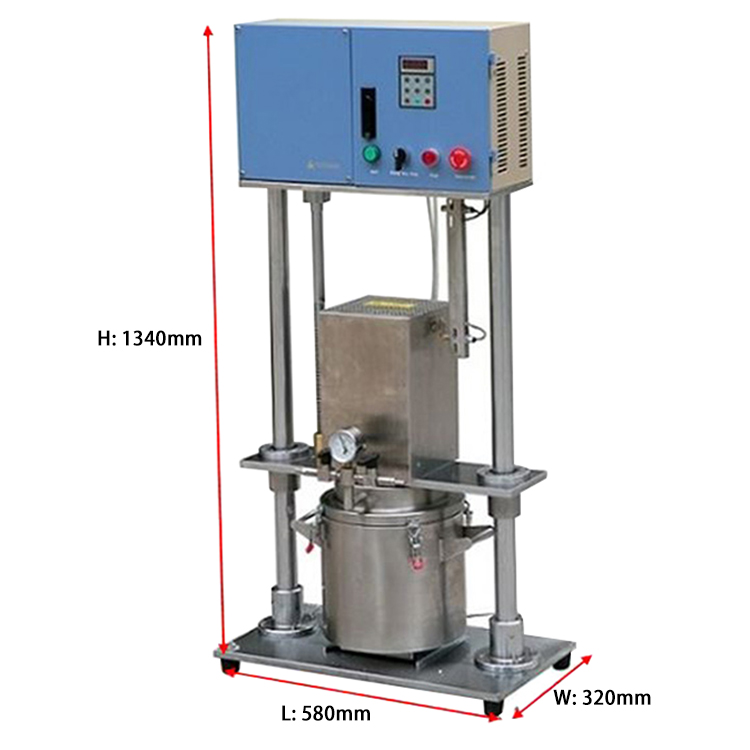

Dimensions | 580mm(L) x 320mm(W) x 1340mm(H) |
Net Weight | 119 kg (262 lbs) |
Warranty | One-year limited warranty with lifetime support |

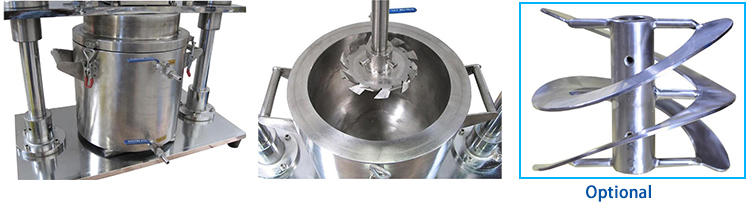

Product Detail
