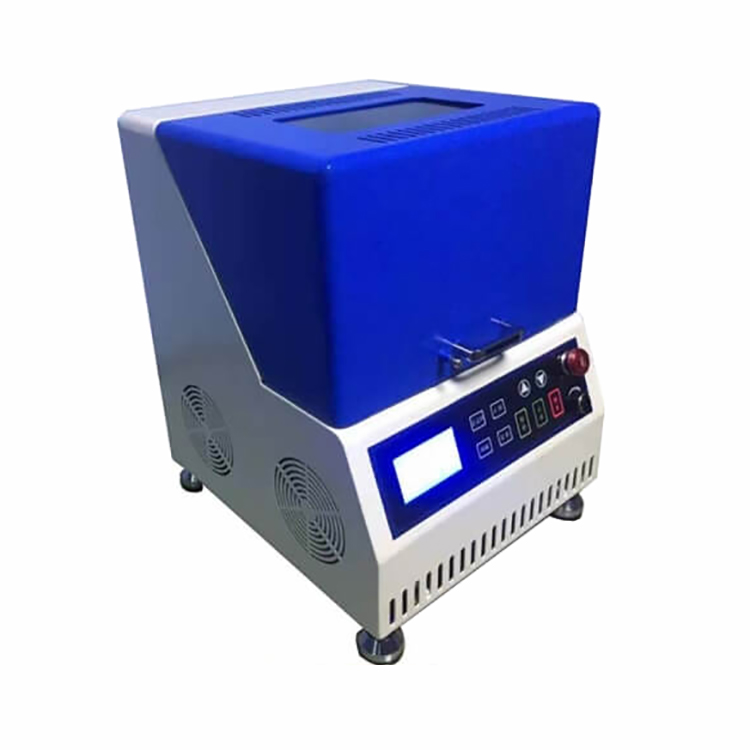

Laboratory Planetary Ball Mill Machine 2L Horizontal Planetary Ball Grinding Mill

Laboratory Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps. If choosing with an optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.

Working Principle

The 2L ball mill machine has four work positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high-speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of the dry or wet grinding methods. The smallest granularity of output power can be reached to 0.1μm or nano-scale powder.

Features

【Various Applications】Has higher force than Vertical Light Model so the powder is finer and more uniform. Used for crushing, mixing, homogenizing, colloidal grinding pharmaceuticals, food, chemicals, synthetic materials, electronics, engineering, metallurgy, glass, ceramics, biology, etc. Sample characteristics: soft/hard material, dry/moist, brittle chat, fiber material, viscous material.
【4 separate grinding positions】 Handle 4 different kinds of materials at a time. Short grinding time; Finish powder is fine: down to 0.1μm. Repeated grinding consistency is high. Please note: The grinding jars and balls are not included in the package. )
【Functions】With running, pause, reversion running, alternating positive and negative running, intermittent running, adjustable speed rolling, adjustable speed rotation, running time can be set (Grinding time, Pause time, Intermittent running time: 00:00:01 to 99:59:59), stepless speed regulation, safety protection, power failure memory, data storage multiple grinding modes to choose and many other functions.
【Details of the machine】The outer casing is made of abrasive tools, and it is treated with fine paint inside and outside. With convection heat dissipation on the side, back and front of the instrument to avoid overheating. The transparent window allows easy observation of the grinding chamber during working time. Grinding jar holders are made of 10mm seamless steel pipe, strong and durable. High-quality motors provide greater stability and safety; Muffler gear reduces the noise during operation.
【CE Certificate and Warranty】We provide ONE YEAR warranty for every our customer.

Specifications

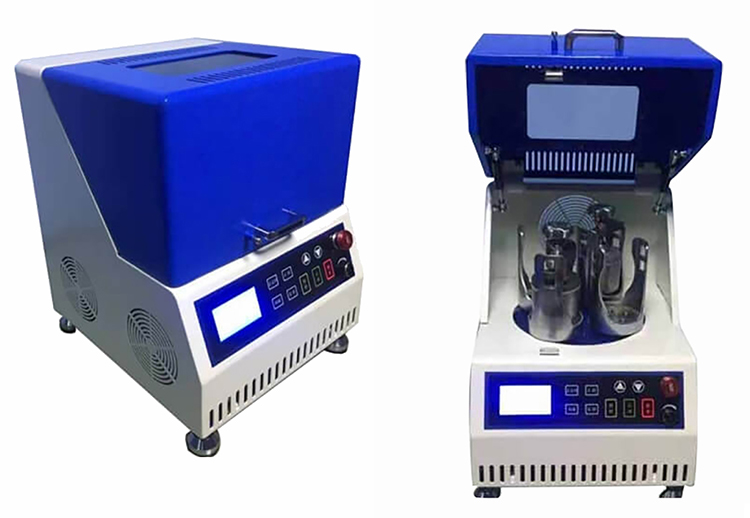

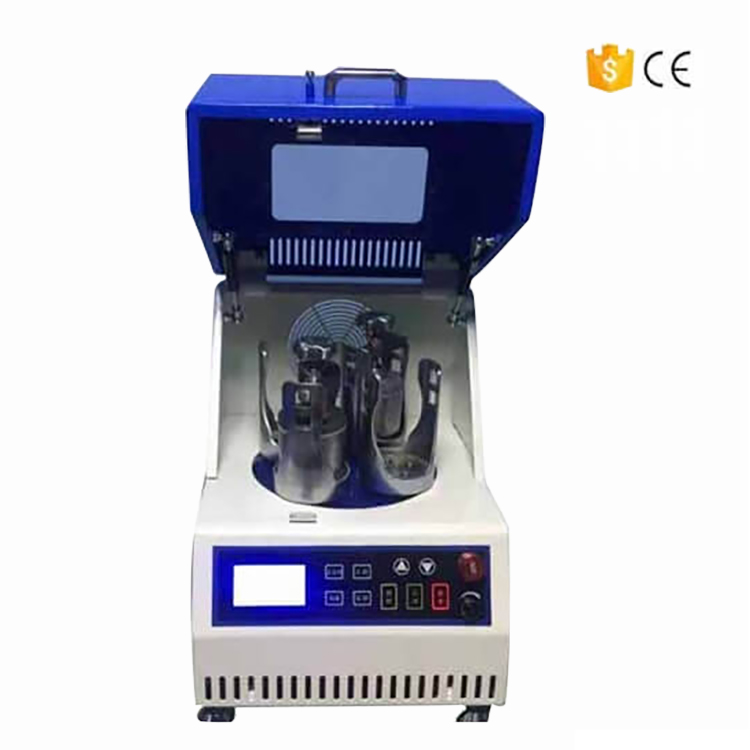

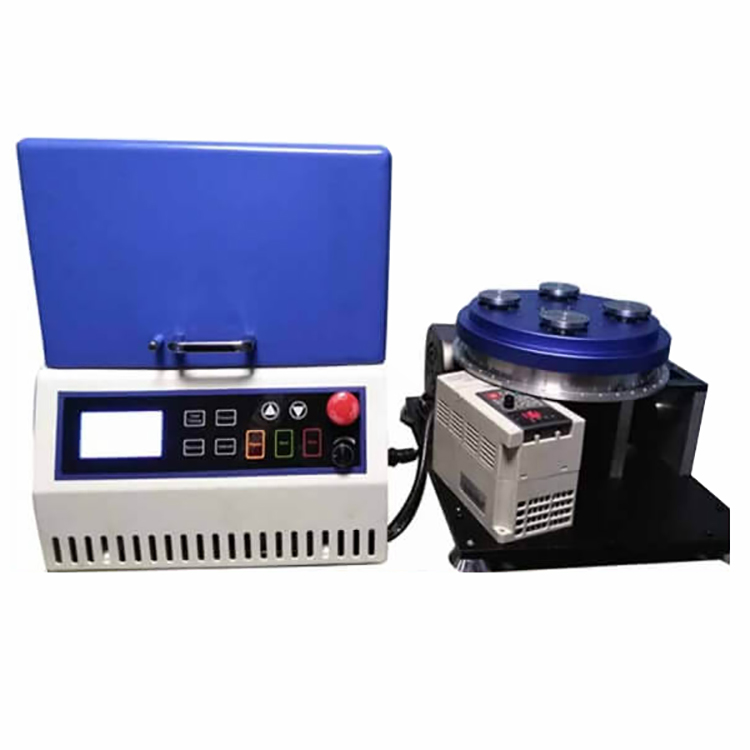

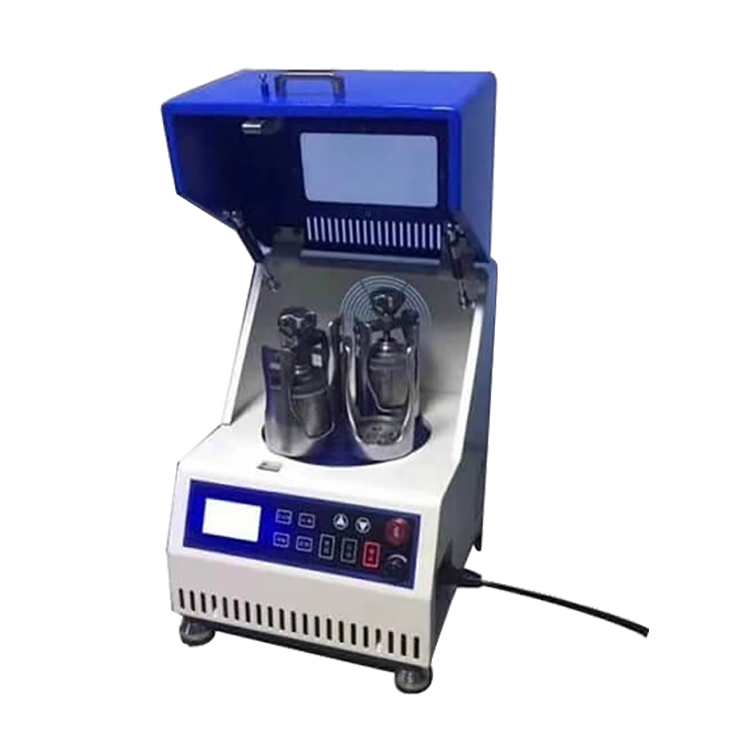

Product Image

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls, tungsten mill balls, etc.

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear-resistant steel balls, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
