Item No.: XQM-4
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Features
1. Ideal for wet or dry grinding application
2. Automatic and programmable control with LED display
3. Multiple grinding modes to choose
4. High Uniformity and excellent repeatability
5. Four samples with different sizes and materials in one experiment
6. Cooling of the grinding chamber with a built-in fan for long grinding times
Product Name: | Full Directional Planetary Ball Mill | Model No.: | XQM-4 |
|---|---|---|---|
Total Volume: | 4000ml | Rotate Speed: | 70-670 Rpm |
Speed Control: | Frequency Control | Voltage: | 220V-50Hz |
Power: | 0.75kW |
Application Areas
Application Area of Best price Small Lab Planetary Ball Mill with output 0.1 microns:
1. Geology and Mineralogy: rock, gravel, sand, minerals
2. Ceramics: porcelain, sintered ceramics, clay, fireclay
3. Chemistry: pesticides, fertilizers, salts, inorganic and organic materials
4. Biology: plants, leaves, freeze-dried samples
5. Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
6. Metallurgy: ores, sinters
7. Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
8. Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography.
Specifications
Technical Data of Best price Small Lab Planetary Ball Mill with output 0.1 microns:
| Working Principle | impact and friction force |
| Item No. | XQM-4-220V 50Hz |
| Compatible Non-Vacuum Grinding Jars | (50ml~1000ml) * 4 |
| Compatible Vacuum Grinding Jars | 500ml *4 grinding jars |
| Operation Mode | 2 or 4 grinding jars working simultaneously |
| Feeding Granularity | Soil materials < 10mm, others materials < 3mm |
| Discharging Granularity | down to 0.1μm |
| Sample Type | hard, medium-hard, soft, fibrous, brittle, moist |
| Rotational Speed of Grinding Jar | 670rpm |
| Rotational Speed Ratio (planetary disk/jar) | 1 : -2 |
| Drive Mode | gear drive and belt drive |
| Speed Control | stepless speed regulation |
| Electrical Details | 220VAC, 50Hz, 0.75KW, |
| Max Continuous Grinding Time (full-load) | 72hours |
| Weight (Net /Gross) | 320KG /360KG |
| Dimension (L*W*H) | 1330*770*850mm |
| Package (L*W*H) | 1350*870*1050mm |

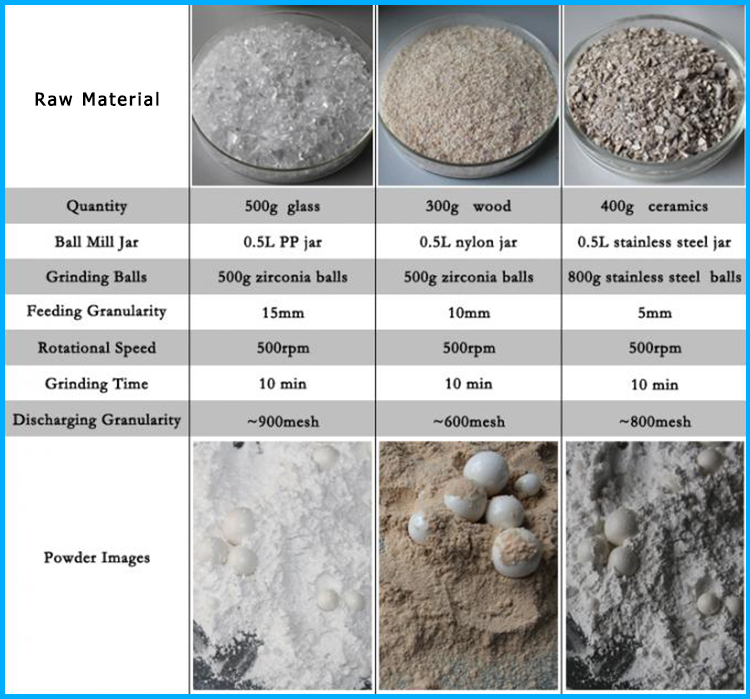

Product Effects
Remarks:
Please note: for this Planetary Ball Mill, you require two or four grinding jars of your choice and the corresponding number of grinding balls. The grinding jar material must be harder than the material to be ground. In normal cases, grinding jars and balls of the same material are used. To shorten the grinding time, larger or heavier grinding jars and grinding balls with a higher density can be used.
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
