Table Top Lab Roller Jar Mill Wet and Dry Micron Powder Grinding Jar Rolling Ball Mill
This wet and dry lab roller ball mill is a kind of roller jar mill equipment used for ultra-fine grinding and mixing for laboratory and small batch production.
Item No.: JT-PBM-2L
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This 2L vertical ball mill has 4*500ml Mixing Jar, it is mixed, fine grinding, sample preparation, and dispersion of mano material, new product development and small batch production of high technology materials necessary device.
The product has the advantages of small volume, complete function, high efficiency, low noise.
Features
1. Elegant design, easy to operate
2. Ideal for wet or dry grinding application
3. Automatic and programmable control with LED display
4. multiple grinding modes to choose
5. High Uniformity and excellent repeatability
6. Fast rotational speed, high efficiency and fine granularity
Usage
For higher and junior colleges, scientific research units and enterprises laboratory fast in batches of sample grinding to colloidal fineness (minimum of up to 0.1 M), and for mixing, homogenizing and dispersion; widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, cosmetics, environmental protection and other research and industry sector.
Specifications
Name | 2L Planetary Vertical Ball Mill |
Model | CZ-PBM-2L |
Capacity | 0.5*4=2L |
Style | Planetary |

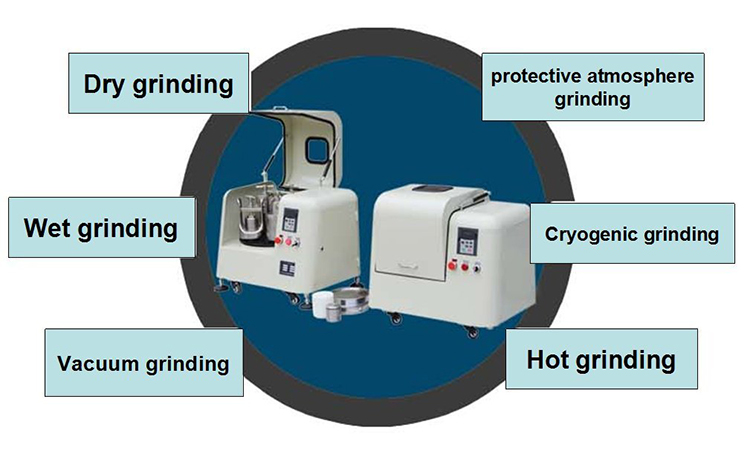

Grinding ways | Dry grinding /wet grinding/High energy alloyed grinding/vacuum grinding low temperature grinding for optional |
Loading and unloading method | Intermittent type |
Transmission mode: | Gear drive |
Speed control mode | Frequency conversion speed regulation |
Control system | Frequency conversion control system, touch screen control system |
Speed rate(r/min) | 2:1 |
The revolution speed(r/min): | 5-400 |
Rotation speed(r/min): | 10-800 |
Bite: | 4 bites |
Rated voltage(V): | 220 |
Rated power(W): | 1500 |
Frequency(Hz) | 50 |
Long run time(h): | 100 |
Run time(h): | 0-9999 |
Multi section speed setting: | 7 section |
Feed particle size(mm) | <15mm, Hard material <3mm |
Grain size(μm): | 0.1μm, or 100nm |

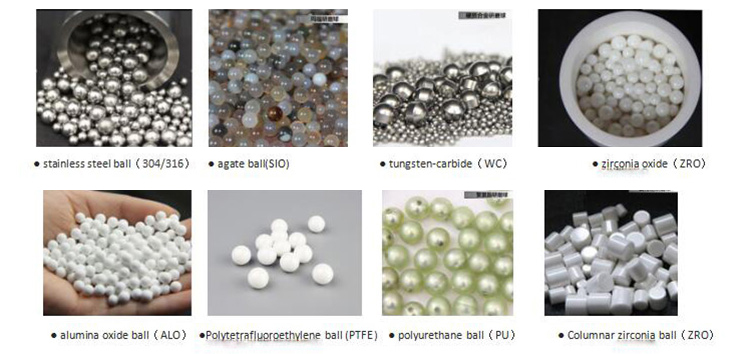

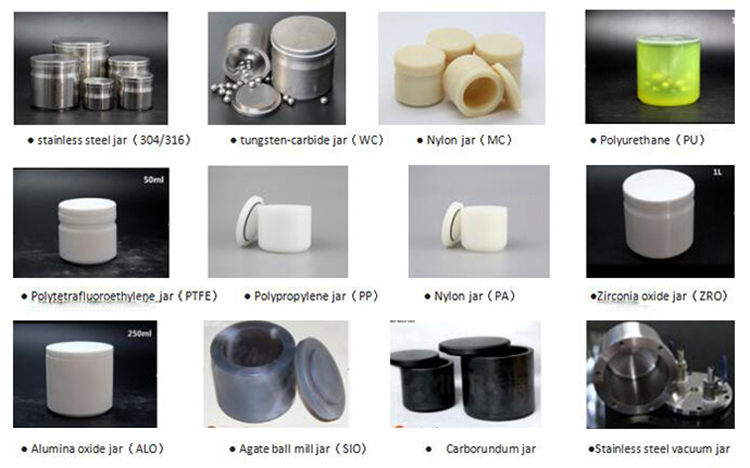

Ball mill material | Agate, zirconia, alumina, hard alloy, stainless steel, high chrome steel, nylon, PP tank, PTFE, polyurethane, custom |
Ball size(mm): | 0.5,1,2,3,5,7,10,15,20 |
Ball ratio: | (2~10):1 |
Net Weight: | 80KG |
Product Detail
