Item No.: XQM 0.2-200L
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
1. Explanation and Principle
Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps. If choosing with an optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.
Working Principle:

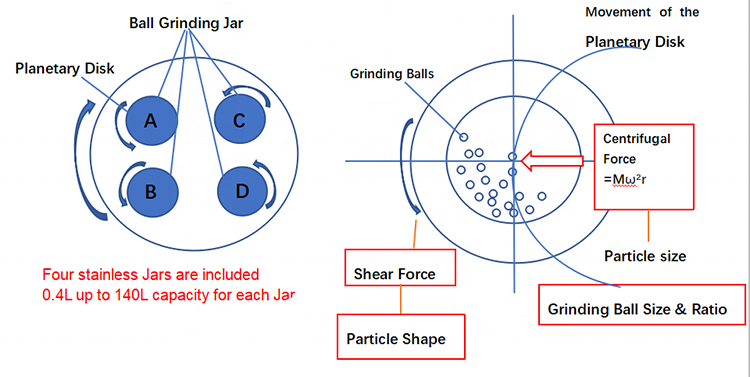

When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials.
It has 3 types of mill methods: dry mill; wet mill; vacuum mill.
Two or four grinding jars can work together.
(Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to the customer's feedback, minimum granularity can be as small as 0.1 um).
2. Application Field
The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.
3. Sample Testing
Application
1). Content requirements
(1) Application field: Ceramics
(2) Material / raw material: alumina powder
(3) Feed particle size: 100 μ M
(4) Feed quantity: 100g
(5) Material properties: hard and brittle
(6) Customer requirements: < 5 μ M
(7) Sequential analysis: granularity analysis
2). Scheme:

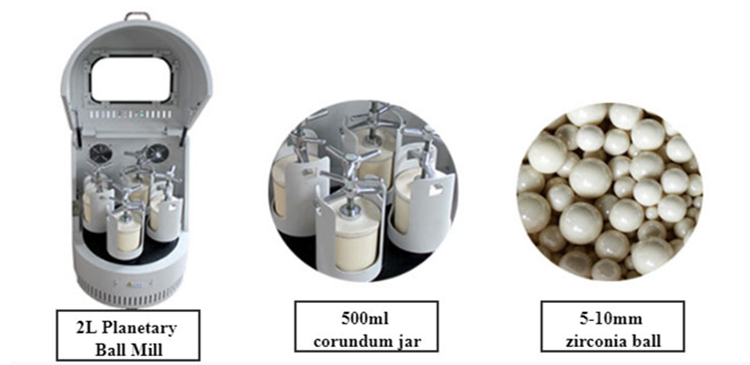

(1) Equipment (instrument) selection: 2L planetary ball mill
(2) Jar and ball configuration: 500ml corundum jar; 5-10mm zirconia ball
(3) Operation parameters: rotation 500 rpm, alternate operation of positive and negative rotation every 30 minutes
(4) Result (suggestion): planetary ball mill xqm-2 can be used for grinding
(5) Grinding time: 4 hours
(6) Grinding result: 87% < 5 μ M
4. Machine Design

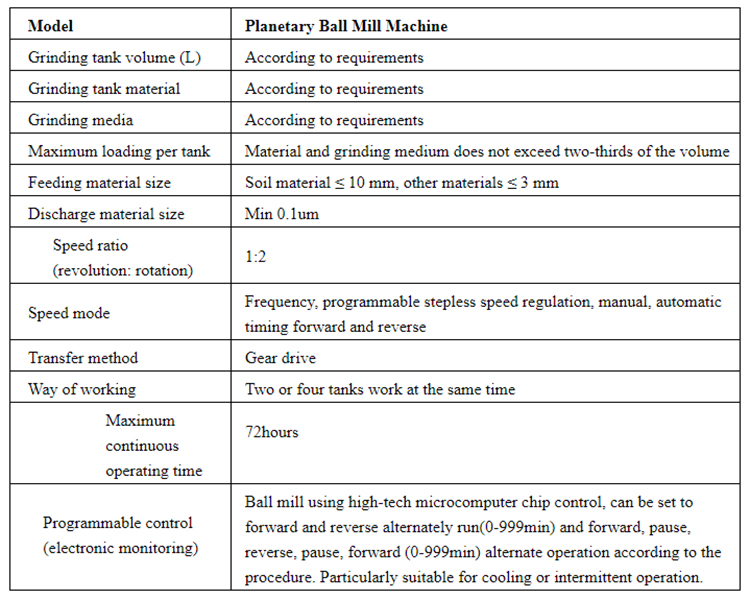

Specifications
| Model | Volume | Specification of jar can be matched | Qty (pcs) | Selection Type of Jar |
| XQM-0.2 | 0.2L | 10-50mL | 2/4 | Aluminum Jar; Agate Jar Stainless Steel Jar Zirconia Jar Tungsten Carbide Jar PTFE Jar Vacuum Jar selectable |
| XQM-0.4 | 0.4L | 50-100 mL | 2/4 | |
| XQM-1 | 1L | 50-250mL | 2/4 | |
| XQM-2 | 2L | 50-500mL | 2/4 | |
| XQM-4 | 4L | 250-1000 mL | 2/4 | |
| XQM-8 | 8L | 1-2L | 2/4 | |
| XQM-10 | 10L | 1-2.5 L | 2/4 | |
| XQM-12 | 12L | 1-3L | 2/4 | |
| XQM-16 | 16L | 2-4 L | 2/4 | |
| XQM-20 | 20L | 2-5 L | 2/4 | |
| XQM-40 | 40L | 5-10L | 2/4 | |
| XQM-60 | 60L | 10-15 L | 2/4 | |
| XQM-100 | 100L | 20-25L | 2/4 |
| Model | Adjustable speed (revolution) (rpm) | Adjustable speed (rotation) (rpm) | Total time of operataion setting (min) | Alternate running time (min) |
| XQM-0.2 | 60-580 | 120-1160 | 1-9999 | 1-999 |
| XQM-0.4 | 47-465 | 94-930 | 1-9999 | 1-999 |
| XQM-1 | 35-370 | 70-740 | 1-9999 | 1-999 |
| XQM-2 | 35-370 | 70-740 | 1-9999 | 1-999 |
| XQM-4 | 35-370 | 70-740 | 1-9999 | 1-999 |
| XQM-8 | 35-320 | 70-640 | 1-9999 | 1-999 |
| XQM-10 | 35-320 | 70-640 | 1-9999 | 1-999 |
| XQM-12 | 35-320 | 70-640 | 1-9999 | 1-999 |
| XQM-16 | 35-255 | 70-510 | 1-9999 | 1-999 |
| XQM-20 | 25-215 | 50-430 | 1-9999 | 1-999 |
| XQM-40 | 20-195 | 40-390 | 1-9999 | 1-999 |
| XQM-60 | 27-174 | 40-260 | 1-9999 | 1-999 |
| XQM-100 | 27-160 | 40-240 | 1-9999 | 1-999 |
Selection of size of planetary ball mill:
According to the number of materials to be ground, choose the size of the planetary mill.
The calculation formula for size selection of planetary ball mill: a = C /ρ* 3.
Note: A is the size of the planetary mill (unit: l), C is the mass of primary grinding material (unit: kg), ρis the bulk density of grinding material (unit: kg /L).
For example, if 2kg of material is ground at one time and the bulk density of the material is 1.5kg/L, the size of the planetary mill in row a = 2/ 1.5*3 = 4L is selected.
Reference table for selection of planetary ball mill style and special function configuration
Model selection of planetary ball mill | Nature of abrasive material |
Vertical planetary mill | Grinding of general materials, no special requirements |
Comprehensive planetary mill or horizontal planetary mill | The material is easy to sink and bind |
Double planetary mill | Ultra high speed and ultra-fine grinding are required |
With air cooling device or liquid nitrogen device | The grinding process is hot and needs to be cooled |
Equipped with vacuum ball milling tank | Easy to oxidize, requiring vacuum environment or atmosphere protection |
With heating device | High temperature grinding required |
Planetary ball mill style and special function configuration options:
Planetary ball mill is divided into vertical, horizontal, comprehensive, double planet four styles, according to the material grinding requirements, choose the corresponding styles, each style of products can be equipped with air cooling or heating equipment according to the grinding material temperature requirements.
Product Images

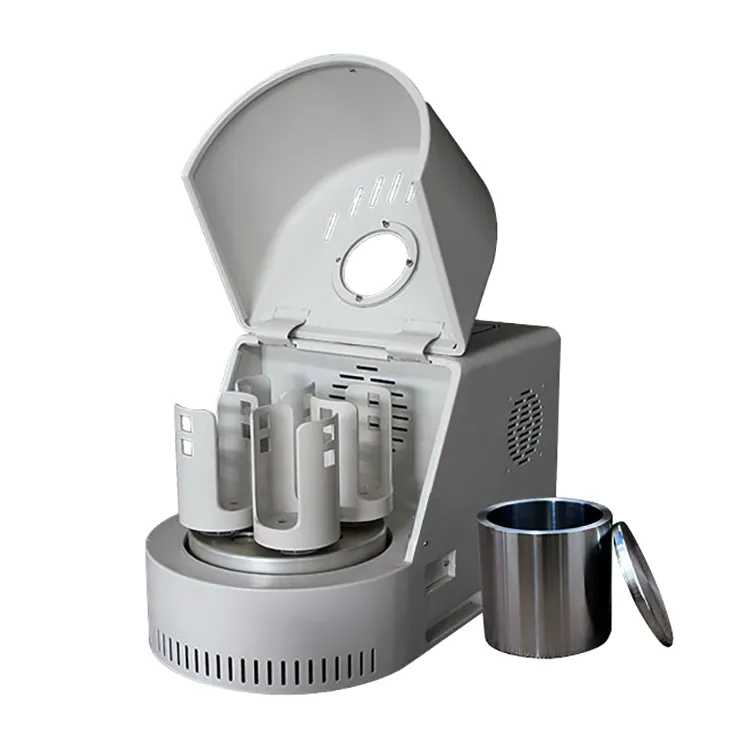

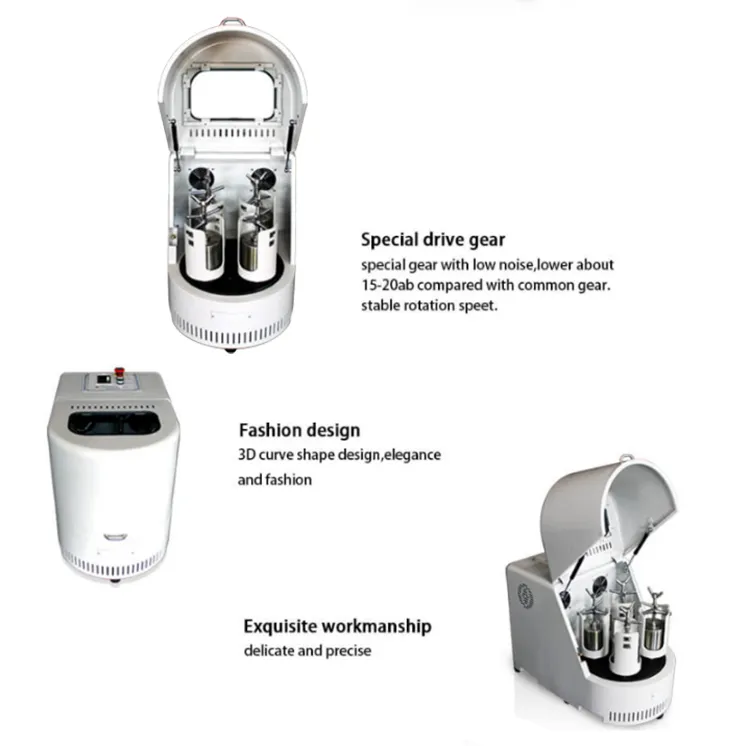

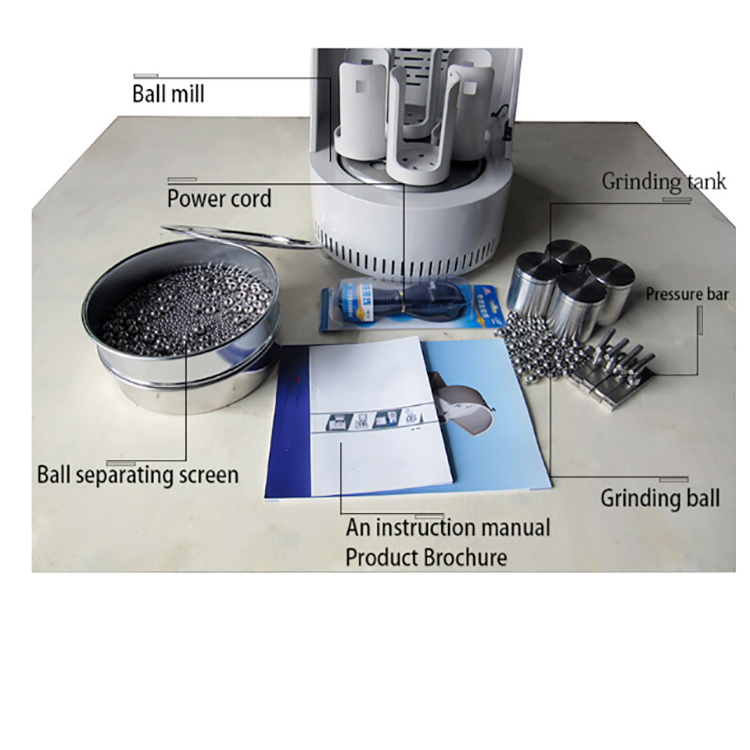

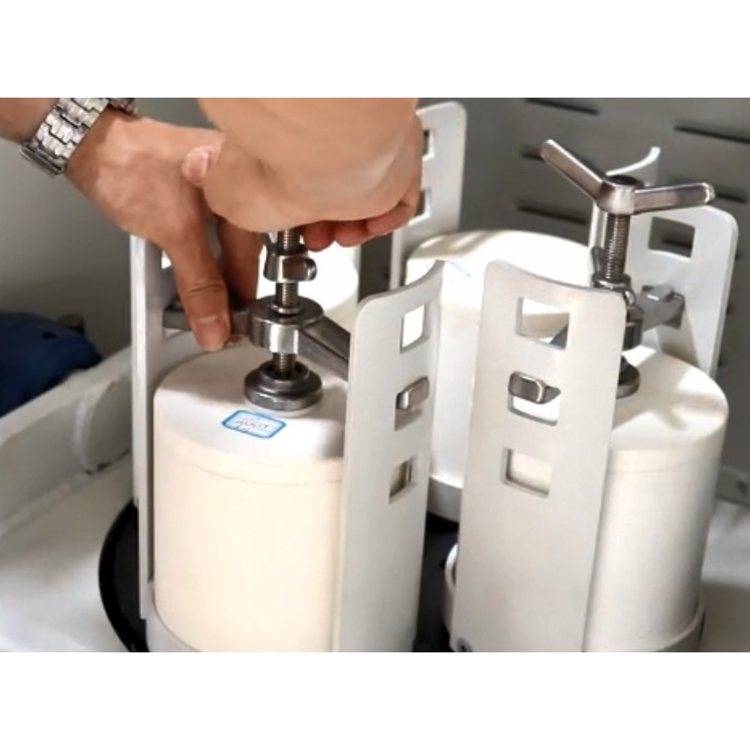

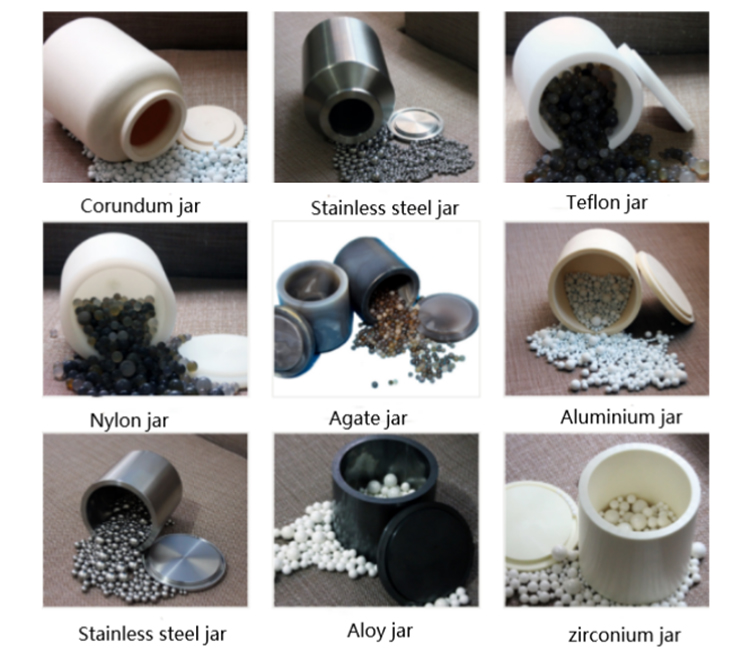

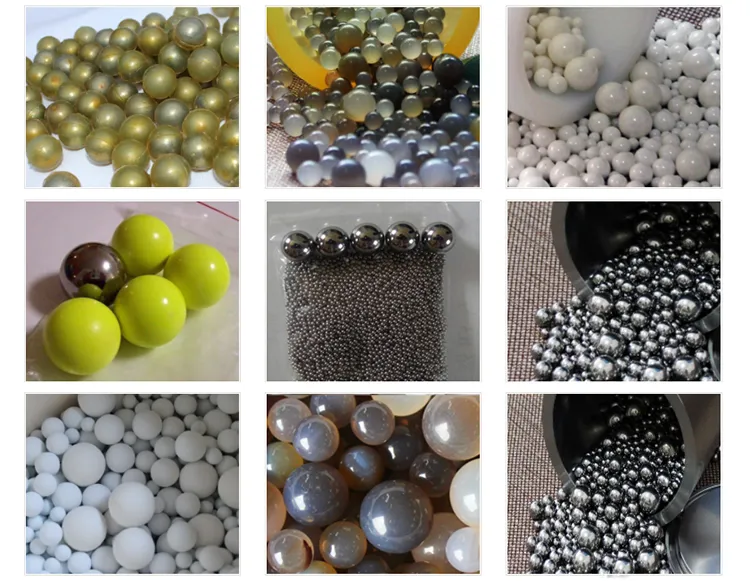

Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls, tungsten mill balls, etc.
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
This mixer equipment is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing.
This vacuum mixer is high-efficiency equipment integrating vacuum mixing and dispersion. It is suitable for the positive and negative slurry mixing process in the battery experiment process

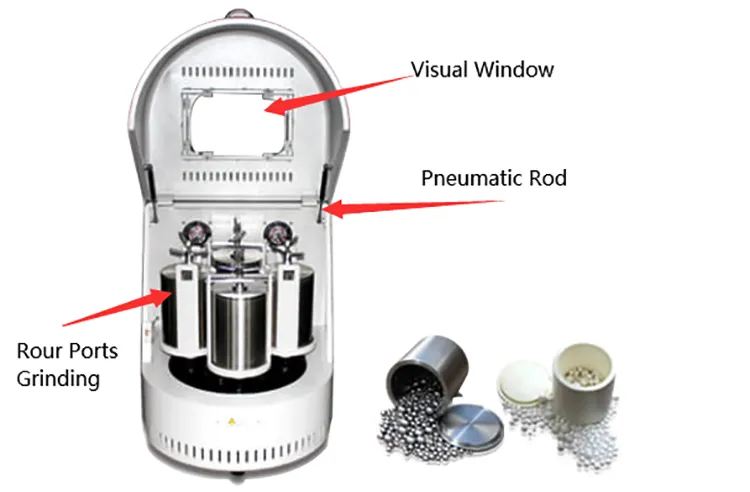

QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360-degree rotations. And the balls in the tanks grind and mix samples in high-speed movement.
The planetary ball mill machine is an optimal device for mixing, fine grinding, sample preparation, new product research and small batch production of high-tech materials.

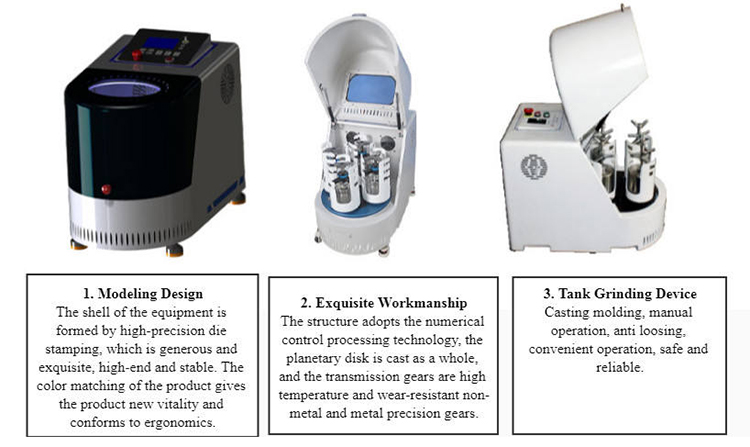

This small vertical square-size planetary ball mill machine with professional appearance modeling design, the shell is made of high-precision mold stamping forming, high-precision laser cutting, CNC bending forming, generous and delicate, high-end sedate.

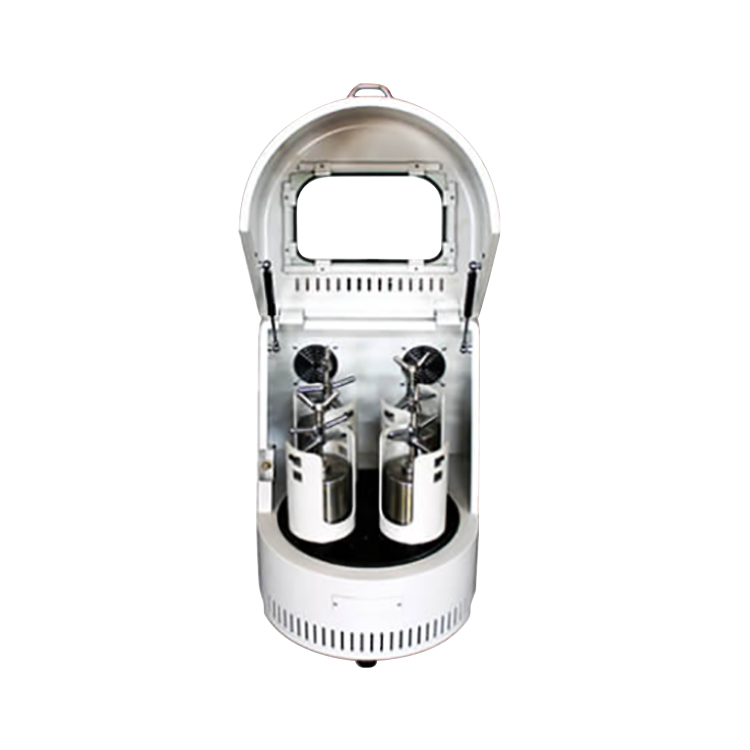

The small size 0.2L lab Planetary Ball Mill is necessary equipment used for high-tech materials powder milling, fine grinding, powder mixing, nano powder making, new product development and small batch production.
Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps.
Jingtong Industry supplies customizable planetary ball mills and planetary milling grinder equipment for Lithium-ion battery research.
Laboratory Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps.
This 0.4L Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, suitable for rapid, efficient and accurate sample development, mixing and homogenization in the laboratory.
Laboratory Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps.
This 2L vertical ball mill has 4*500ml Mixing Jar, it is mixed, fine grinding, sample preparation, and dispersion of mano material, new product development and small batch production of high technology materials necessary device.
This planetary vacuum mixer is high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process.
This Planetary Vacuum Mixer with 5-liter containers and complete accessories for immediate use. The Slurry vacuum mixer produces multi-movements during stirring, including, revolution and rotation.
This Planetary Vacuum Mixer with 5-liter containers and complete accessories for immediate use. The Slurry vacuum mixer produces multi-movements during stirring, including, revolution and rotation.
