Cooling Air Controlled Nano Powder Making Laboratory Type Cryogenic Grinder
Colding air planetary ball mill is composed of planetary ball mill and cold-air device.
Item No.: XQM-2C
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Cooling Air Controlled Nano Powder Making Laboratory Type Cryogenic Grinder Ball Mill
Overview of cryogenic ball mill

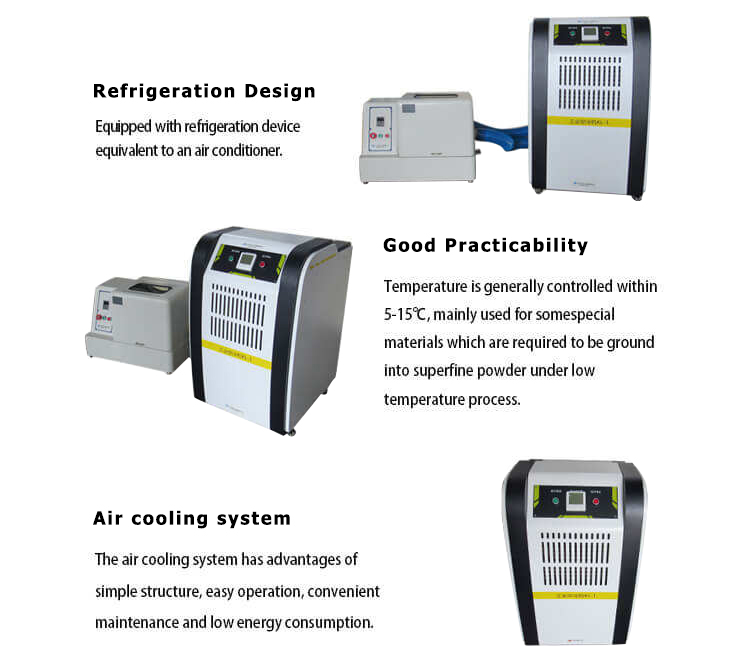

Colding air planetary ball mill is composed of planetary ball mill and cold-air device. Cycling of cold air quickly takes away the heat generated by grinding by means of air conditioning refrigeration principle, and temperature inside the grinding space can be controlled at 2-10 ℃ according to the temperature difference of working environment. Such a cold-air device can be also applied to the assembly of other models like vertical ball mill, horizontal ball mill, 360-degree ball mill and dual ball mill.
Working Principle of cryogenic ball mill

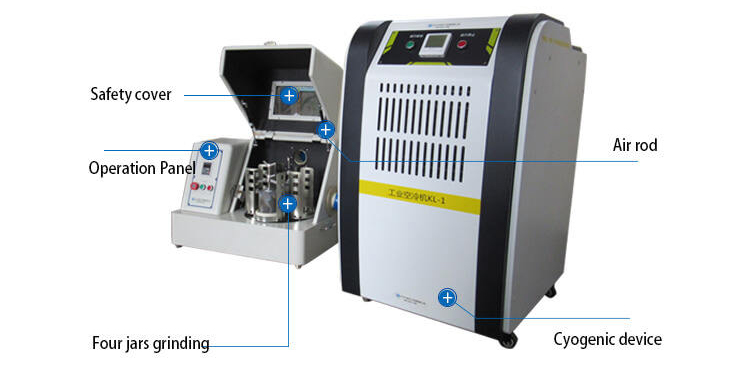

Cryogenic planetary ball mill is composed of planetary ball mill and refrigeration device. Most of the materials are heating up because of friction and exothermal reaction in process of grinding at high speed, which may cause changes in the chemical and physical properties of materials and lead to the negative effects of grinding. The Cryogenic planetary ball mill is mainly used for grinding materials that need to control their temperature.
Performance of cryogenic ball mill
| Transmission Mode | Gear Drive |
| Working Mode | 2 or 4 pots can be used each time |
| Max Volume of Load | Two-thirds of pot's volume |
| Volume of Grinding Pot | 0.05L/pot-50L/pot Total Volume: 0.2L-200L |
| Feed Size | Soft and crispy material ≤10mm, Other materials ≤3mm |
| Output Granularity | Minimum granularity can be reached to 0.1μm |
| Adjusting Mode of Rotate Speed | Frequency converter with step-less speed regulation |
Technical Parameters of Cryogenic Grinder
Type | Total Volume of 4 Pots(L) | Max Rotate Speed(rpm) | Power (KW) | Dimension (mm) |
XQM-1(C) | 1 | 670 | 0.75 | 770*470*570 |
XQM-2(C) | 2 | 670 | 0.75 | 770*470*570 |
XQM-4(C) | 4 | 670 | 0.75 | 770*470*570 |
XQM-6(C) | 6 | 670 | 0.75 | 770*470*570 |
XQM-8(C) | 8 | 670 | 1.5 | 900*600*640 |
XQM-10(C) | 10 | 580 | 1.5 | 900*600*640 |
XQM-12(C) | 12 | 580 | 1.5 | 900*600*640 |
XQM-20(C) | 20 | 430 | 4 | 1200*760*920 |
XQM-40(C) | 40 | 390 | 5.5 | 1400*850*1030 |
XQM-60(C) | 60 | 260 | 7.5 | 1600*950*1120 |
XQM-100C) | 100 | 240 | 11 | 1750*1100*1180 |
XQM-200(C) | 200 | 190 | 18.5 | 1920*1400*1350 |

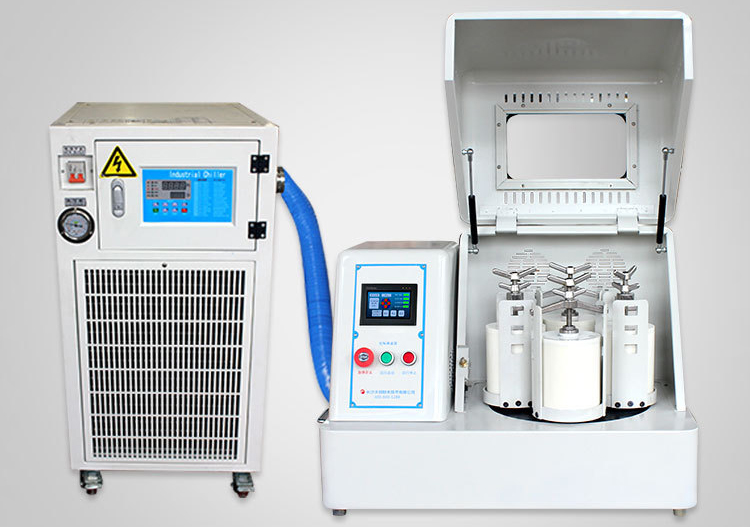

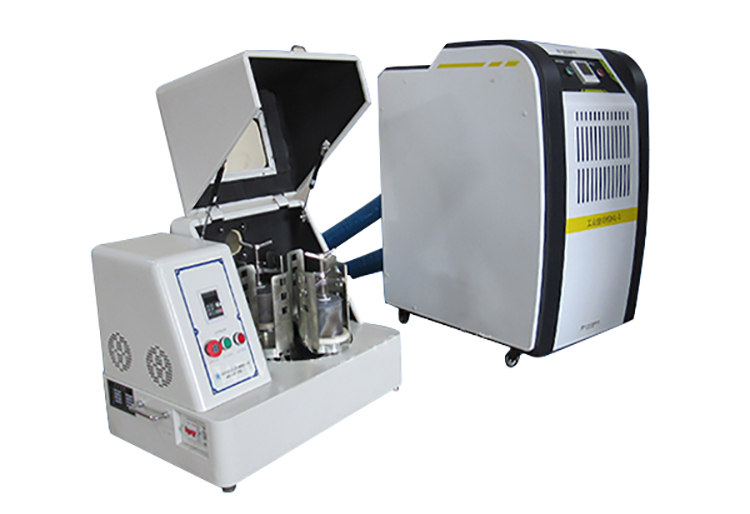

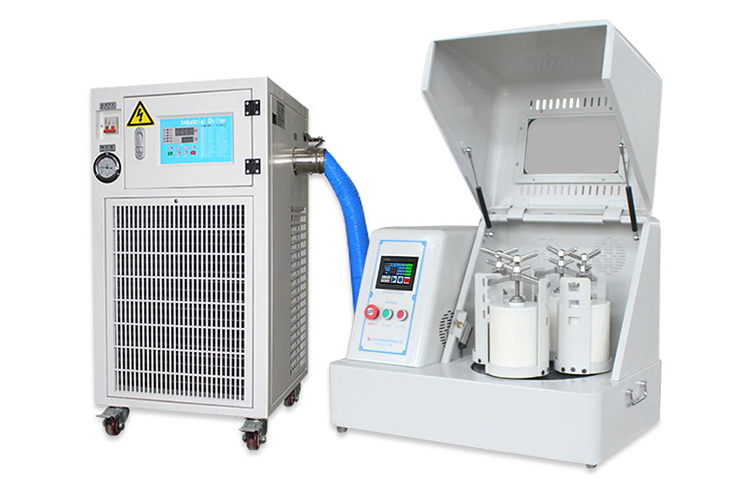

Detail Pictures
