Item No.: JT-PVM-500
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

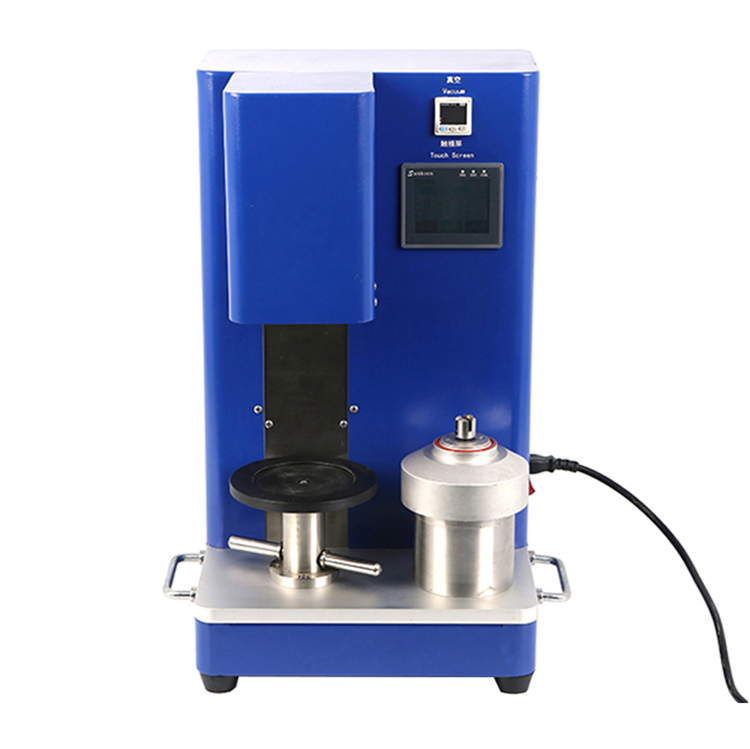

Compact Dual-Shaft Planetary Vacuum Mixer Machine For Battery Lab Research
This mixer equipment is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing the gas bubble, which can vacuum the mixing container to -0.08 MPa. This vacuum mixer machine is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab.
Small processing capacity, high viscosity coverage, and stirring well are the characteristics of the equipment.
Features

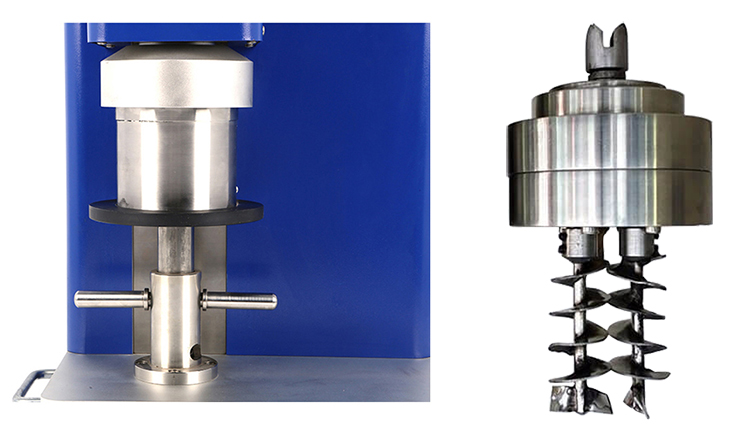

1. The equipment comes standard with a two-axis planetary stirring structure, agitator mixing paddles, and different mixing shaft forms and combinations according to the size of the mixing tank.
2. Designed the positive and negative stirring function, which can achieve high-speed mixing of higher viscosity slurry, good mixing uniformity
3. Vacuum environment, effectively remove the bubbles generated by the mixing process, the machine comes with a vacuum system

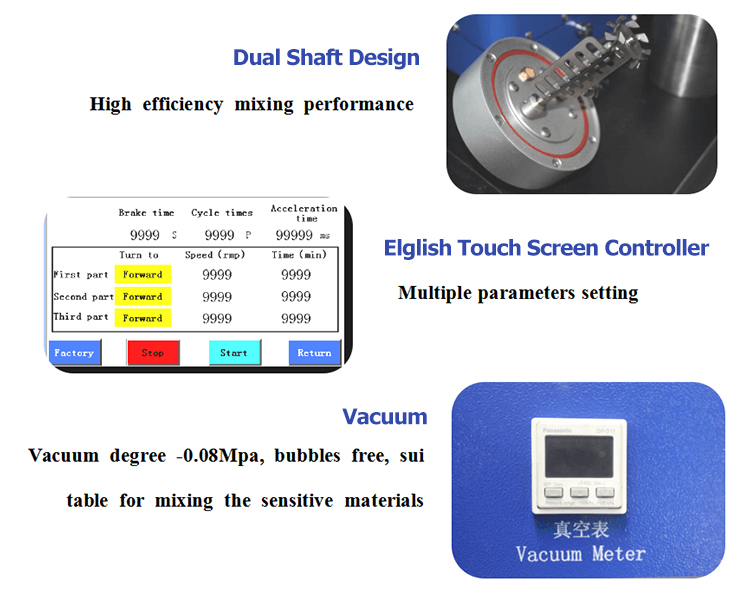

4. Multi-speed operation, set the stirring speed and time of each section, automatic mixing and shutdown

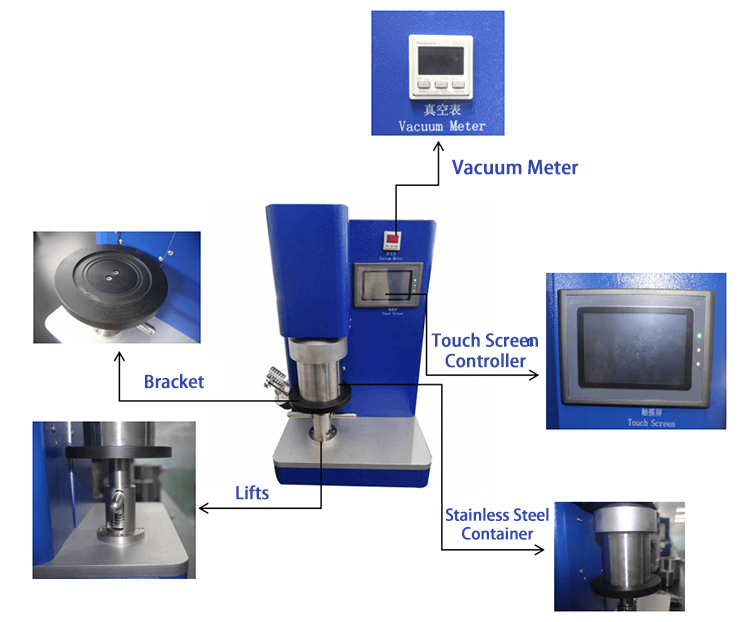

5. Elastic bracket design for easy operation and safety during vacuum mixing process.
Specification
Model | Planetary Vacuum Mixing Machine JT-PVM-500 |
Power Source | AC110-240V, Frequency 50/60Hz, Power 230W |
Operating Environment | Recommended ambient temperature 25±3°C, humidity 30-90RH, no vibration and electromagnetic interference |
Rotate Speed | Max.600rpm |
Vacuum | Built-in vacuum pump, vacuum degree 0.08Mpa |
Mixing time | 0-600 min can be set |
Multi-segment Function | Threesegmentsspeed can be set |
Mixing Jar | Standard double-shaft screw stirring paddle |
ApplicableViscosity | Max.10000mpa.S at 600r/min speed |
Mixing Jar Capacity | 150ml/250ml/500ml SUS304 stainless steel optional |
Tank Temperature Control | Optional heating and cooling function components |
Working Voltage | 220V |
Dimension | L320mm*W320mm*H560mm |
Net Weight | About 35KG |
Product Detail
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
This mixer equipment is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing.
This vacuum mixer is high-efficiency equipment integrating vacuum mixing and dispersion. It is suitable for the positive and negative slurry mixing process in the battery experiment process
QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360-degree rotations. And the balls in the tanks grind and mix samples in high-speed movement.
The planetary ball mill machine is an optimal device for mixing, fine grinding, sample preparation, new product research and small batch production of high-tech materials.
This small vertical square-size planetary ball mill machine with professional appearance modeling design, the shell is made of high-precision mold stamping forming, high-precision laser cutting, CNC bending forming, generous and delicate, high-end sedate.
The small size 0.2L lab Planetary Ball Mill is necessary equipment used for high-tech materials powder milling, fine grinding, powder mixing, nano powder making, new product development and small batch production.
Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps.
Jingtong Industry supplies customizable planetary ball mills and planetary milling grinder equipment for Lithium-ion battery research.
Laboratory Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps.
This 0.4L Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, suitable for rapid, efficient and accurate sample development, mixing and homogenization in the laboratory.
Laboratory Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features small volume, high efficiency, low noise and Lock clamps.
This 2L vertical ball mill has 4*500ml Mixing Jar, it is mixed, fine grinding, sample preparation, and dispersion of mano material, new product development and small batch production of high technology materials necessary device.
This planetary vacuum mixer is high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process.
This Planetary Vacuum Mixer with 5-liter containers and complete accessories for immediate use. The Slurry vacuum mixer produces multi-movements during stirring, including, revolution and rotation.
This Planetary Vacuum Mixer with 5-liter containers and complete accessories for immediate use. The Slurry vacuum mixer produces multi-movements during stirring, including, revolution and rotation.
