Table Top Lab Roller Jar Mill Wet and Dry Micron Powder Grinding Jar Rolling Ball Mill
This wet and dry lab roller ball mill is a kind of roller jar mill equipment used for ultra-fine grinding and mixing for laboratory and small batch production.
Item No.: QXQM-1
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

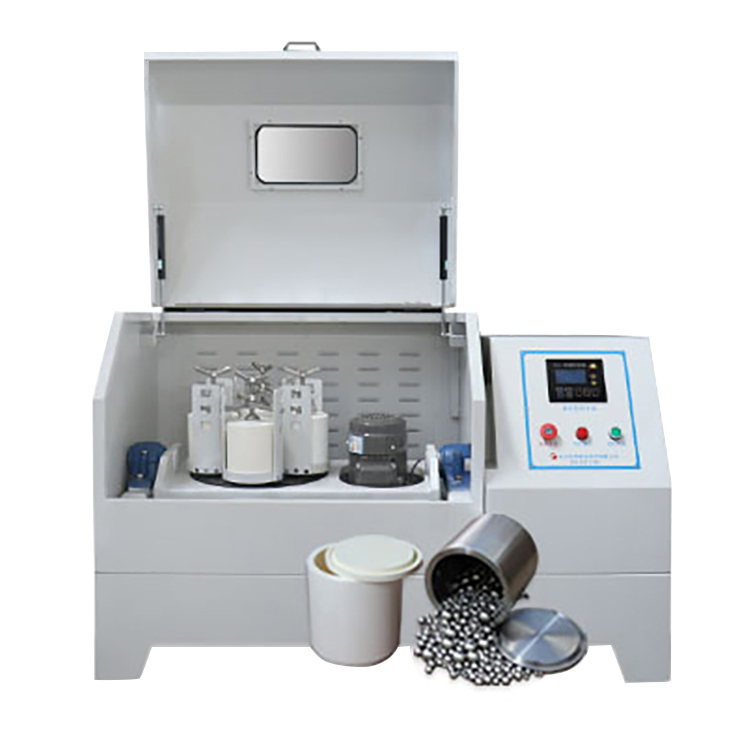

QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360-degree rotations. And the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. The minimum granularity of ground samples can be as small as 0.1-micron meter. Widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Full-directional planetary ball mill is a necessary machine used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production.
Features

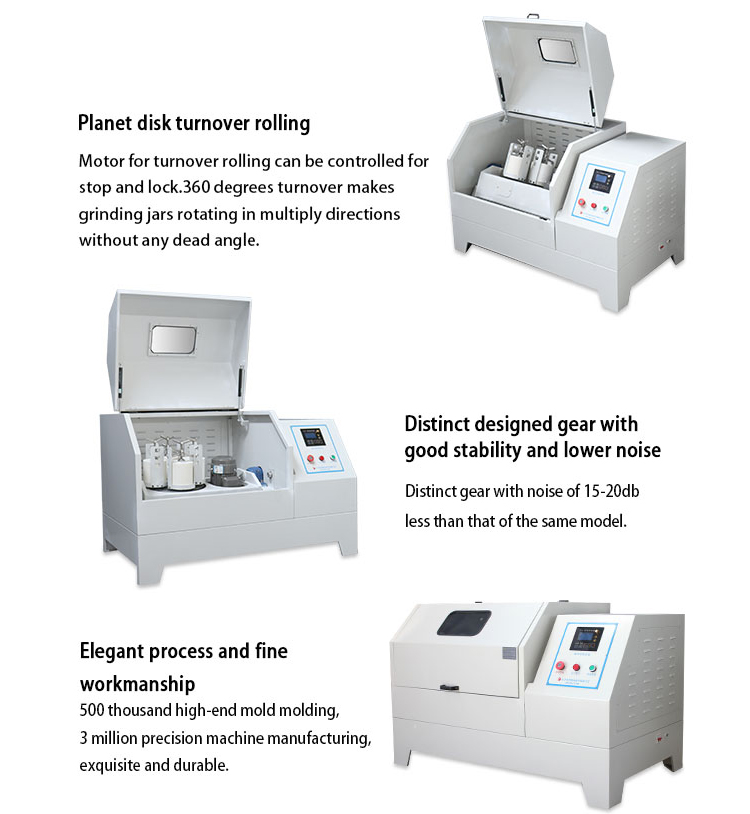

1. The machine makes 360-degree planetary movement without any dead corners, so the ground powder is much smaller and more even.
2. Gear transmission ensures to keep consistency and repeatability of the experiment.
3. You may get four different powder samples at one time.
4. Variable frequency controlled and program-controlled.
5. It solves the problems of materials sinking and sticking to the pot.
Advantage
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.
Application
Laboratory full-directional planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for lots of production fields such as electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder, electronic glass, etc. Production of Powder, Fuel Cell, Zinc Oxide Varistor, Piezoelectric Ceramics, Nanomaterials, Wafer Ceramic Capacitance, MLCC, Thermistor (PTC, NTC), ZnO Varistor, Dielectric Ceramics, Alumina Ceramics, Zirconia Ceramics, Phosphor Powder, Zinc Oxide Powder, Cobalt Oxide Powder, Ni-Zn Ferrite, Mn-Zn Ferrite, etc.

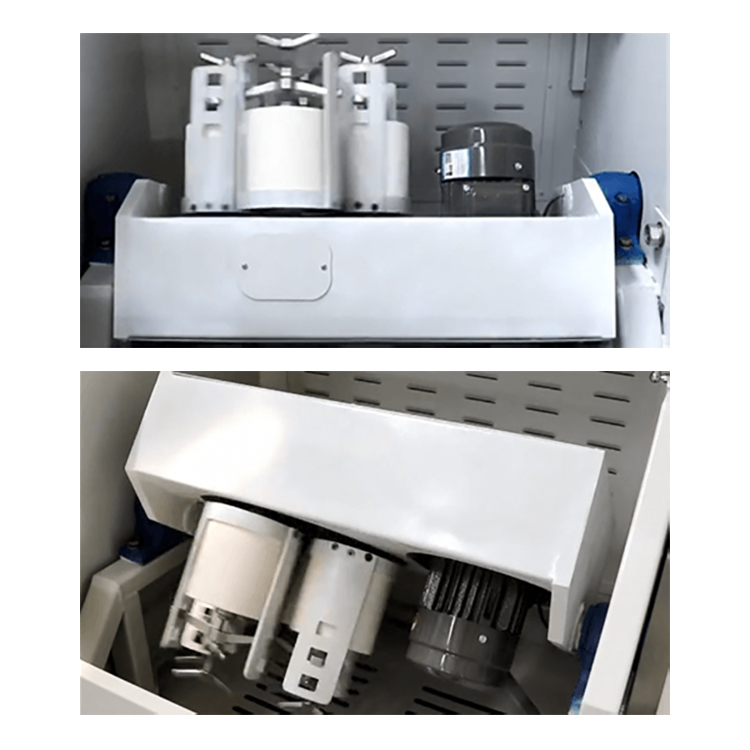

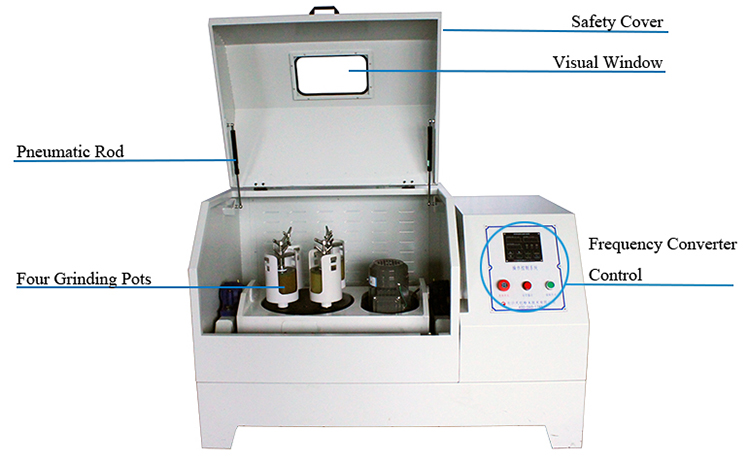

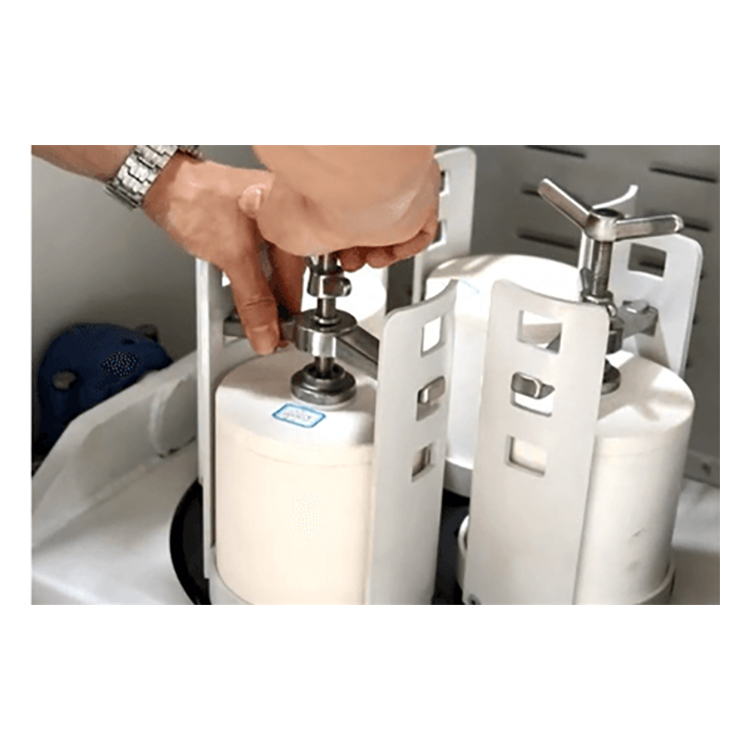

Detail Picture
| Technical Features of Laboratory Full-directional Planetary Ball Mill | |
| Drive Mode | Gear drive |
| Operate Mode | Two or four mill jars can be used for each grinding |
| Maximum Loading Capacity | Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | The smallest granularity can be achieved at 0.1μm |
| Rotational Speed Ratio | 1:2 |
| Max.Continuous Operating Time | 48 Hours |
| Materials of Jar | 304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Technical Parameters -1
Model No. | Specifications | Matchable Sizes | Matched Quantity | Matchable Sizes |
QXQM-0.4 | 0.4L | 50ml, 100ml | 4 pcs | 50ml |
QXQM-1 | 1.0L | 50ml, 100ml, 250ml | 4 pcs | 50ml. 100ml |
QXQM-2 | 2.0L | 50ml-500ml | 4 pcs | 50ml, 100ml, 250ml |
QXQM-4 | 4.0L | 250ml-1000ml | 4 pcs | 50ml-500ml |
QXQM-6 | 6.0L | 1L-1.5L | 4 pcs | 50ml-1000ml |
QXQM-8 | 8.0L | 1L-2L | 4 pcs | 500ml-1500ml |
QXQM-10 | 10.0L | 1L-2.5L | 4 pcs | 1L-2L |
QXQM-12 | 12.0L | 1L-3L | 4 pcs | 1L-2L |
QXQM-16 | 16.0L | 2L-4L | 4 pcs | 1L-3L |
Technical Parameters -2
Model No. | Voltage | Power | Rotation Speed | Noise |
QXQM-0.4 | 220V-50Hz | 0.75KW | 90-870 rpm | Less than 60db |
QXQM-1 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
QXQM-2 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
QXQM-4 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
QXQM-6 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
QXQM-8 | 220V-50Hz | 1.5KW | 70-580 rpm | Less than 60db |
QXQM-10 | 220V-50Hz | 1.5KW | 70-580 rpm | Less than 60db |
QXQM-12 | 220V-50Hz | 1.5KW | 70-580 rpm | Less than 60db |
QXQM-16 | 380V-50Hz | 3.0KW | 60-510 rpm | Less than 60db |
Technical Parameters -3
Model No. | Speed Control | Net Weight | Net Dimensions |
QXQM-0.4 | Frequency Control | 136kgs | 900*570*670mm |
QXQM-1 | Frequency Control | 317kgs | 1330*770*850mm |
QXQM-2 | Frequency Control | 317kgs | 1330*770*850mm |
QXQM-4 | Frequency Control | 317kgs | 1330*770*850mm |
QXQM-6 | Frequency Control | 317kgs | 1330*770*850mm |
QXQM-8 | Frequency Control | 420kgs | 1360*850*930mm |
QVQM-10 | Frequency Control | 420kgs | 1360*850*930mm |
QXQM-12 | Frequency Control | 420kgs | 1360*850*930mm |
QXQM-16 | Frequency Control | 550kgs | 1530*940*1100mm |
Accessories of Mill Jars & Balls

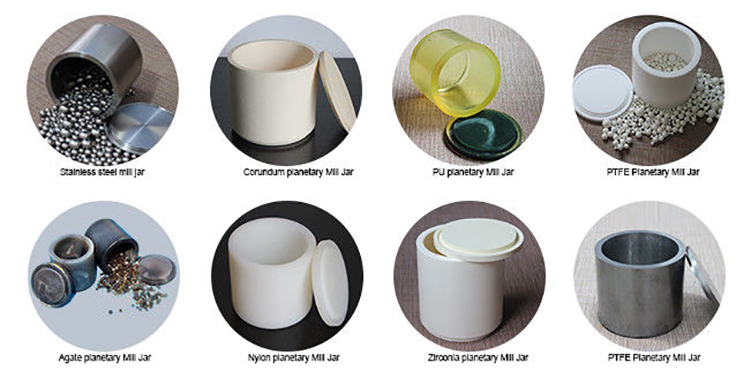

Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.

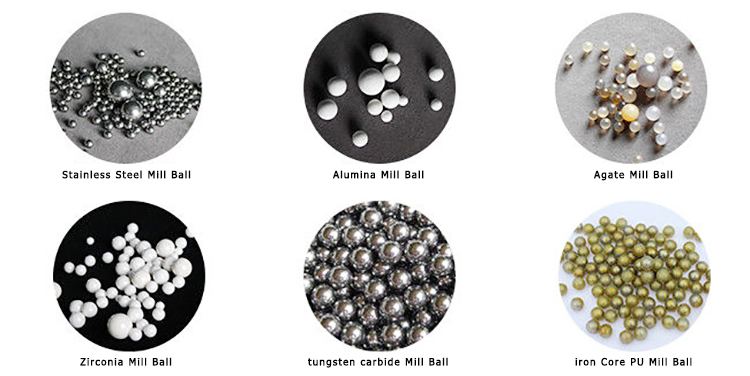

Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
