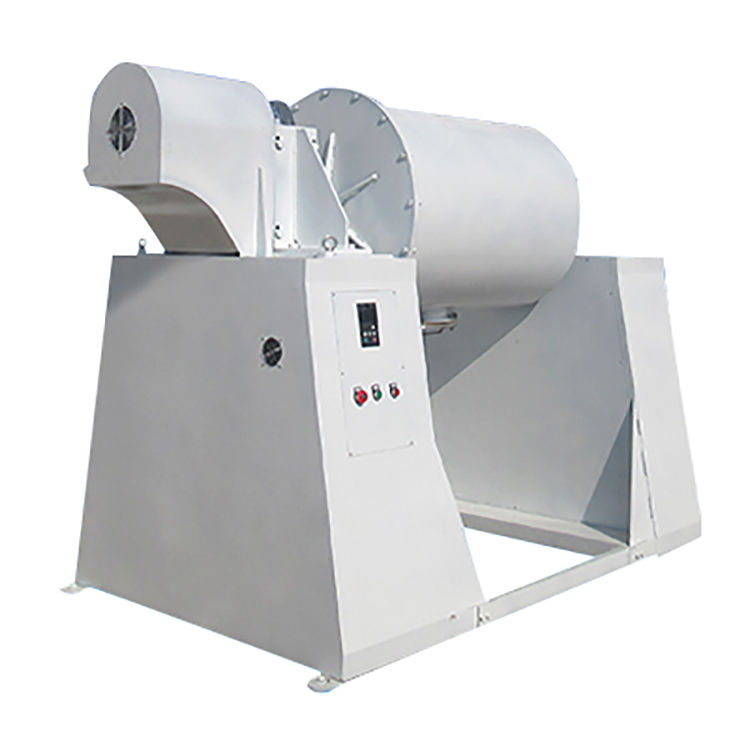

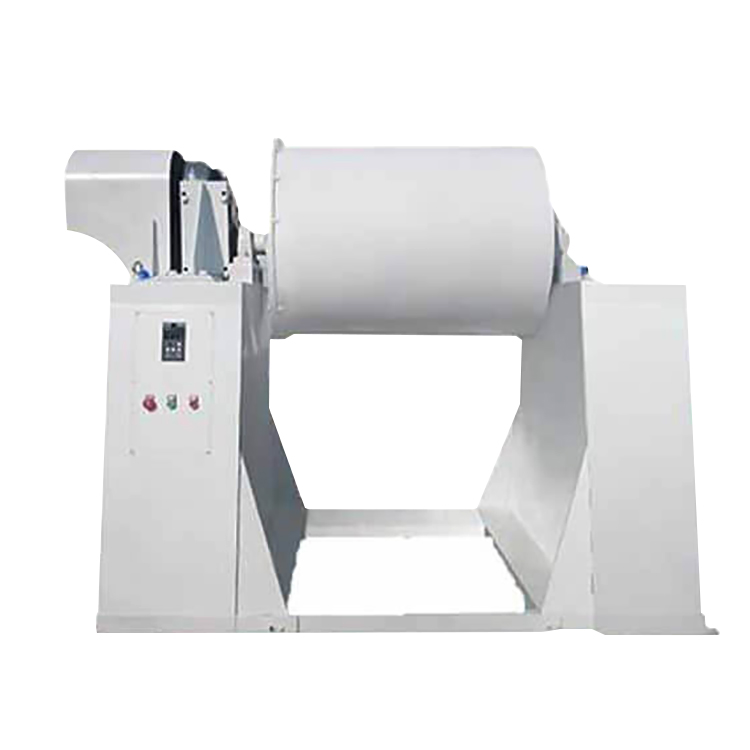

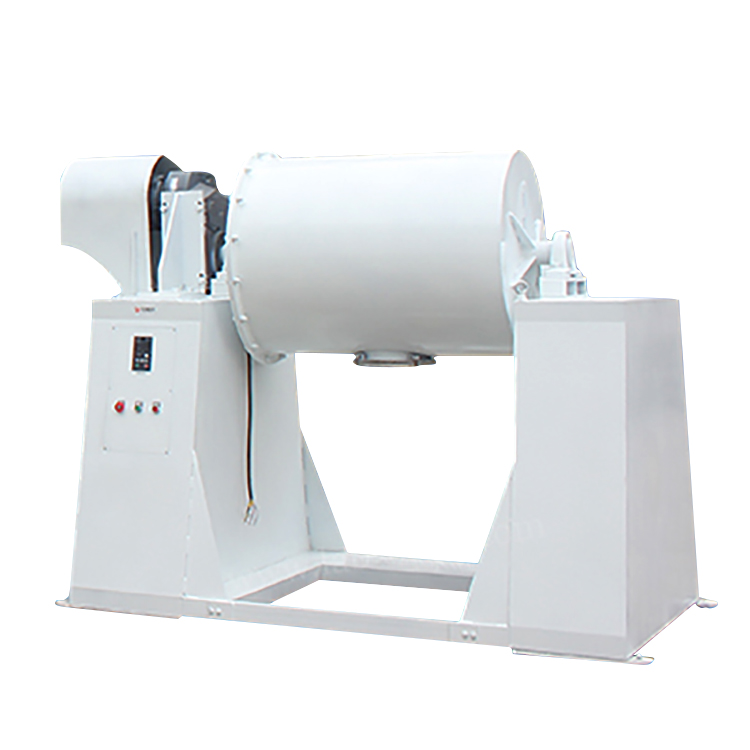

100-2000L Large Roller Ball Mill Equipment
This large roller ball mill is a kind of equipment used for ultra-fine grinding and mixing for batch production, which is also called a rolling machine altar.
Item No.: JT-QM-500L
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7-15 Days
This large roller ball mill is a kind of equipment used for ultra-fine grinding and mixing for batch production, which is also called a rolling machine altar.
The ball mill machine is the preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity.
It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc.
Advantage
The Optimal design of rotating speed is adopted in the machine, where the mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains the best effects of grinding. As result, materials are ground to micron powder.
The Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirements at any time. It saves time and labor and is easy for operating.
Working Principle
When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to gravity, they fall down from the tube wall. The materials are crushed by the impact action of the grinding media, and the friction and shearing action of the grinding media’s rolling and sliding.
Specification
| Main Parameters of Large Roll Ball Mill | ||||||||
| Model No. | Volume (L) | Rotate Speed Range (rpm) | Material Capacity (L) | Power Supply | Available Jars | Feed Size (mm) | Output Granularity (mesh) | Adjustable Mode of Rotate Speed |
| QM-100L | 100 | 20~45rpm | 35 | 2.2KW/380V | Carbon Steel, Stainless Steel, Nylon Liner, Alumina Ceramic Liner, PU(polyurethane) Linner, PTFE Liner. | ≤20 | ≥300 | Frequency adjuster or Fixed setting for buyer's options |
| QM-200L | 200 | 20~40rpm | 70 | 4KW/380V | ≤20 | ≥300 | ||
| QM-300L | 300 | 20~38rpm | 105 | 5.5KW/380V | ≤20 | ≥300 | ||
| QM-500L | 500 | 20~36rpm | 175 | 7.5KW/380V | ≤20 | ≥300 | ||
| QM-1000L | 1000 | 20~34rpm | 350 | 11KW/380V | ≤30 | ≥300 | ||
| QM-2000L | 2000 | 20~34rpm | 700 | 22KW/380V | ≤30 | ≥300 | ||

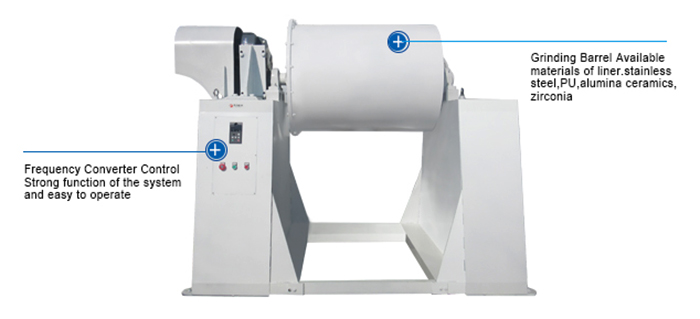

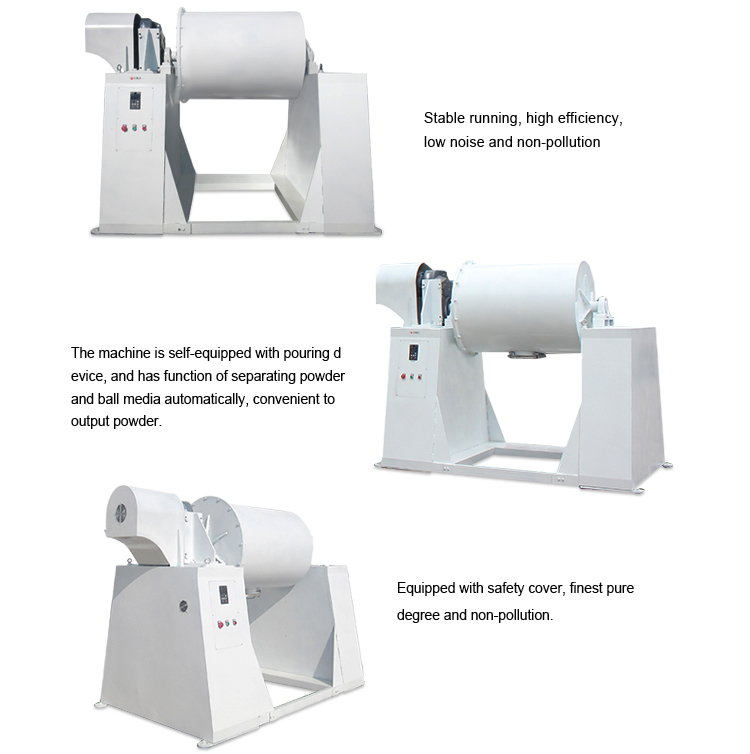

Product Detail
