Pouch Cell Assembly Machine Polymer Battery Lab Research Line
Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.
Item No.: JT-MSK-700C-1
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

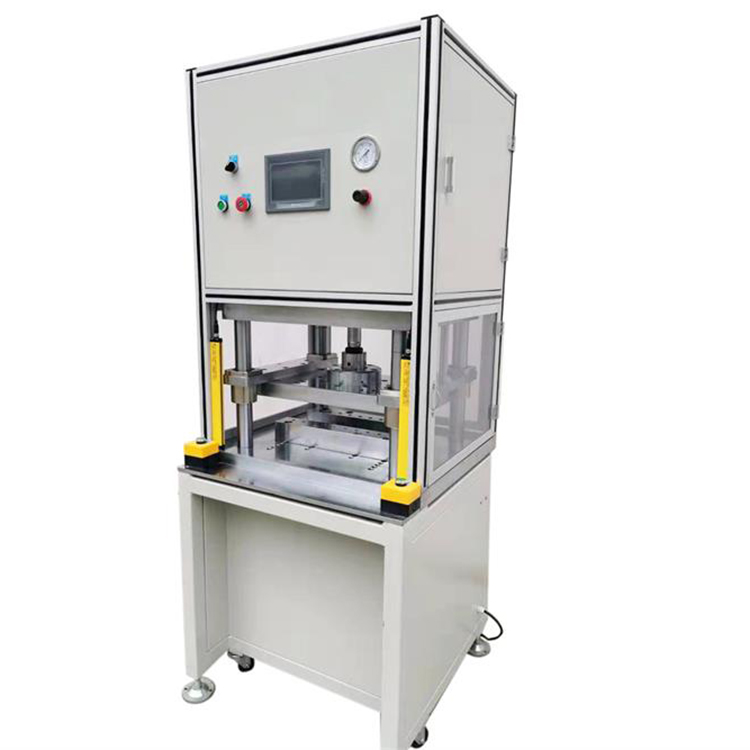

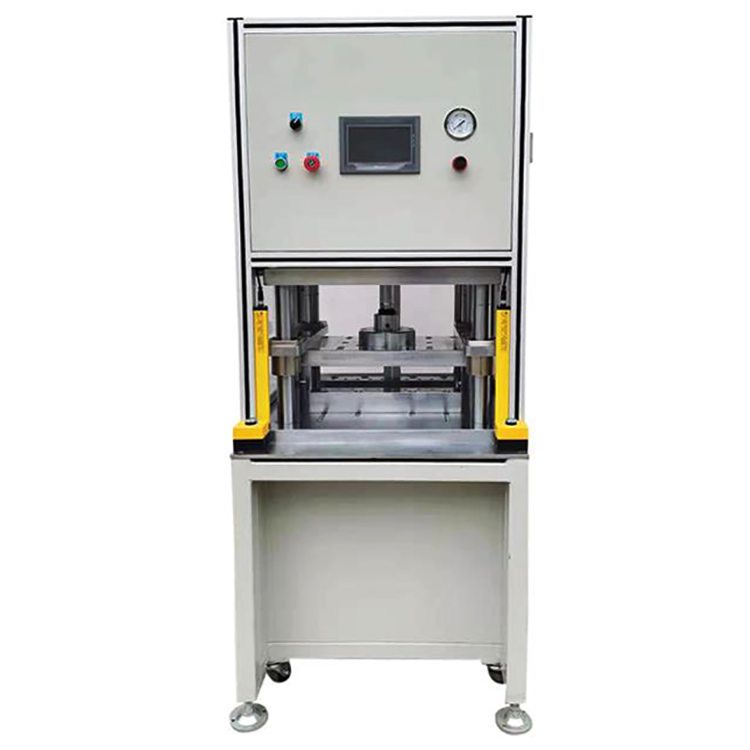

The larger pouch cup forming machine is customized and manually pouch cell case forming machine with Max 600x500 mm pouch die, used for making large pouch cells in battery lab research.
Features
1. Precision mechanism to ensure cup forming with resolution +/- 0.1 mm
2. Manual operation with an optical sensor for full protection
3. Product yield may reach 5 - 8 ppcs / minute
Specification
| Product name | Pouch Cell Case Forming Machine JT-MSK-700C |
| Voltage | 208 - 220VAC, Single phase, 50/60Hz |
| Power | 2KW |
| Air Requirement | 100 PSI air compressor is required ( not included ) |
| Max. Punching Pressure | 30 Metric Tons |
| Max. Cup Depth to Punch | < 8.0 mm within single cup 420 x 600mm |
| Production | 5 - 8 pcs／min |
| Effective pressing Area | 750 L x 600 W |
| Pressing Die | Not included, but available based on customer |
| Product dimension | L1050mm*W1050mm*H2000mm |
| Weight | 200KG |

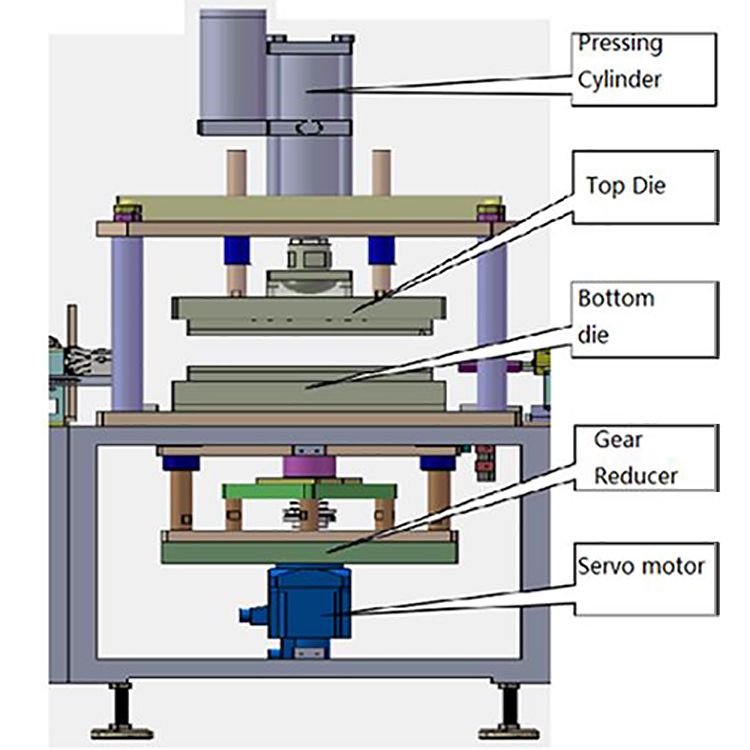

Detail
