Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-PCM200A
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

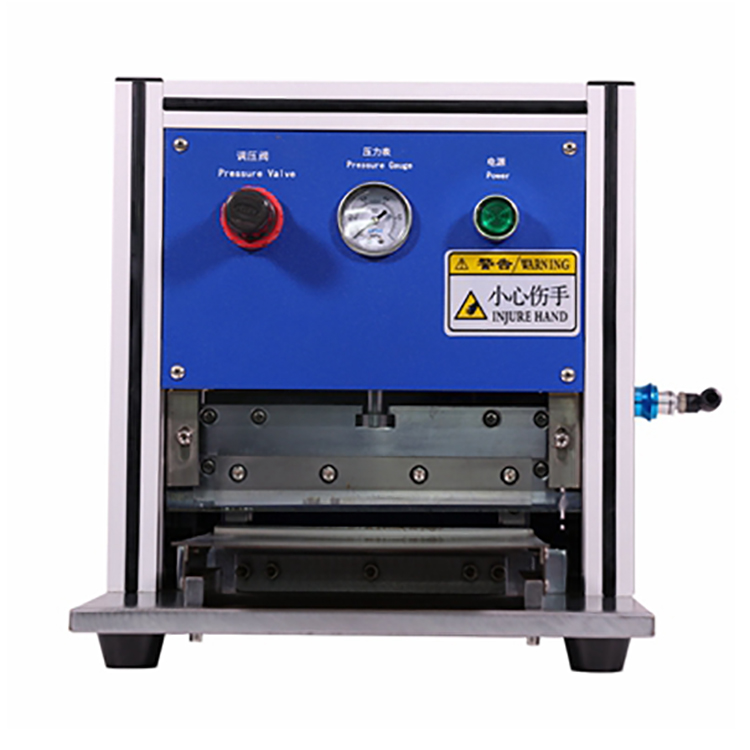

This battery edge cutting machine is mainly used for lithium polymer battery aluminum laminated film trimming molding, and it can also be used for cutting off other soft materials.
The pneumatic cutting machine is widely used in the final steps of the pouch cell battery pilot-scale production line to ensure a smooth, neat and tidy casing edge.
Features
1. It uses the silver linear slide group for guidance, and high precision to ensure that the upper and lower cutting between the zero gap and long service life.
2. It uses a plexiglass protective cover to prevent cut hands and cut the battery.
3. Cutting knife from top to bottom use of high-speed steel, with sharp blade.
4. Built-in pressure gauge, from which you can observe and accurately control the size of the trimming pressure
5. Cylinder control cutting edge of the battery edge cutting, easy to form automation, trimming width can be adjusted.
6. Air pressure and speed can be set to adjust.
7. Product positioning tray, adjustable from top to bottom to facilitate the positioning of the battery.
8. Using a foot switch, is reliable, convenient and fast.
Specification
Model | Battery Edge Cutting Machine JT-PCM200 |
Trimming length | 200mm |
Trimming width | 2～10mm adjustable |
Cutter life | 1 million/grinding |
Speed | 600 times/hour |
Voltage | AC220V / 50 hz |
Air pressure | 0.5-0.7 Mpa |
Power | 100 w |
Dimensions (L*W*H) | 320*180* 340mm |
Weight | 35kg |

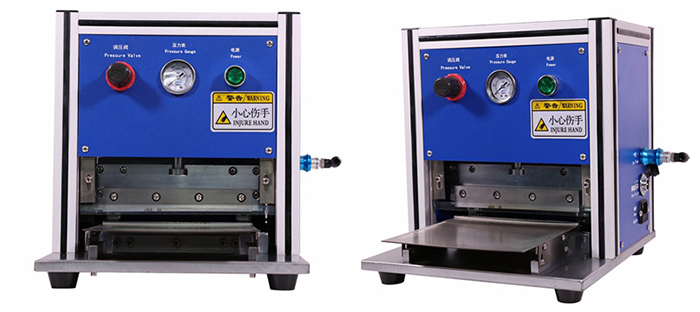

Detail
Package
