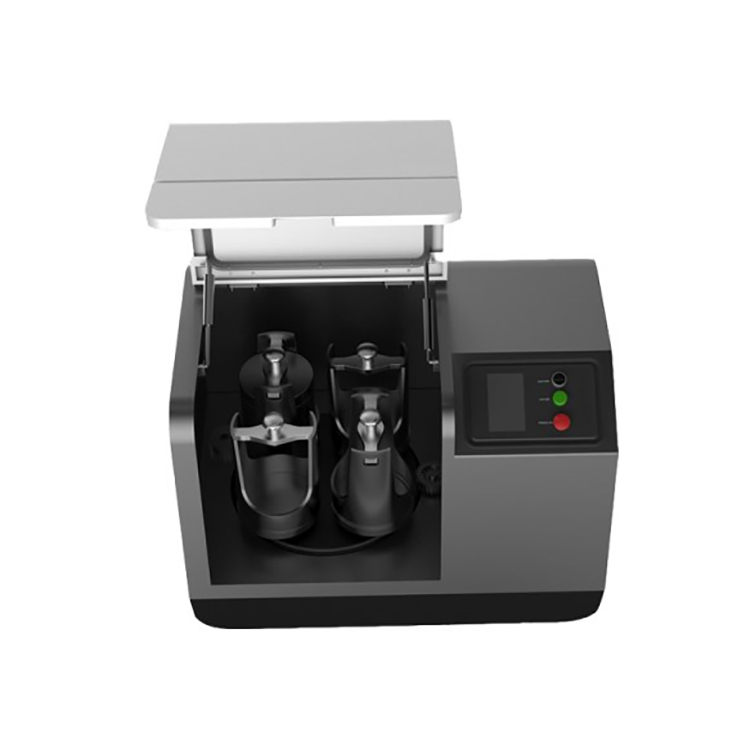

1L Laboratory Ball Mill Machine with Automatic LED Lighting

This laboratory 1L ball mill machine is the ideal equipment for R&D institutions, universities, enterprises' laboratories to get fine powder samples. The planetary 1L ball mill machine is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.


Working Principle

The 1L ball mill equipment has four work positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high-speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of the dry or wet grinding methods. The smallest granularity of output power can be reached to 0.1μm or nano-scale powder.


Features

1. Single direction without timing (samples need long or non-stop milling)
2. Single direction with timing (samples need to be milled in one direction for a designated amount of time before automatic shutdown)
3. Bi-direction with timing (samples need to run clockwise for 1.5 hours, then counter-clockwise for another 1.5 hours and so on, for 15 total hours, before the machine shuts down itself)
4. Single direction with paused interval and timing (i.e. samples need to run for 0.5 hours, then pause for 1 hour, then run for another 0.5 hours in the same direction and pause for another 1 hour, for 10 cycles before auto shutdown)
5. Bi-direction with paused interval and timing (samples need to run clockwise for 0.8 hours, pause for 0.5 hours, then run counter-clockwise for 0.8 hours, for 20 cycles, before auto shutdown)
6. High uniformity and excellent repeatability
7. Fast rotational speed, high efficiency and fine granularity
8. Four samples with different sizes and materials in one experiment
9. Leak-proof jars for wet grinding
10. Large range of materials available for grinding media
11. Gear-drive offers effective solutions to problems caused by belt driving, such as belt creep and belt abrasion
12. Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation
13. Adjustable height
14. Safety switch ensures automatic shut down if the cover is opened during operation


Specifications

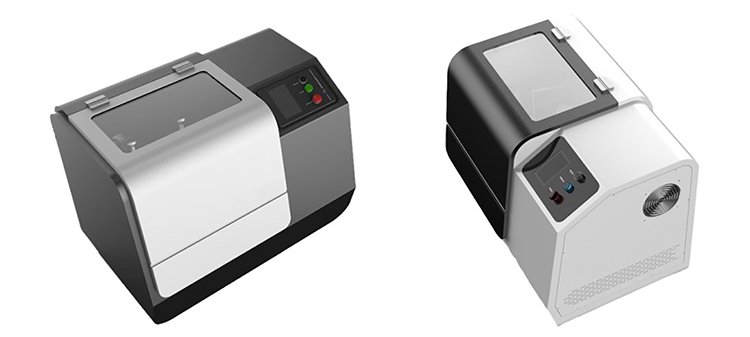

Product Image

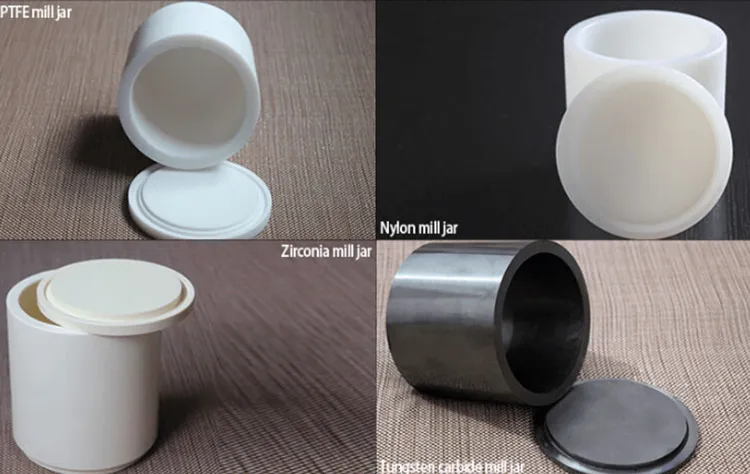

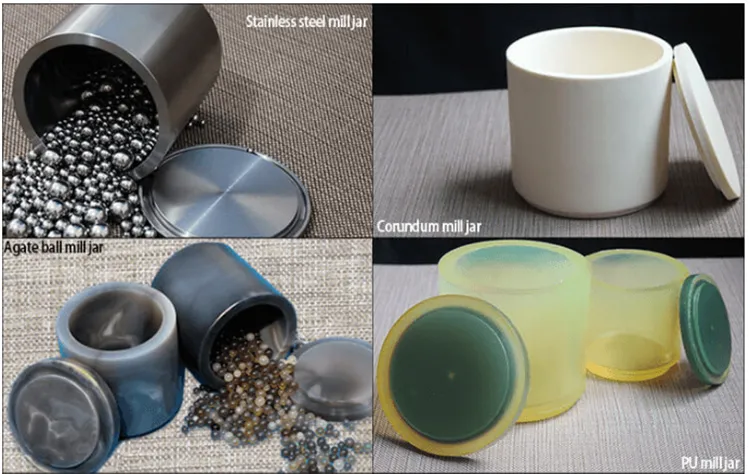

Besides the planetary ball mill machine, our factory provides all kinds of mill pots， like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot, etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls, tungsten mill balls, etc.

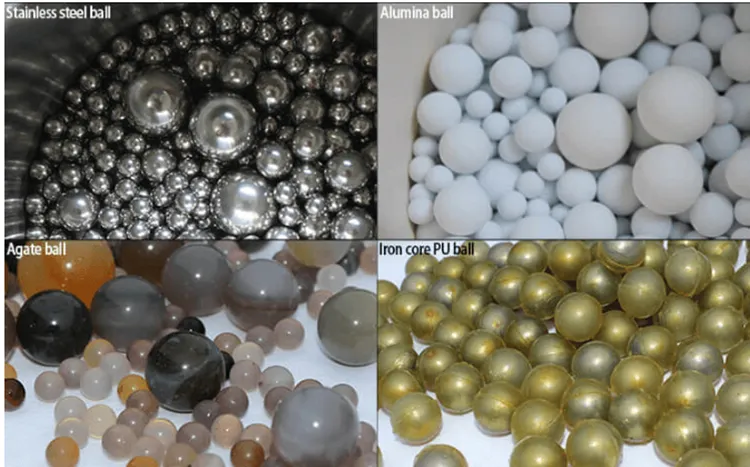

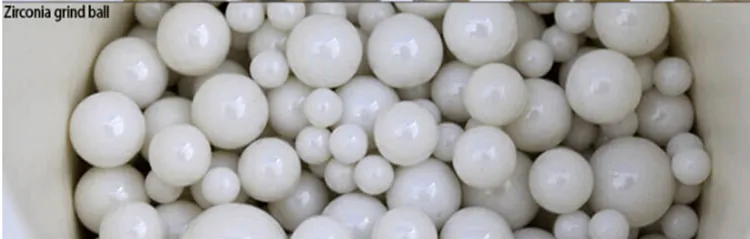

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear-resistant steel balls, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
