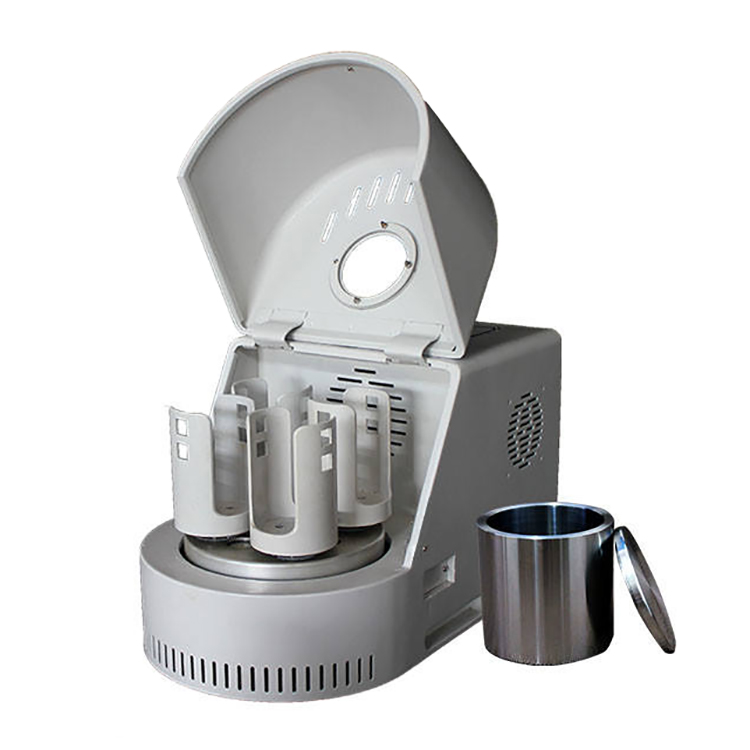

Small Size 0.2L Lab Planetary Ball Milling Machine for Glove Box

The small size 0.2L lab Planetary Ball Mill is necessary equipment used for high-tech materials powder milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. The laboratory ball mill owns advantages and features such as small volume, high efficiency, lower noise and complete functions.

This laboratory ball mill is the ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Coze planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.


The small 0.2L Planetary Ball Mill is designed to be used inside the glove box under inert gas purification atmosphere with water and oxygen removed.


Working Principle

The 0.2L laboratory ball mill has four work positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high-speed movement, and materials are eventually ground into fine powder.
Various kinds of different materials can be ground by means of the dry or wet grinding methods. The smallest granularity of output power can be reached to 0.1μm or nano-scale powder.


Applications

Laboratory ball mill is widely used in many industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nanomaterial, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

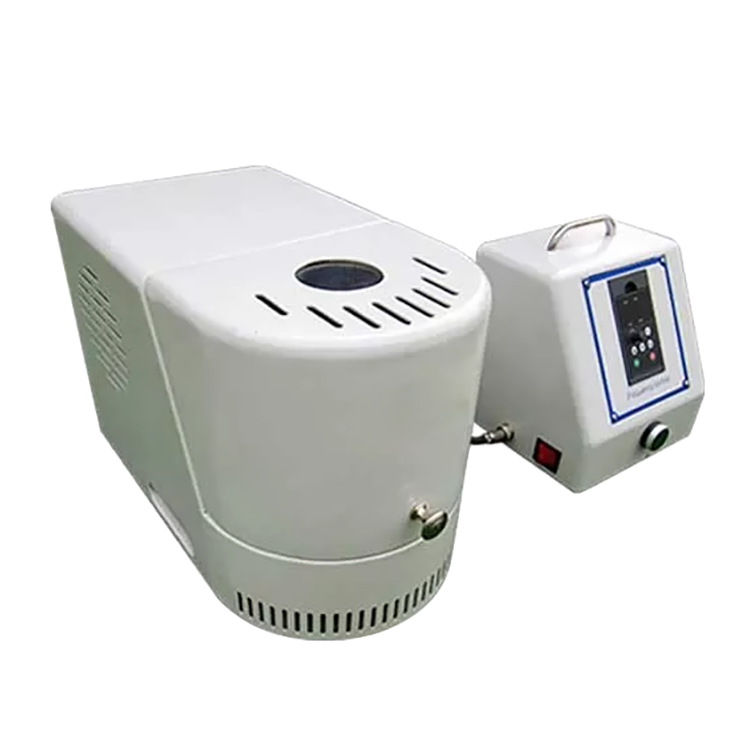

Small size laboratory ball mill model XQM-0.2A is a kind of special equipment used for the glove boxes. It can be placed inside the glove box for grinding any sensitive material under vacuum or inert gas protection atmosphere. This model expands greatly the application scope for customers and materials research, and grinds some materials which can not be milled under normal air atmosphere.


Features

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.

2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small granularity.

3. Four powder samples from different sizes and different materials can be produced at one time.

4. The machine is controlled by a frequency converter, you may set the ideal rotating speed according to the expected experimental result. The converter is equipped with a device of under-voltage and over-current to protect the motor.

5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may select any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve the efficiency of grinding.

6. Technical features of XQM-2S: small volume, more functions, low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, a small loss.

Technical Parameters

Grinding Sample:

Description:

(1) Application field: pigment;

(2) Material / raw material: cinnabar;

(3) Feed particle size: 100 μ m;

(4) Feed volume: 100g;

(5) Customer requirements: 20 μ m;

Setting Parameters:

1. Rotation:500 rpm, 30 minutes later positive and negative rotation alternately running;

2. Grinding time: 2 hours;

3. Grinding result: 100%＜20μ m;

Grinding Sample:

Description:

(1) Application: Herbal medicine;

(2) Materials / raw materials: Herbal medicine (licorice, astragalus, etc.)

(3) Feeding capacity:100g;

(4) Material properties: drying;

(5) Customer requirements: after grinding, the powder is basically soluble in water and can be used as a powder;

(6) Subsequent analysis: water solubility test;

(7) Feed particle size: 1-5mm

Setting Parameters:

1. Rotation 500 rpm, 30 minutes later, positive and rotation operation alternately

2. Grinding time: 1 hour

3. Grinding result: soluble in water

4. Caution: Dry thoroughly before grinding

We can provide different capacities of planetary ball mill according to your requirement.

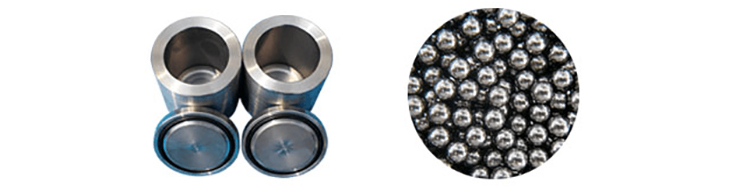

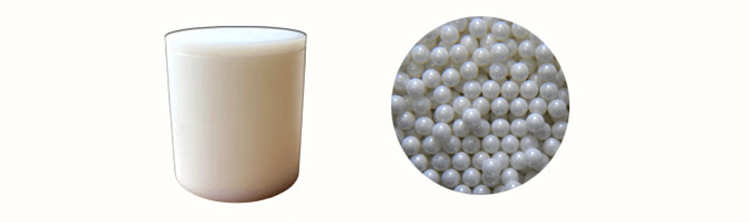

Besides the planetary ball mill machine, our factory provides all kinds of mill pots, like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot, etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls, tungsten mill balls, etc.

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear-resistant steel balls, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
