32650 Cylindrical Cell Case with Anti-Explosive Cap and Insulation O-ring Lithium ion Battery Raw Materials
32650 Cylindrical Battery Cases with Caps used for 32650 battery research, producing, especially for powerful 32650 battery making.
Item No.: JT-CSE-300B
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

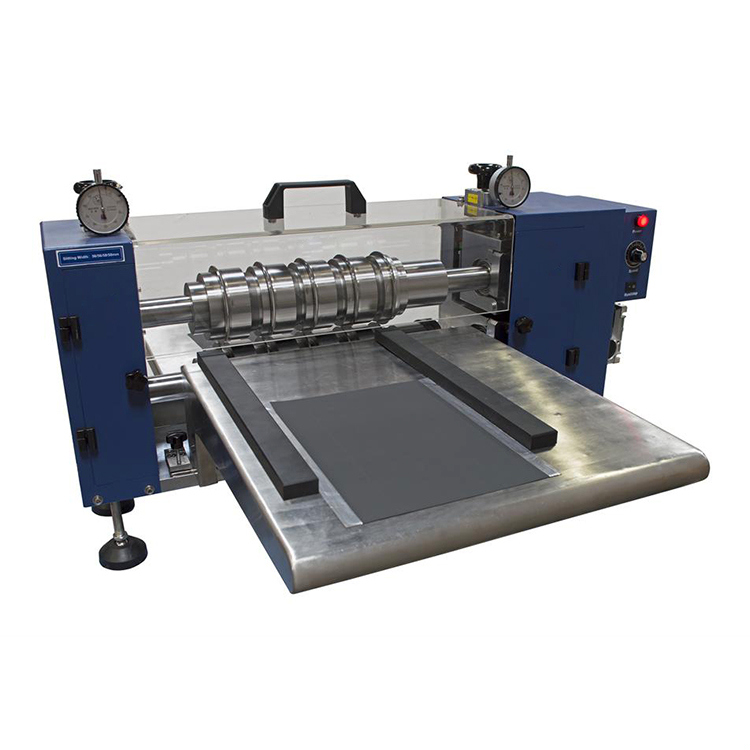

18650 Cylinder Battery Electrodes Slitter Slitting Machine For Cylindrical Cell Assembly
This cylinder battery slitting machine is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrodes of cylinder batteries in R&D laboratories.
Specification
| Working Voltage | Machine Input: 22-24V DC with 5mm barrel connector Power Input: 110-240V AC to 22V DC adaptor (120W) with CE / ETL approval, which can be used worldwide |
| Max. Power Consumption | 100W |
| Cutting Method | Top and bottom rollers with total 10 ring cutting blades installed (5 blades per roller) Blade Materials: Tungsten alloys Blade Diameter: 100mm |
| Cutting Width | 4 sets of slitting blades (two blades with slitting width of 58mm, and another two with slitting width of 56 mm) are the typical sizes for 18650 cylindrical batteries. Customization: 25 - 250mm cutting width is available at extra cost, please contact us for details. |
| Cutting Thickness | 100 - 300 microns |
| Cutting Speed | 0 - 4 meter / minute Adjustable |
| Product Dimensions | 840mm(L) x 200mm(W) x 460mm(H) |
| Compliance | CE certified |
| Net Weight | 110kg (250 lbs) |
| Warranty | One year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
