Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-CC-18650-D
Compliance: CE Certified
Order (MOQ): 100
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

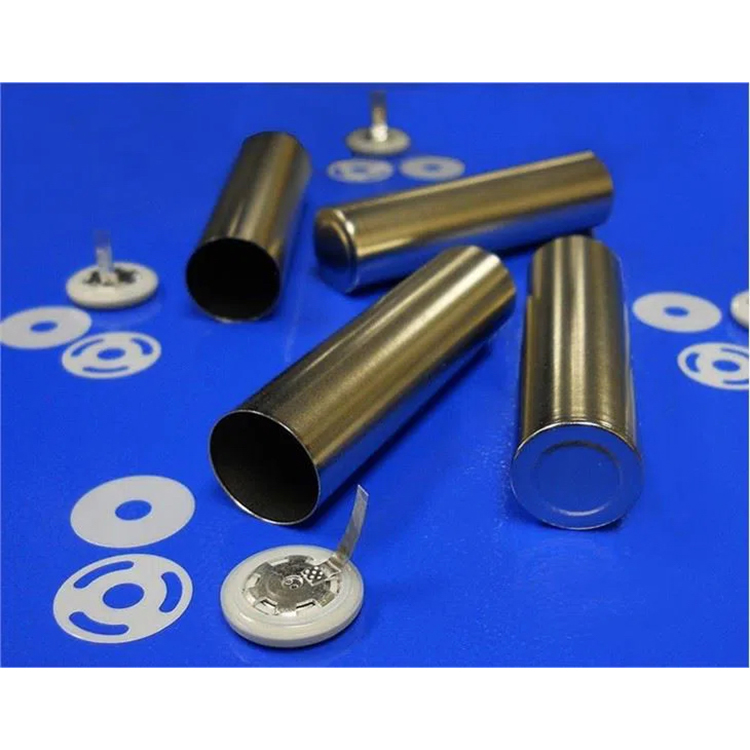

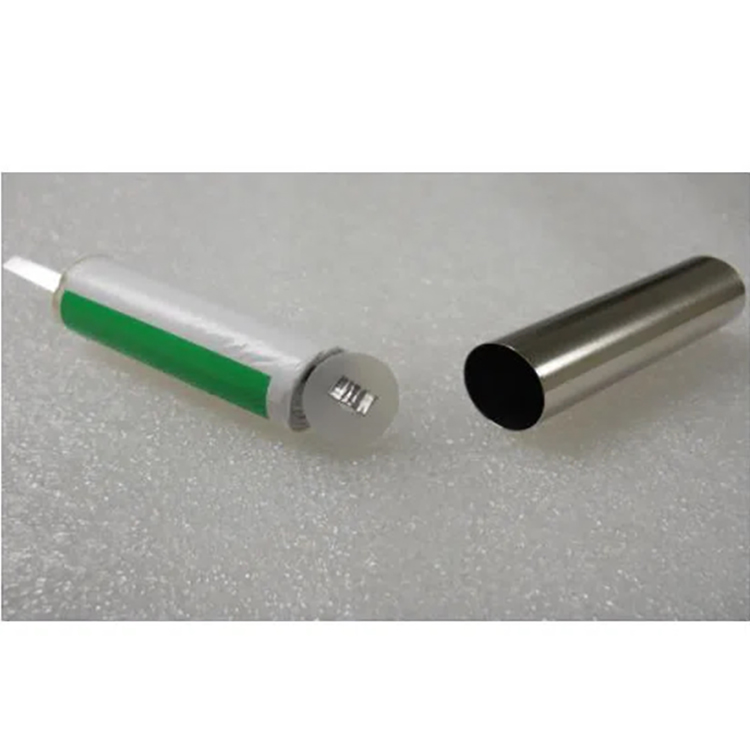

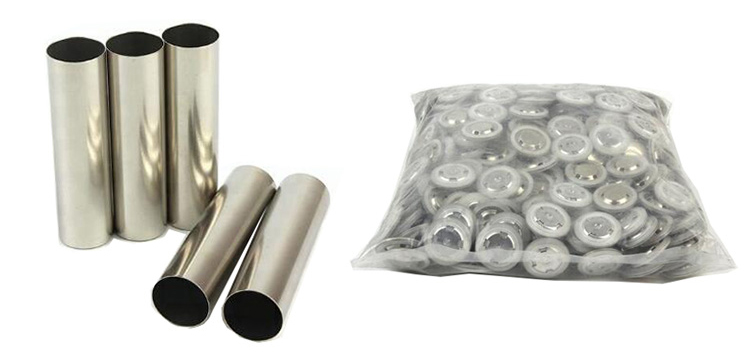

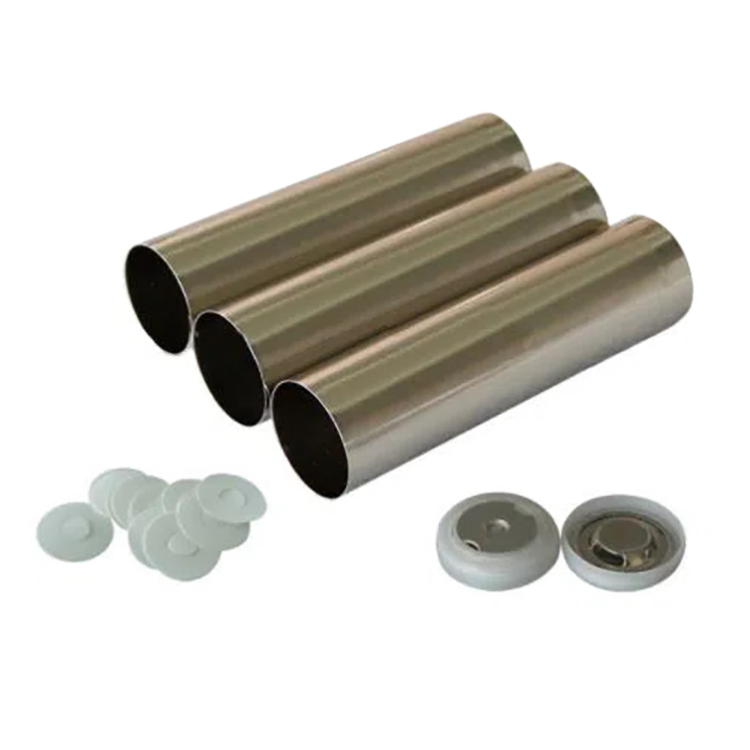

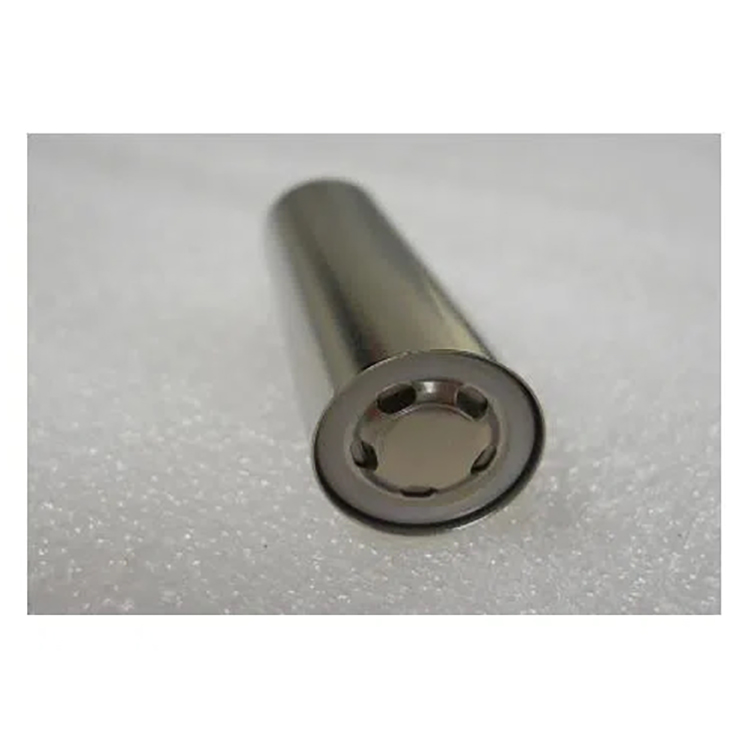

18650 Battery Case with Anti-Explosive Cap and Insulation O-ring, Used for 18650 battery research, producing, especially for Powerful 18650 battery making,100set/package included Cylinder cell case, Cap and up/down spacer.
Cylinder Cell Case Material
| Case | 304ss stainless steel |
| cap | Nickel-plated steel |
| Seal O-ring | Nylon |
| Insulating gasket | PP |
Specification
| Case Dimensions | 18.15mm(OD) x 17.6mm(ID) x 68.25mm(H) |
| Top Cap | 17.6mm(D) x 3.85mm(H) |
| Top Cap with O ring | 17.6mm(D) x 4mm(H) |
| Top Insulator | 17mm(D) x 0.12mm(H) with 6.5mm hole |
| Bottom Insulator | 17mm(D) x 0.12mm(H) with 6.5mm hole |
Product Image
