Item No.: JT-SW-30A
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

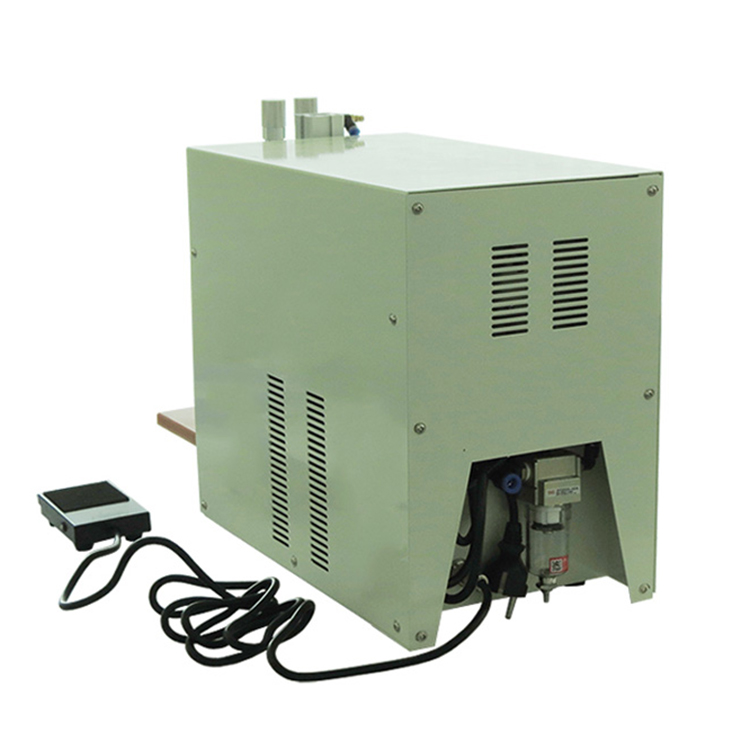

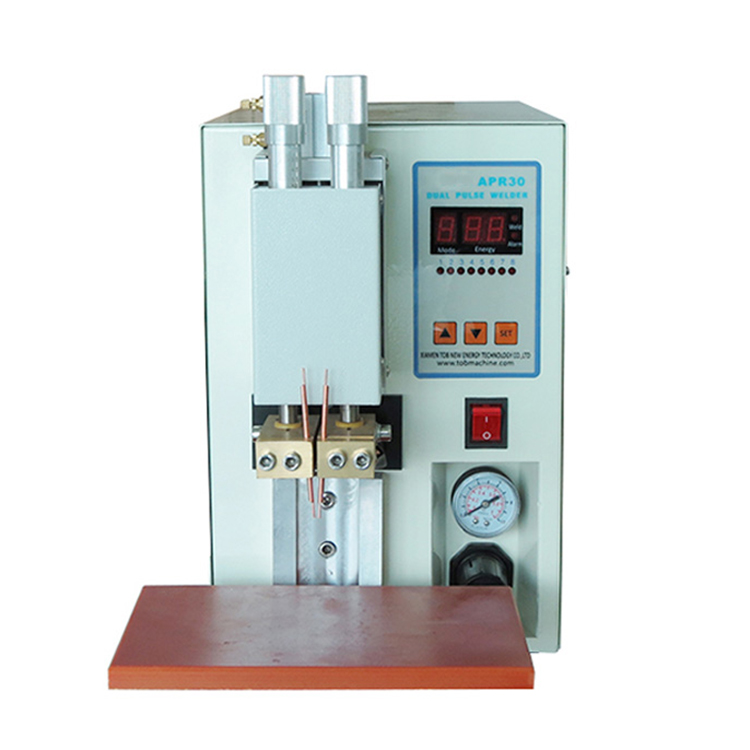

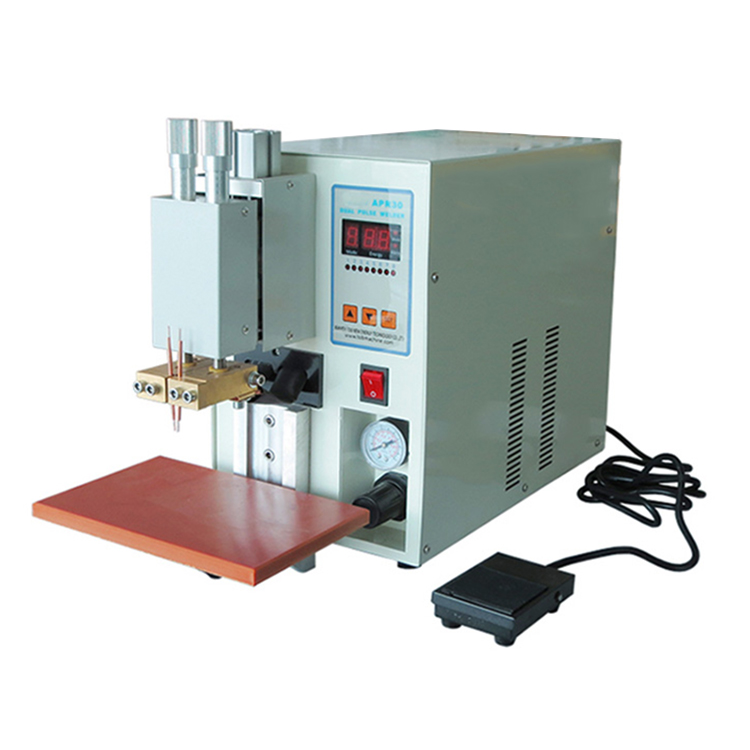

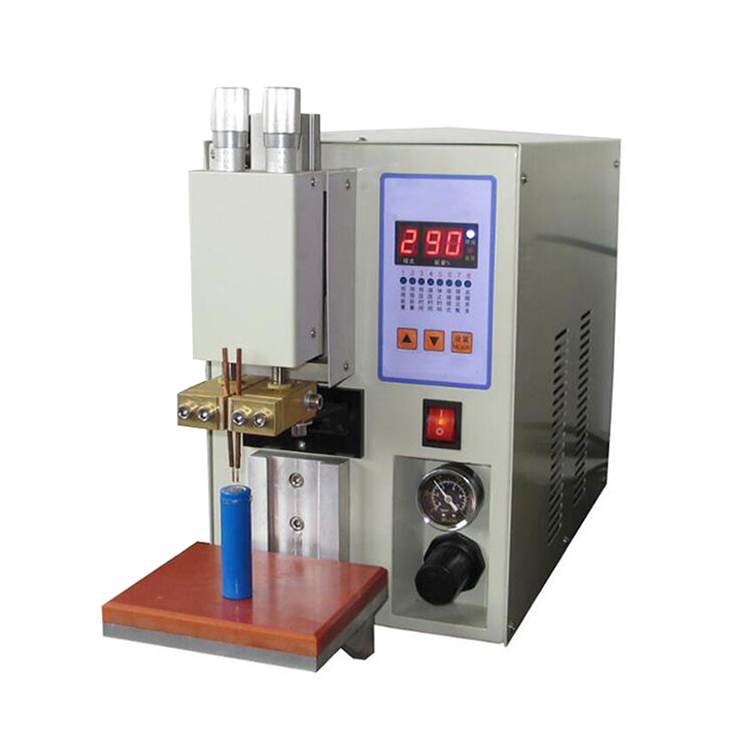

18650 Precision Double Pulse Pneumatic Spot Welding Machine Welder For Cylindrical Battery
This pneumatic 18650 cell spot welder is mainly used for cylindrical battery nickel tab welding, suitable for 0.02-0.2mm welding thickness. It can also be used for 18650 21700 32650 small battery pack welding with a good welding effect.
This double spot welding machine is the most popular capacitive discharge spot welder driven by compressed air. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with more reliable and consistent welding than AC pulse.
If you have 18650 machine ordering needs, please contact us.
Features
The Pneumatic model is with smaller volume and weight, easy for international shipping.
1. Microcomputer control, CNC current adjust
2. High precision welding power
3. Digital tube display, keyboard control, welding parameters flash storage.
4. Double pulse welding, make welding more firmly.
5. Small welding sparks, solder joint uniform appearance, the surface is clean
6. Welding times can be set
7. Can set preloading time, the holding time, time to rest, and the welding speed can be adjusted.
8. Large power, stable and reliable.
9. Double-needle pressure adjustable separately, Suitable for different thicknesses of Nickel strip.
Specification
Model | Small Battery Spot Welding Machine JT-SW-30 |
Voltage supply | AC 220V±10% 50Hz±;2Hz |
Driving Power | Pneumatic |
Welding current | 3000A |
Welding power | 0-99% adjustable |
Welding method | Double pulse |
Maximum output power | 15KVA |
Welding way | Ordinary welding and continuous automatic welding |
Time setting | 0-2.55s |
Counting function | Automatic |
Weight | 28KG |
Dimensions(L*W*H) | 470mm*220mm*320mm |
Warranty | One year with lifetime support |

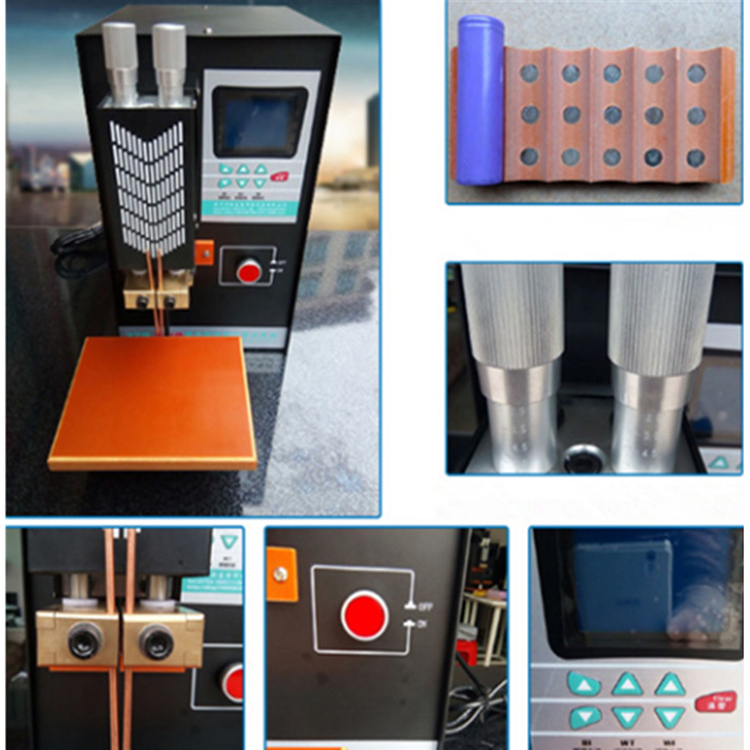

Product Image
