Lithium Battery Pneumatic Ultrasonic Metal Spot Welder Welding Machine For Electrode Tab/Foil
This ultrasonic spot welder is with semi-auto frequency tracking function, don't need to set the frequency always, simple operation.
Item No.: JT-SW-25B
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Lithium Battery Pneumatic Ultrasonic Metal Spot Welder Welding Machine For Electrode Tab/Foil
The ultrasonic spot welding machine is an ultrasonic metal welder designed for welding Li-ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cells in R&D laboratories and production lines.
This ultrasonic spot welder is with semi-auto frequency tracking function, don't need to set the frequency always, simple operation.
The ultrasonic spot welding machine is advanced high-tech equipment that converts high-frequency electrical energy into mechanical vibration energy through a transducer and acts on the bases material, to generate high-frequency friction between the surfaces of the two work-pieces until the surfaces of the two bases materials are heated and welded together. It can perform spot-like and strip-shaped soldering on thin materials such as copper, silver, chrome, nickel and other conductive metals. It can be widely used in the lead wire of silicon-controlled chip leads, fast-fuse holders, electrical lead terminals, lithium-ion, nickel point-like, strip-shaped soldering of poles such as hydrogen and nickel-cadmium batteries.
The welding process of an ultrasonic spot welder is a mechanical process in which no current flows through the material and no melting occurs. Moreover, the same or the different alloy materials can achieve the ideal welding, the electrical and the thermal properties are not achieved by other processes. Compared with fusion welding, ultrasonic welding machine has low electrical consumption, long life and low labor intensity.
Specification
Features | Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...). |
Input Voltage | AC 110V or 220V +/-10%, 50/60Hz |
Max.Power.Consumption | 3600W |
Welding time | 0.5~2S |
Control method | CPU control |
Gas supply source | ≥0.5MPa |
Welding Area | 4mm(L) x 4mm(W) or customized size |
Welding Head | The welding heads and welding bases are included for welding both aluminum & copper current collectors from 2 to 60 layers |
Ultrasonic Frequency | 20K Hz |
Product Dimensions | 1. Controller: 360mm(L) x 480mm(W) x 200mm(H) 2. Welder: 200mm(L) x 460mm(W) x 270mm(H) |
Net Weight | 70kg |
Compliance | CE Certificate |
Warranty | Two Year limited warranty with lifetime support |
Application Notes | Nickel and Aluminum Tabs can be welded onto different types of current collecting substrates (Aluminum or Copper) when making battery electrodes. |

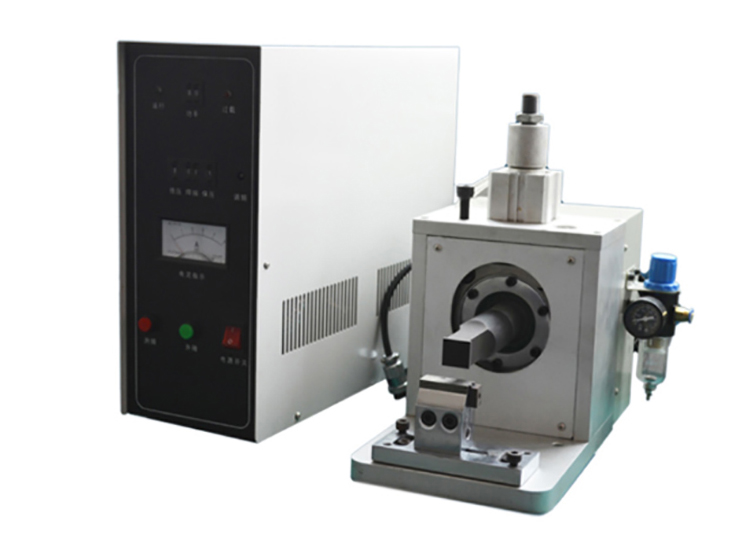

Product Image
