Benchtop Pouch Cell Aluminum Laminated Film Case Top and Side Sealer
The Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
Item No.: JT-HSM650
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

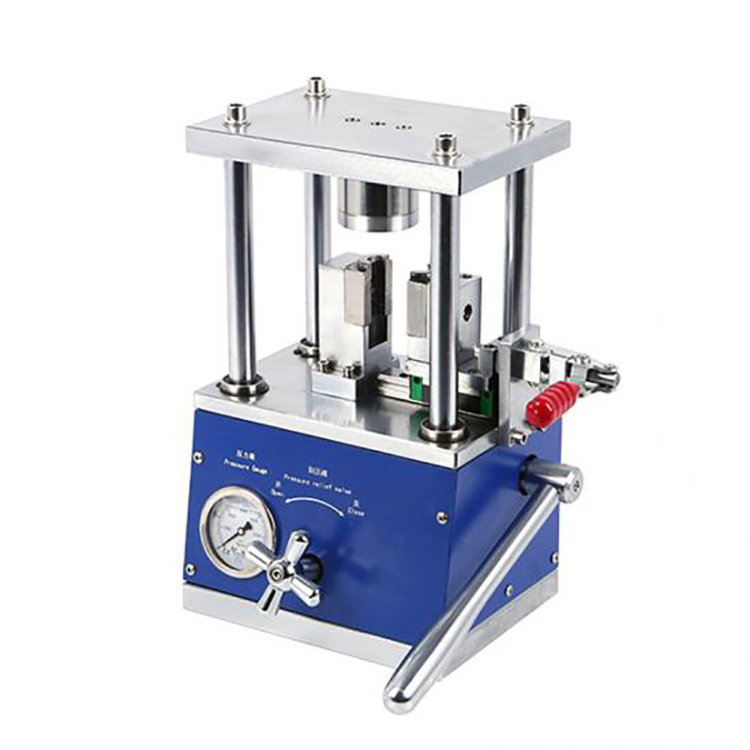

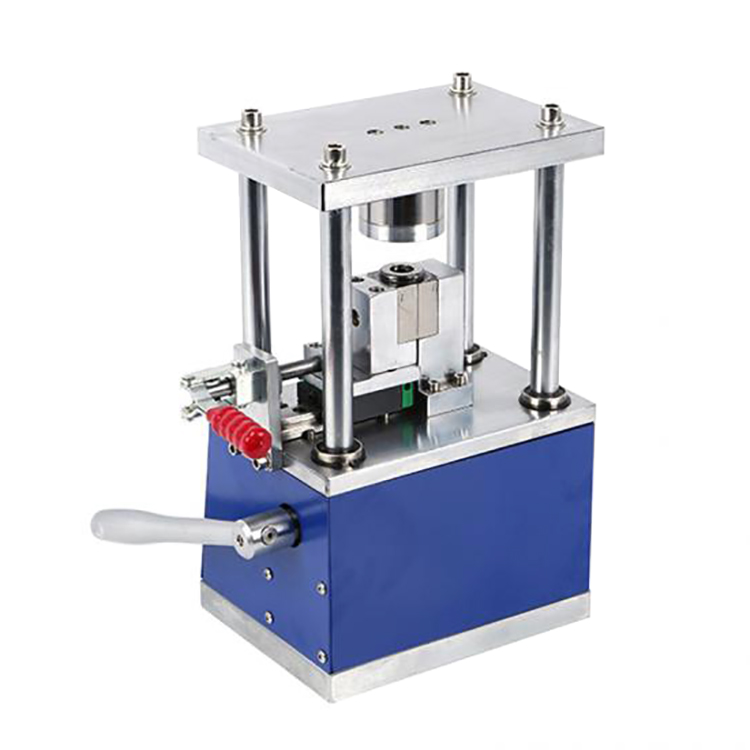

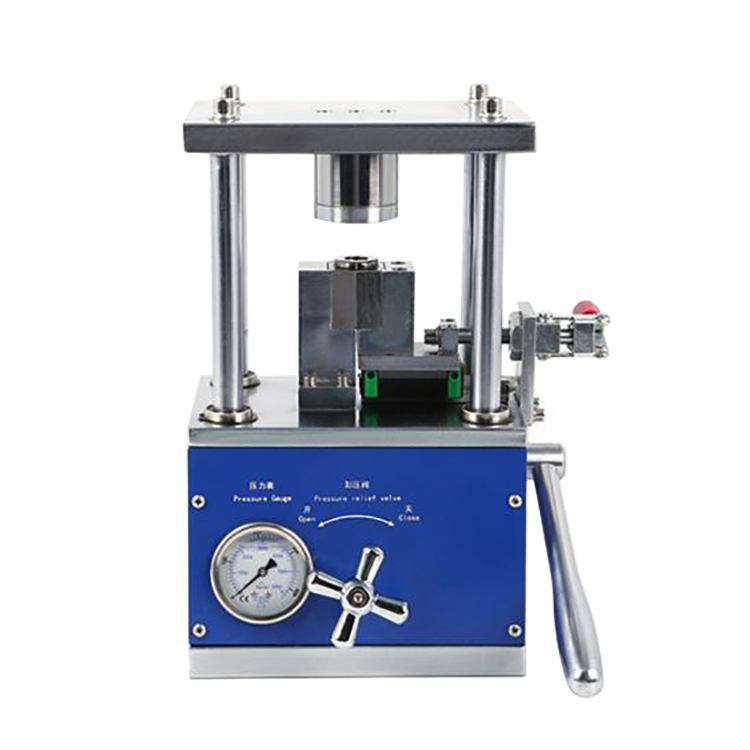

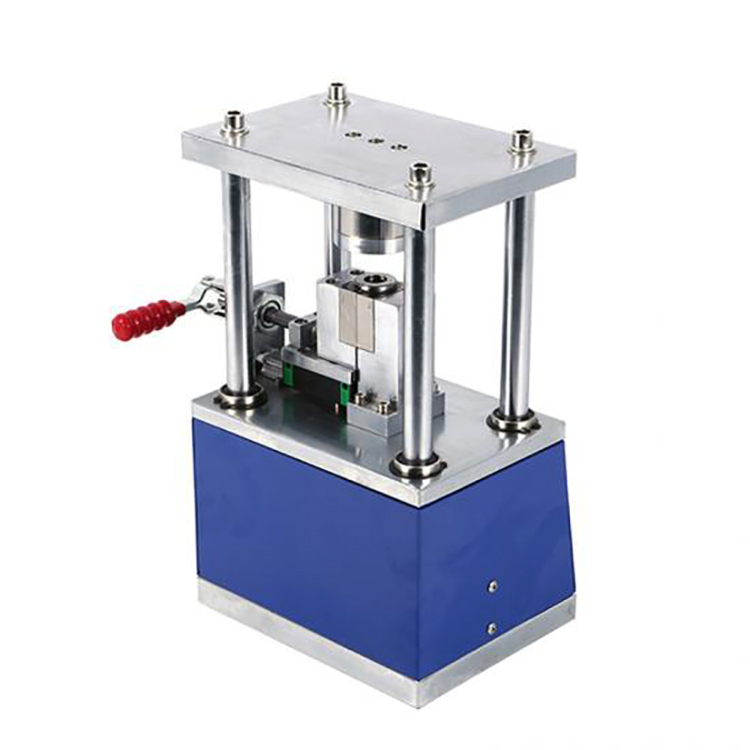

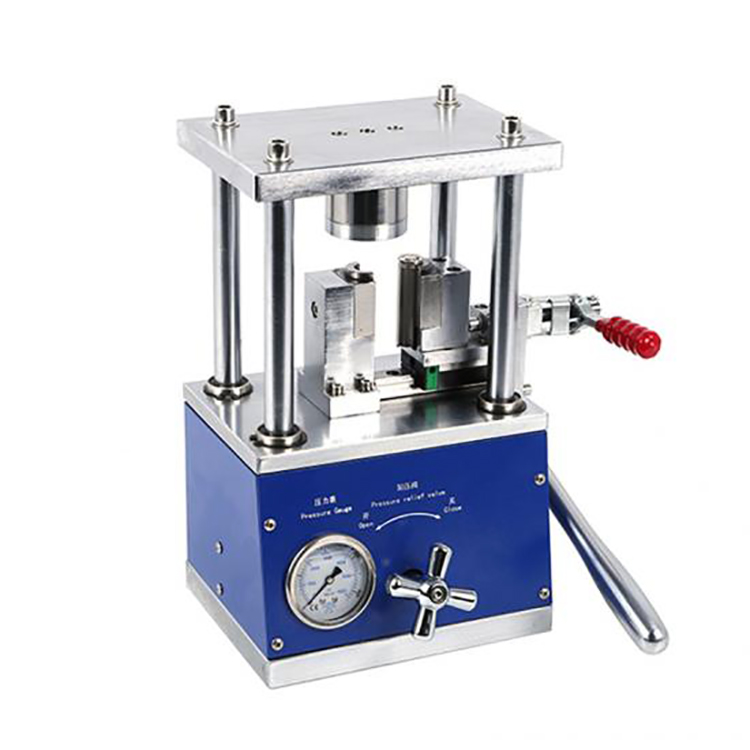

The JT-HSM650 cylindrical cell sealing machine is a compact hydraulic crimping machine for sealing all types of cylinder cases in battery R&D labs.
The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with a safety protection feature allows customers to master the sealing procedure within 5 minutes.
The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure
Specification
Model | Hydraulic Crimping / Sealing Machine JT-HSM650 |
Driving Force | Manual hydraulic pressing up to 5T |

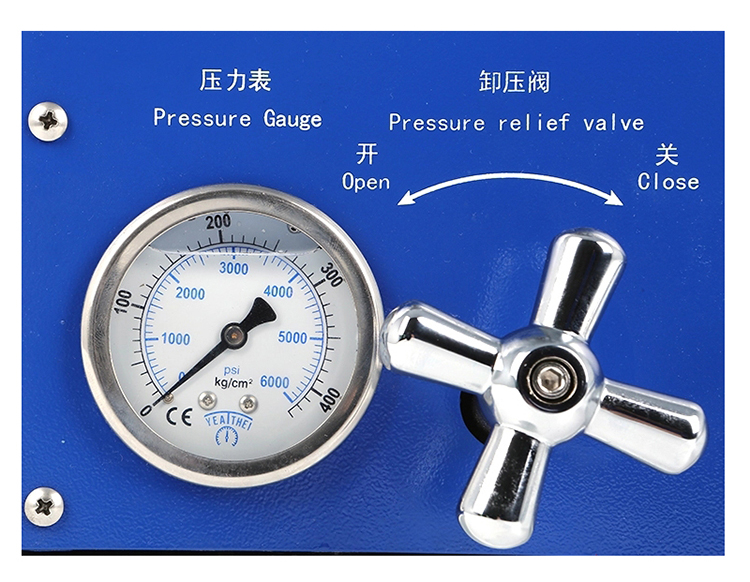

Pressure Gauge | 0-3500 psi (0-250 kg/cm^2) |
Body | Stainless Steel |

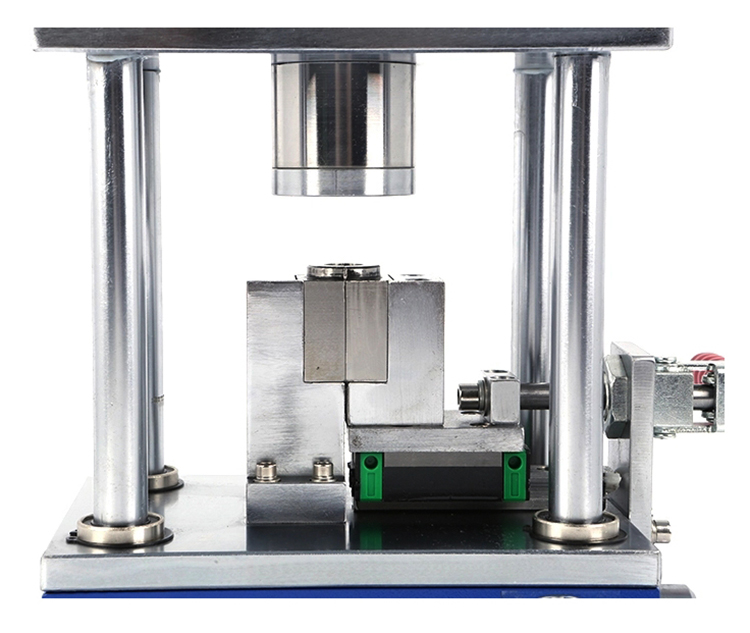

Crimping Dies | Six standard die for your choice: CR123 /18650 / 26650 / 32650 / AA /AAA |
Warranty | One year limited with lifetime support |
Product Dimensions | 330mm(L) x 240mm(W) x 400mm(H) |
Application Notes | Customized die for other cylindrical cell types is available upon request
It is necessary to groove the opening end of the cylindrical case by using the grooving machine before sealing the cap
Each type of cylinder cell can only be sealed specifically by a certain model of equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding crimping die of each cylinder cell type |
Net Weight | 28kg |
Product Image
