Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-CBS-1
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This Lab Manual Crimper is a compact hydraulic crimping machine for sealing all types of cylinder cases for battery R&D research.
It is mainly used in the sample production of laboratory battery material research and development for the scientific research sealing of cylindrical batteries and cylindrical capacitors, and can also be used for small batch trial production in factories.
Features
1. Built-in safety overflow oil valve, the pressure can be adjusted according to the needs, and the upper limit of the pressure can be set at the same time, to prevent the damage caused by the excessive pressure caused by the misoperation, and to ensure the safety of the machine.
2. Built-in pressure gauge can observe and accurately control the size of the sealing pressure.
3. Using hydraulic drive, the pressure can reach 8T, the battery seal has no vibration and no leakage.
4. Especially designed hydraulic structure, labor-saving operation.
5. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
6. Small size, easy to operate, can be placed in a glove box for operation.
7. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
Specification
Model No. | JT-CBS-1 |
| The operating force of the hand rocker is less than 6kg. | |
| The pressure gauge of the normal cylindrical battery packaging pressure is about 80～100kg/cm2. This machine has been adjusted before leaving the factory. If you need more pressure (pressure 200kg/cm2 about 8 tons), please consult the manufacturer. It can be adjusted later. | |
| Mold material imported from Japan. | |
Structural material: high-strength chromium steel, the surface will never rust after environmental protection plating and spraying. | |
| Dimensions | 240mm X195mm X265mm |
| Weight | 50kg |

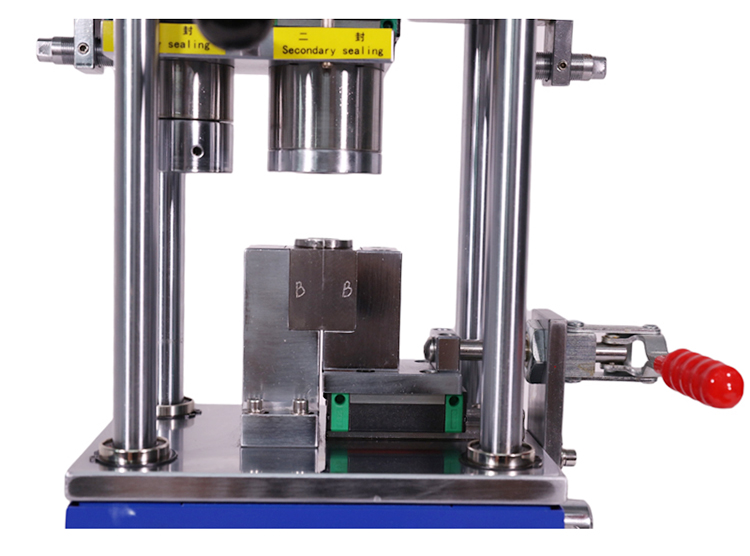

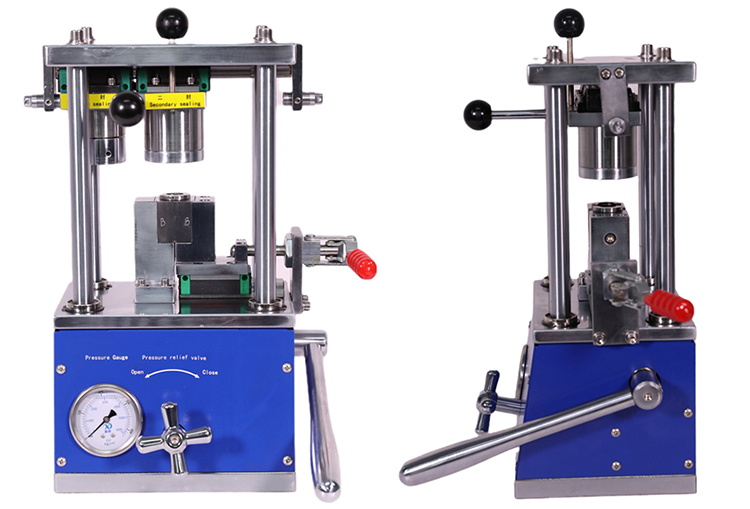

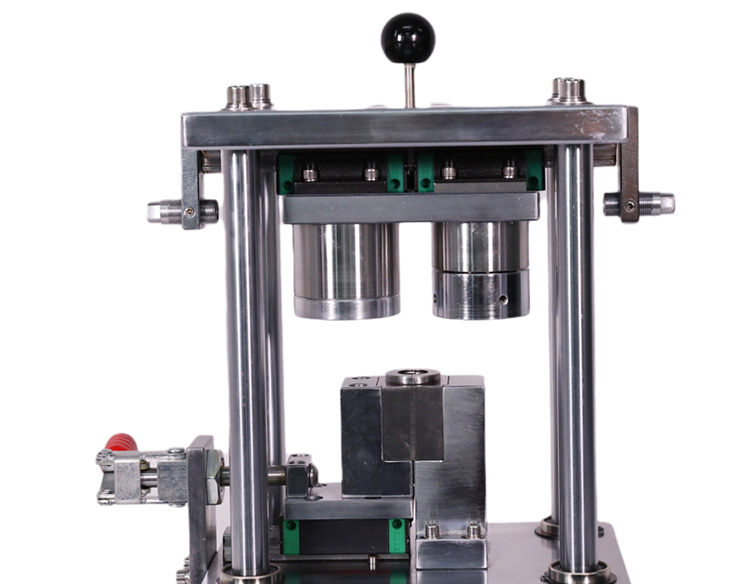

Product Image
