Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-MSK530
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
The JT-MSK-530 cylinder cell disassemble is a compact manually-operated machine for disassembling cylinder cases in the battery R&D lab.
The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling.
Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes.
Specification
| Supply Voltage | DC24V (a 110~240VAC to 24VCD power adapter is included) |
| Power | 100W |
| Slicing Motor Speed | 1000 rpm |
| Die Rotating Speed | 1000 rpm |
| Micrometer Accuracy | 0.05mm |

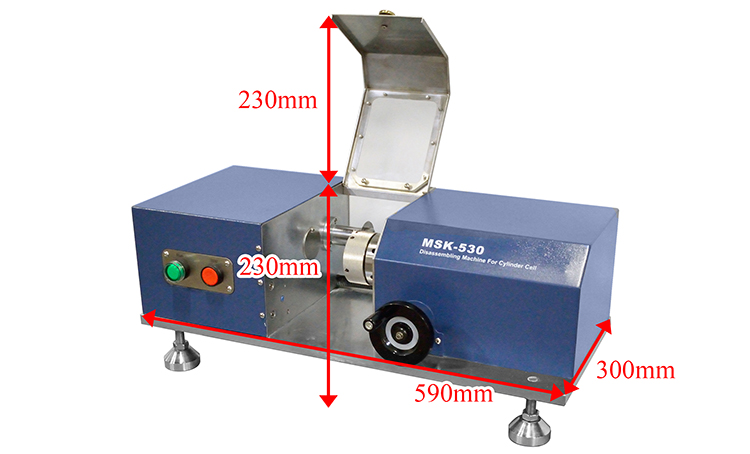

| Product Dimensions | 590(L) x 300(W) x 230 (H) Lid Closed, mm 590(L) x 300(W) x 460 (H) Lid Open, mm |
| Accessories | Standard disassembling die for 18650 cases. 5 pcs carbide cutting blades are included. ( click picture left to order spare ) Additional die sets are available for 26650, 32650 as options. Cutter for 4680 - 46120 is available upon request at the extra cost Additional blade and pin-wrench for changing blades are available upon request. |
| Net Weight | 35 kg |
| Shipping Weight & Dimensions | 100 lbs; 40"x20"x20" |
| Warranty | One year limited with lifetime support |
| Attention | Considering the best interest of the blade's service life, low feeding speed is preferred. Normally, 45 seconds is needed to cut through the cylinder casing. |

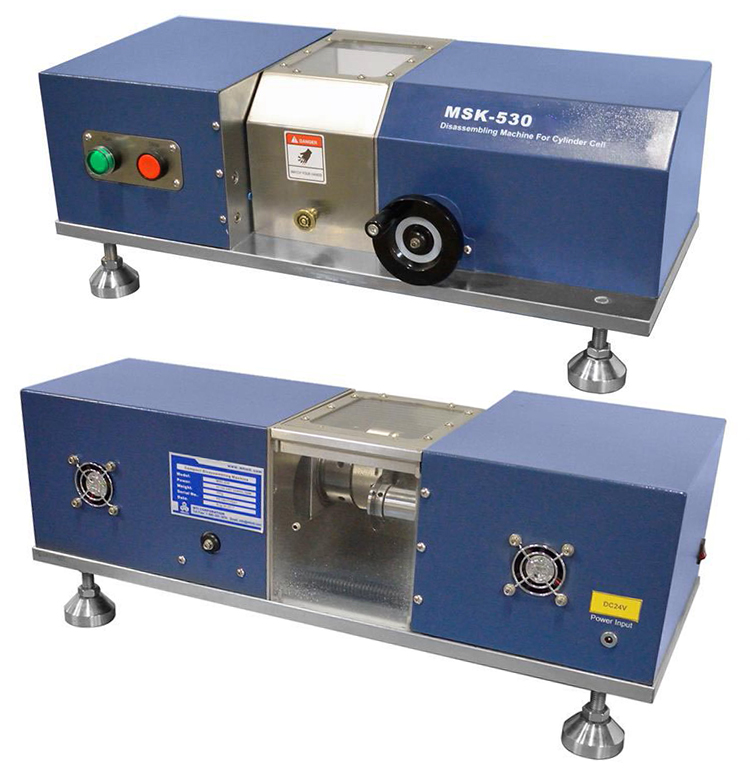

Product Image
