Coin Cell Simulator For Swagelok Type Cells Split Test Cell for Lithium Battery
The Swagelok-type cells are specially designed to facilitate lithium-ion battery research. The Swagelok-type cells are made of 5 parts. Small size, Simple operation.
Item No.: JT-EQ-SC-26650
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

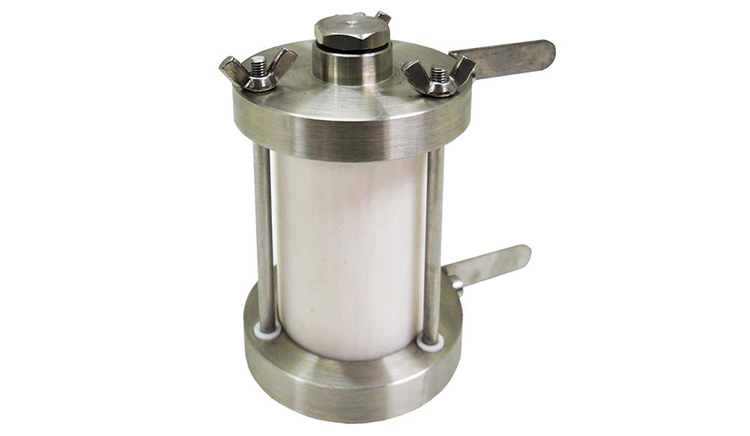

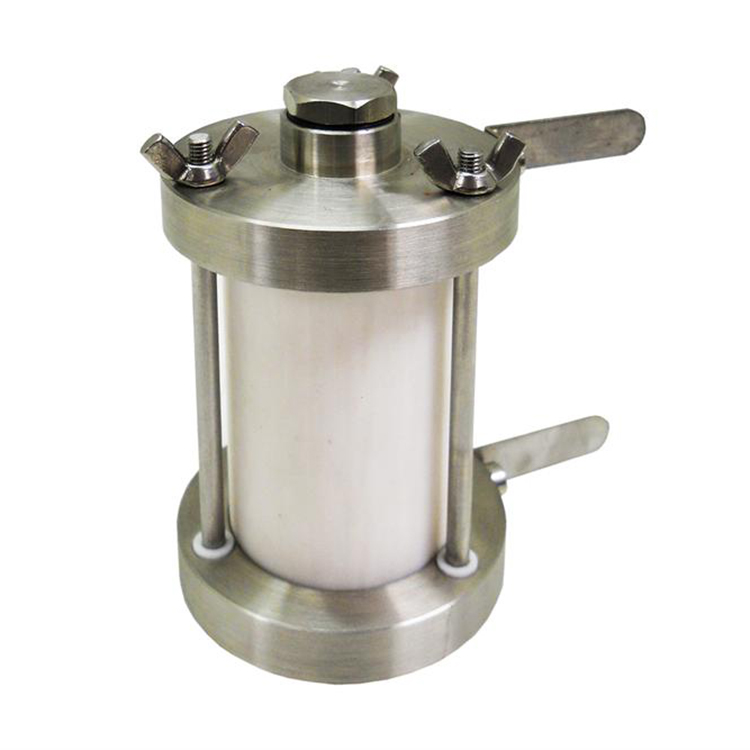

EQ-SC-26650 Split test Cell is designed for researching the materials of cylindrical cells with the option of 2665, 21700, 33135 at low cost. Its detachable design allows you to test the cycling behavior as well as structural changes of electrodes easily and quickly.
Design
1. Easy assembling by only four cap mounting screws
2. Easy to separate after a test for cleaning
3. Space-saving, compact design allows you to put it into the glove box

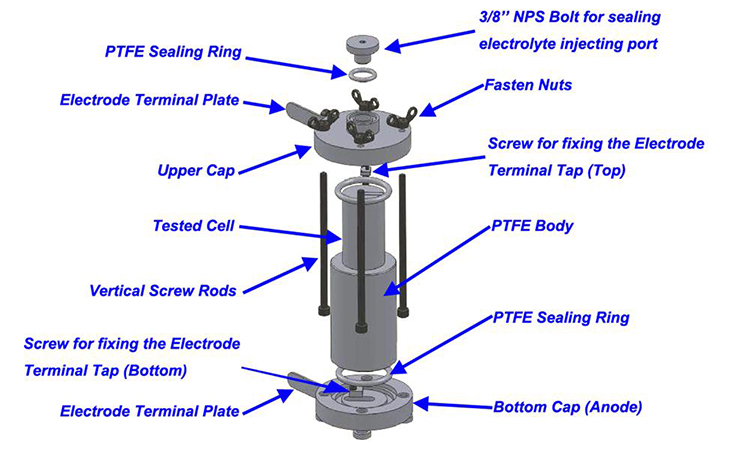

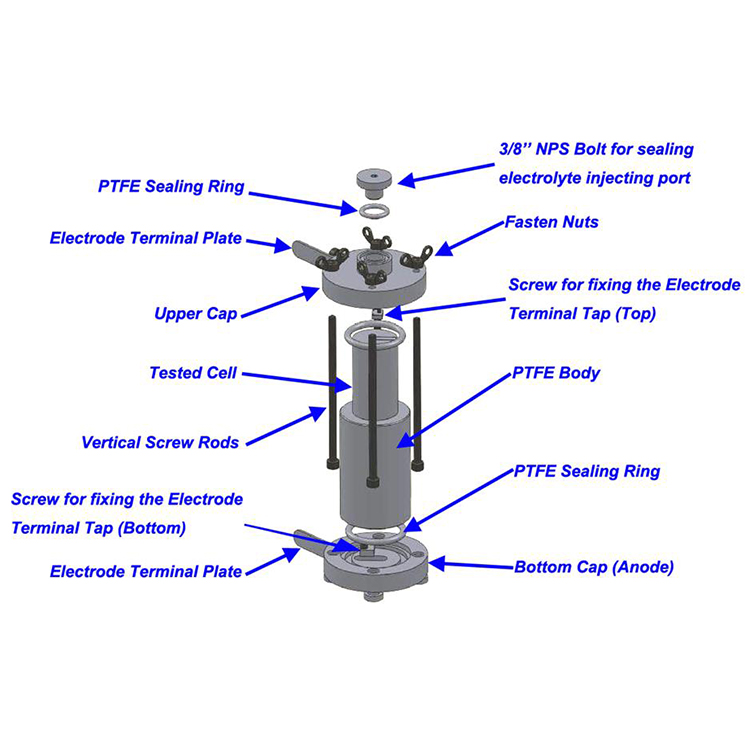

4. Click the image left for the detailed illustration of this cell
Materials
- Caps: Full Stainless steel end caps
- Body: Electrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC
- O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

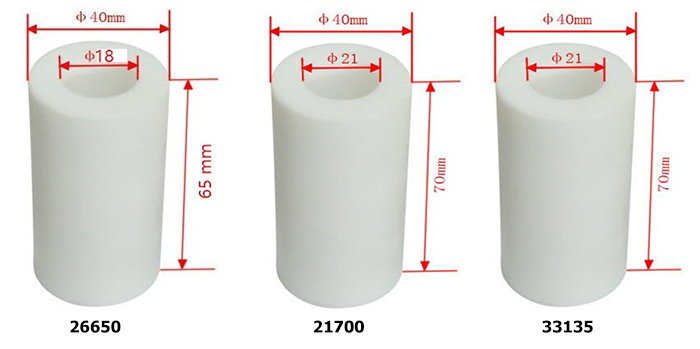

Dimensions
| Type | 26650 | 21700 | 33135 | |
| Dimensions | ID | 26mm | 21mm | 33mm |
| Height | 65mm | 70mm | 135mm | |
