Laboratory Electric Li-Ion Battery Electrode Roller Press Machine With Heating Function
The heating electric vertical roller press machine is mainly suitable for the electric rolling of battery materials in the laboratory
Item No.: JT-STC-3E
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

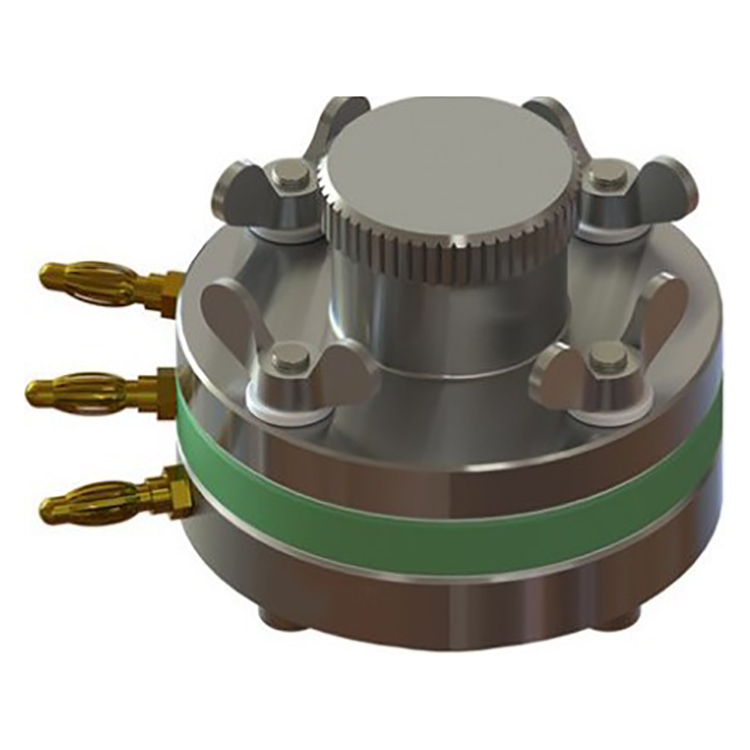

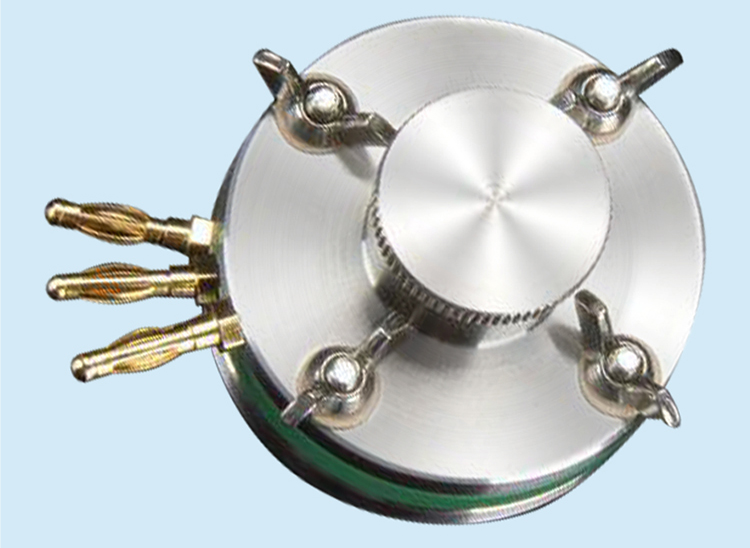

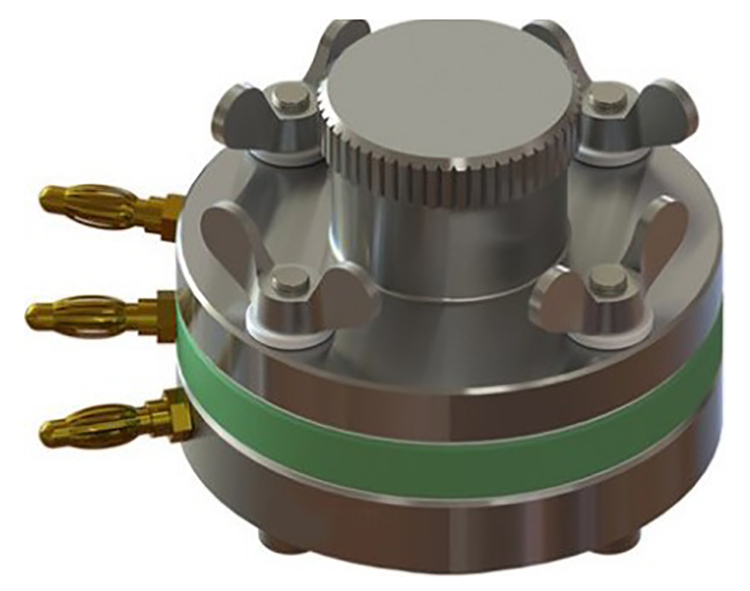

Coin Cell Three Electrode Split Test Cell/Splitting Able Cell Test For Lab Research
This Three Electrode Split Test Cell is designed for the R&D of rechargeable battery materials by testing three electrodes.
It is designed to test various electrodes easily and quickly by providing the user with a structure to simulate assembled coin cells without the need to crimp actual coin cell cases.
Two sides of the test cell connect to both electrodes (the anode and cathode), with the middle being connected to the reference electrode which can be used for monitoring voltage variations of the two electrodes. This test cell can accept 15 mm diameter electrodes and 24mm separators.
Features
1. Seal the top of the form with an O-ring seal
2. Adopt O - ring seal
3. Import seal ring, high-temperature resistance 230 degrees
4. can be adjusted by the spring tension, adapt to the various thicknesses of the electrode
5. Easy to install before the test, easy to disassemble after the test, simulation button battery assembly structure, convenient and fast assembly, test various electrodes.
6. Can be placed in high and low-temperature box test, -10℃~100℃
7. Small volume, put into the glove box convenient
8. Can be placed in high and low-temperature box test, -10℃~100℃
9. Good repeatability
Specification
| Main size | 58mm*50mm in diameter (excluding the side lantern plug) |
| Net weight | About 524g (full weight, including spare parts: 532.5g) |
| Pole plate diameter | 16mm |
| Material | SUS316 |
Product Detail
